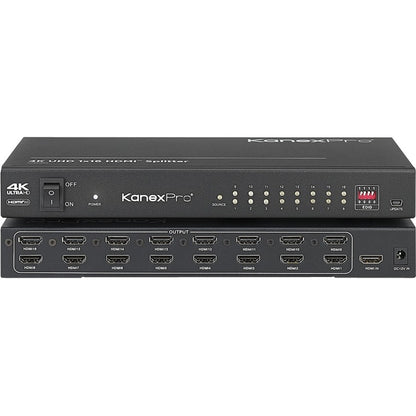

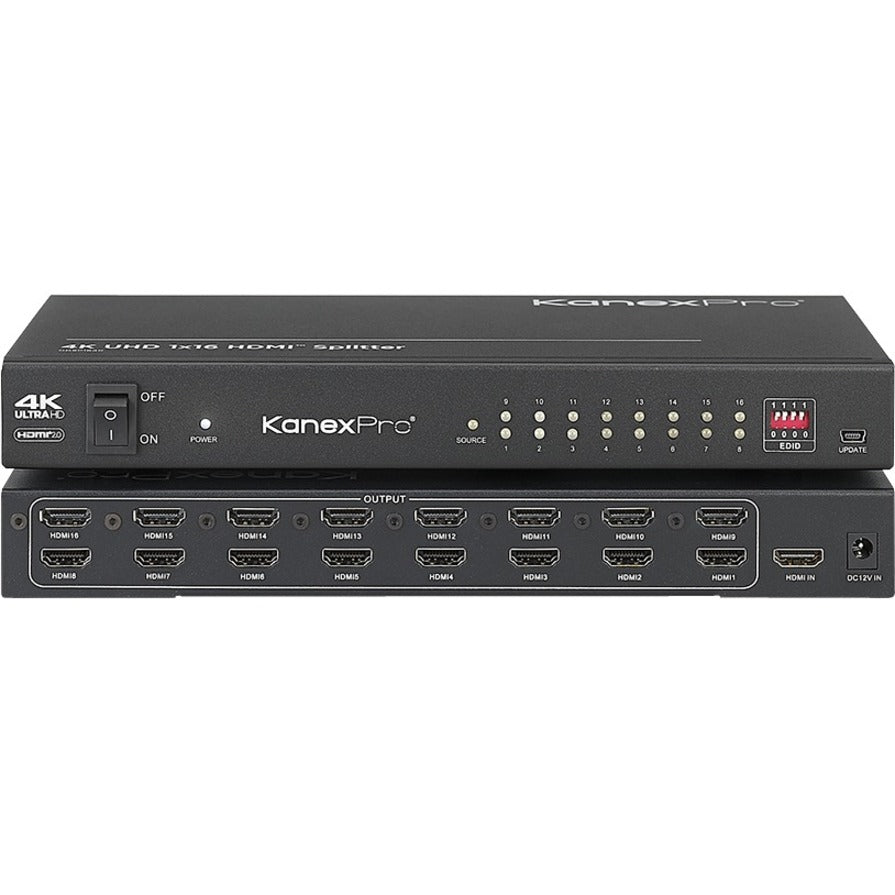

The KanexPro 1x16 HDMI Distribution Amplifier is an installer-friendly lightweight HDMI splitter that distributes one HDMI input into sixteen identical outputs supporting uncompressed 4K UHD resolutions. The conforming outputs also have the ability of buffering and amplifying all the HDMI signals. It can achieve long distance transmission of HDMI signals up to 50 feet (15 meters) or can be combined with our HDBaseT™ Extenders to route distances up to 330 feet (100 meters). It accepts computer resolutions up to WUXGA (1920x1200 @ 60Hz) including HDTV 1080p/60 and 4K/60 with built-in EDID management.

The 1x16 DA fully conforms to the latest High Speed HDMI 2.0 specifications with HDCP 2.2. This professional HDMI splitter is optimized for routing HDMI video and embedded multi-channel digital audio to multiple display environments such as digital signage hospitality markets airports shopping malls and medical imaging.

Features:

• Distribute 4K HDMI video and audio signals to up to sixteen 4K displays
• Supports full HD 1080p (1920 x 1080@60Hz) & 4K UHD
• Conforms to High Speed HDMI 2.0 specifications
• HDMI Bandwidth up to 18 Gbps
• Supports Dolby Digital DTS-HD and Dolby True HD audio
• HDCP 2.2 compliant
• Built-in Smart EDID Control
• Front-panel LED's for input/ output signal presence
• 5VDC external power supply included

• 4K UHD 1x16 HDMI Distribution Amplifier w/ HDCP2.2
• External Power Supply
