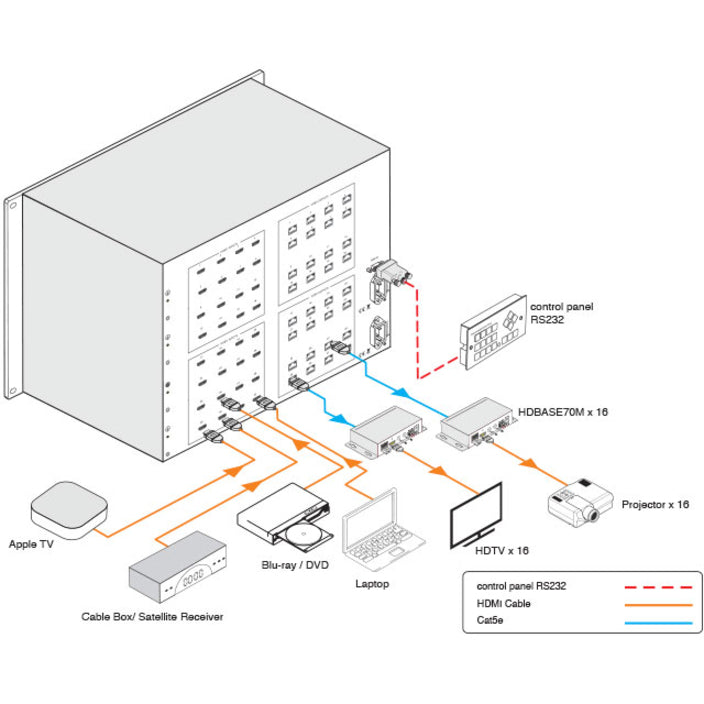

The KanexPro HDMMX6464-4K is a 64 input by 64 output modular matrix switcher chassis with 16 input slots and 16 output slots; each modular input or output card supports up to 16 device connections. As an add-on to front panel control the HDMMX6464-4K can be controlled via IR RS232 or TCP/IP connections.

The optional modular input cards include the following connections: HDMI DVI VGA HDBaseT (with RS232 and bi-directional wide-band IR) Fiber Optic and analog video with digital scaling via HD15 (VGA-UXGA RGBHV RGBS RGsB RsGsBs component video S-video and composite video). The modular output cards include the following connections: HDMI SDI DVI VGA HDBaseT and Fiber Optic.

Stereo audio embedding is supported on the HDMI input cards to allow analog audio to be inserted into the digital signal. Stereo audio can also be de-embedded using the HDMI or HDBaseT output cards. Advanced EDID management restricts sources to output only stereo audio while emulating the native video data from the attached displays. This system allows analog audio to be switched with the paired digital video eliminating the requirement for an additional audio matrix switcher.

The clear button caps provide readable text on the front panel which can be customized for each installation. Control via IR RS232 and TCP/IP provide a wide range of options for third party control systems. Ten programmable presets provide an efficient means of configuring the video and audio distribution for common usage patterns.

Applications

Ideal for various large-scale commercial applications such as control centers digital signage smart lecture halls medical and government facilities and residential environments where 4K UHD signal distribution and audio is critical.

Features:

• Customizable 64x64 modular switch serving various AV connections
• 4K UHD resolution via HDMI & HDBaseT
• Supported connections: VGA SDI DVI HDMI HDBaseT & Fiber optic
• High-bandwidth up to 10.2 Gbps
• Add I/O modular cards based on expandability
• Cross-point ultra-switching
• Advanced HDCP & EDID management
• Hot swappable design
• Clear illuminated buttons
• Control via IR Ethernet & RS-232
• 10 global presets
• Front panel LCD for switching & status
• Front panel security lock
• 10 RU rack-mountable aluminum enclosure
• Dual-Internal power supply (100Volt~240Volt AC 50/60Hz)
• Backed by KanexPro 3-Year full parts & labor warranty

• 4K UHD 64x64 Modular Matrix Switcher
• Installation Guide
• IR Remote
• RS232 Cable
• Power Cable
• 4 x Modular Metal Blank
• 4 x Rubber Feet
