• KanexPro NetworkAV 120M Receiver
    KanexPro NetworkAV 120M Receiver
  • KanexPro NetworkAV 120M Receiver
1 2

KanexPro NetworkAV 120M Receiver

KanexPro NetworkAV 120M Receiver

SKU: 1040665775      MFR: KanexPro

GTIN: 813982021181

Product Description

KanexPro NetworkAV 120M Receiver - 1 Output Device - 393.70 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Rack-mountable

Manufacturer : KanexPro

Manufacturer Part No : EXT-AVIP120MRX

Features

  • AV over IP Decoder only
  • Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
  • Supports Point-to-Point Point-to-Many and Many-to-Many network configurations
  • HDCP compliant
  • Can be cascaded for many layers by adding 10G more Ethernet switches
  • With wideband IR (38-56kHz) control to the source
  • Support TCP/IP protocol
  • Metal enclosure built with mounting ears
  • 5 V DC power supplies included

Product Details

Product TypeVideo Extender Receiver
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance393.70 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1

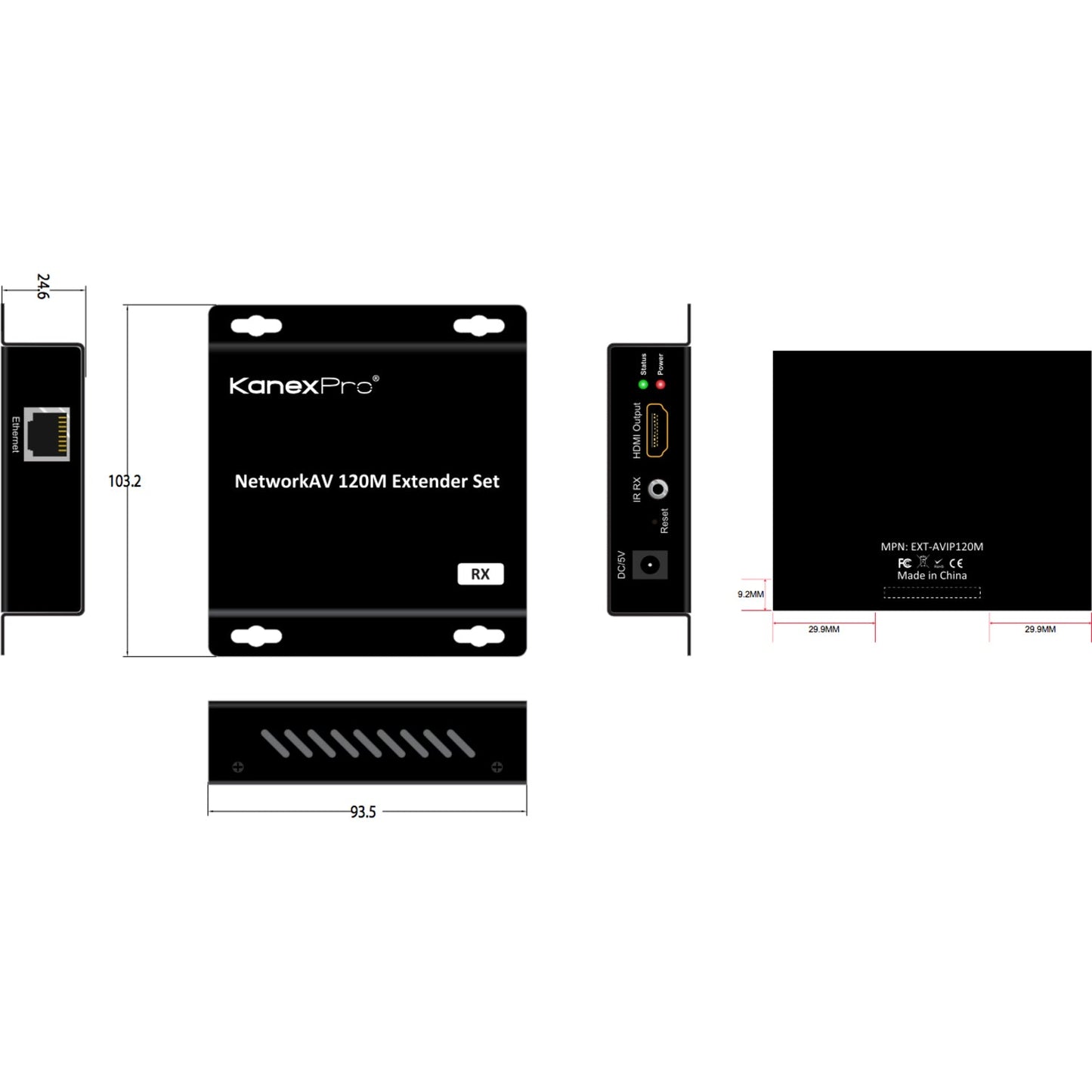

Receiver Height0.97"
Receiver Width3.68"
Receiver Depth4.07"
Receiver Weight (Approximate)7.76 oz
Connectivity TechnologyWired
Brand NameKanexPro
Form FactorRack-mountable
ManufacturerKanexPro
Product NameNetworkAV 120M Receiver
Product LineNetworkAV
Manufacturer Part NumberEXT-AVIP120MRX
Manufacturer Website Addresshttp://www.kanexpro.com
Marketing Information

The KanexPro NetworkAV 120M Receiver is a simple and cost-effective decoder (receiver) which lets you extend full HD 1080p/60 HDMI signals from the encoder remotely over IP up to 120 meters. The IP Decoder can be used as end to join multitude of displays when connected on the IP network. This HDCP compliant decoder can also be cascaded or daisy-chained to many layers by adding a 10G Ethernet switches supporting TCP/IP protocols.

Applications:

Ideal for various applications such as digital signage display signage and lobby commercial AV systems classroom projection systems and corporate video sharing & training
Package Contents
  • NetworkAV 120M Receiver
  • 5 V DC Power Supply
Limited Warranty3 Year
Product FamilyNetworkAV
View full details
$170.99 USD
$170.99
Sale Sold out

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17


Update


Shipping calculated at checkout.

KanexPro NetworkAV 120M Receiver - 1 Output Device - 393.70 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Rack-mountable

Manufacturer : KanexPro

Manufacturer Part No : EXT-AVIP120MRX

Features

  • AV over IP Decoder only
  • Extends 1080p HDMI signals up to 120m over a single UTP CATx cable
  • Supports Point-to-Point Point-to-Many and Many-to-Many network configurations
  • HDCP compliant
  • Can be cascaded for many layers by adding 10G more Ethernet switches
  • With wideband IR (38-56kHz) control to the source
  • Support TCP/IP protocol
  • Metal enclosure built with mounting ears
  • 5 V DC power supplies included

Product Details

Product TypeVideo Extender Receiver
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance393.70 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height0.97"
Receiver Width3.68"
Receiver Depth4.07"
Receiver Weight (Approximate)7.76 oz
Connectivity TechnologyWired
Brand NameKanexPro
Form FactorRack-mountable
ManufacturerKanexPro
Product NameNetworkAV 120M Receiver
Product LineNetworkAV
Manufacturer Part NumberEXT-AVIP120MRX
Manufacturer Website Addresshttp://www.kanexpro.com
Marketing Information

The KanexPro NetworkAV 120M Receiver is a simple and cost-effective decoder (receiver) which lets you extend full HD 1080p/60 HDMI signals from the encoder remotely over IP up to 120 meters. The IP Decoder can be used as end to join multitude of displays when connected on the IP network. This HDCP compliant decoder can also be cascaded or daisy-chained to many layers by adding a 10G Ethernet switches supporting TCP/IP protocols.

Applications:

Ideal for various applications such as digital signage display signage and lobby commercial AV systems classroom projection systems and corporate video sharing & training
Package Contents
  • NetworkAV 120M Receiver
  • 5 V DC Power Supply
Limited Warranty3 Year
Product FamilyNetworkAV
