• KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set
    KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set
  • KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set
1 2

KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set

KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set

SKU: 1058754237      MFR: KanexPro

GTIN: 813982021976

Product Description

KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set - 1 Input Device - 1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K UHD - Twisted Pair - Category 6

Manufacturer : KanexPro

Manufacturer Part No : WP-EXTHDBTKIT

Features

  • Single Gang One HDMI Input wall plate over HDBaseT & Rx Set
  • Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
  • Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
  • Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
  • Digital Audio Support up to 7.1 channels of HD audio
  • HDCP 2.2 /1.4 Compliant
  • Bi-directional IR & RS-232C
  • Remote power support thru PoC (Either from Tx or Rx)
  • POC Power consumption is less than 10W
  • Simple point-to point transmission over CAT5e/6

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K UHD
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height1.18"
Transmitter Width4.07"
Transmitter Depth1.81"
Receiver Height1.18"
Receiver Width4.07"
Receiver Depth1.81"
Transmitter Weight (Approximate)5.75 oz
Receiver Weight (Approximate)5.75 oz
ColorBlack
Connectivity TechnologyWired
Brand NameKanexPro
ManufacturerKanexPro
Product ModelWP-EXTHDBTKIT
Product NameSingle HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set
Manufacturer Part NumberWP-EXTHDBTKIT
Manufacturer Website Addresshttp://www.kanexpro.com
Marketing Information

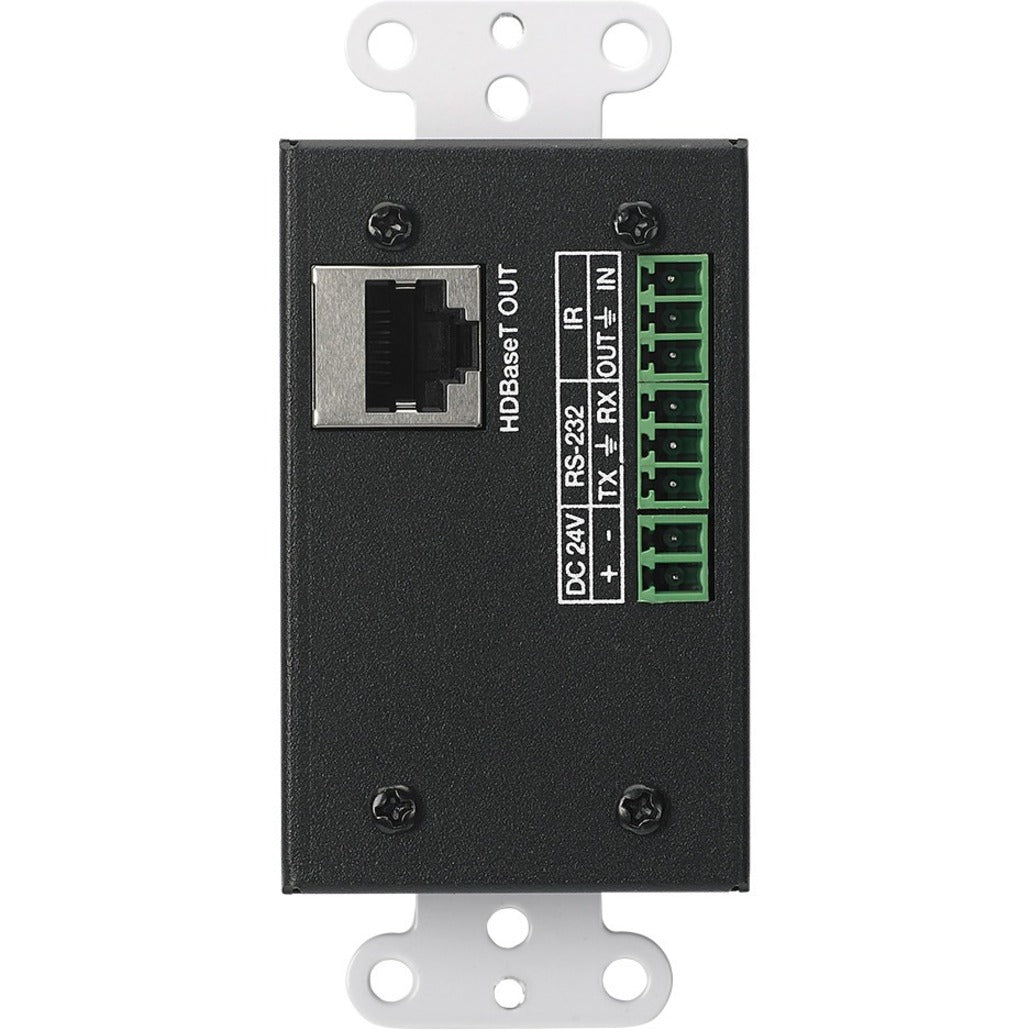

The KanexPro WP-EXTHDBTKIT is a US Decora style single gang HDMI 2.0® wall plate transmitter - receiver set designed for connecting one HDMI device such as a laptop Blu-ray or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port and the receiver is included in the box. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.

PoC & Control

The wall plate transmitter supports PoC - power over cable requiring only power supply from the Receiver. Additional receivers can be purchased separately part# EXT-WP70POC. It also supports bi-directional IR control and RS-232 control for devices to and from the display.

Applications:

Ideal for use with court rooms classrooms conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI source device. This single-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling.
Package Contents
  • 1 x 18G HDMI Wall Plate Transmitter
  • 1 x 18G HDBaseT Receiver
  • 1 x User Manual
Limited Warranty3 Year
