Kramer 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA

Kramer 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA

SKU: 1046083163      MFR: Kramer Electronics LTD

GTIN: 7291063084707

Product Description

Kramer 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA - 1 Input Device - 2 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x USB - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : 10-8048901190

Features

  • 1:2 HDMI extender distributor
  • Up to 70m (230ft) at 1080p
  • Up to 40m (130ft) at 4K (4:2:0)
  • Up to 4K@60Hz (4:2:0) 24bpp video resolution
  • HDMI 2.0 HDCP 1.4 HDBaseT 1.0 compliance
  • Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
  • Audio - E

Product Details

Product TypeVideo Extender Transceiver
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Maximum Operating Distance229.66 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports1
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported2
Number of Input Devices Supported1
Transmitter Height1"
Transmitter Width7.38"
Transmitter Depth4.53"
Transmitter Weight (Approximate)1.10 lb
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
ManufacturerKramer Electronics LTD
Product ModelVM-2HDT
Product Name1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA
Product LineMegaTOOLS
Manufacturer Part Number10-8048901190
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

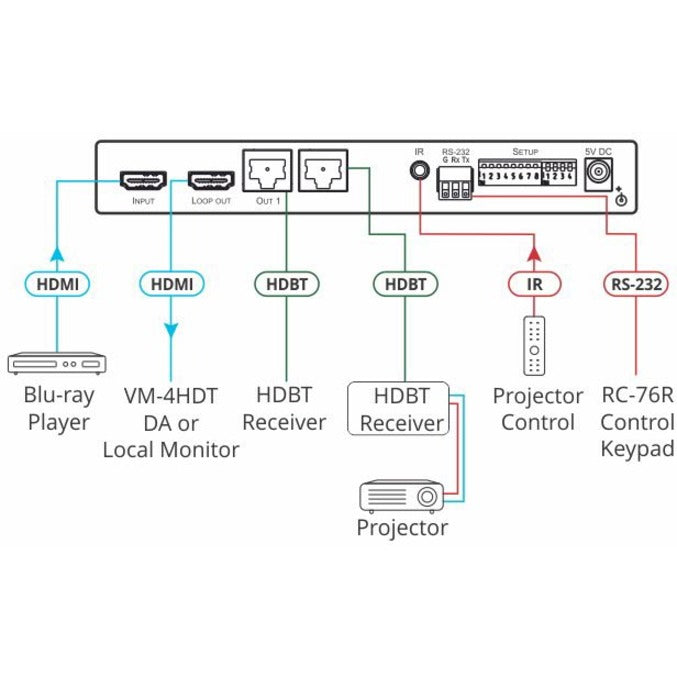

VM-2HDT is a high-quality long-reach 1:2 HDBaseT extender distributor that takes one HDMI input with IR and RS-232 control signals converts it to an HDBaseT extension line signal and distributes it to 2 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP-580R. VM-2HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0) and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain.

  • High Performance Distribution - Distributes one HDMI signal to two long-reach HDBaseT extension outputs with up to 4K video resolution and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
  • Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach and even further for lower video resolutions.
  • Standard Compatibility - Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal supporting Deep Color x.v.Color™ Lip Sync 7.1 PCM Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
  • User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting or side-by-side rack mounting.

Applications

  • Distribution of native extended AV signals in large rooms
  • Presentation and multimedia rich applications in large boardrooms and meeting rooms
  • Applicable for corporate education hospitality government market segments
Package Contents
  • 1:2+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA
  • Power Supply
Limited Warranty7 Year
Product FamilyMegaTOOLS
Serial PortYes
