Kramer 1:2 4K60 4:2:0 Long-Reach HDBaseT DA
Kramer 1:2 4K60 4:2:0 Long-Reach HDBaseT DA
SKU: 1049538022 MFR: Kramer Electronics LTD
GTIN: 7291063076580
Product Description
Kramer 1:2 4K60 4:2:0 Long-Reach HDBaseT DA - 4096 x 2160 - 229.66 ft Maximum Operating Distance - Network (RJ-45)
Manufacturer : Kramer Electronics LTD
Manufacturer Part No : 10-80444090
Features
- 1:2 line extender distributor
- Reach - Up to 2 x 40m (130ft) at 4K (4:2:0)
- Video Resolution - Up to 4K (4:2:0) 24bpp
- Compliance - HDMI 2.0 HDCP 1.4 HDBaseT 1.0
- Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
- Audio - E
Product Details
VM-2DT is a high-quality long-reach 4K@60Hz (4:2:0) HDBaseT distributor that takes one long-reach HDBaseT input equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. The VM-2DT distributes native long-reach HDBaseT signals with up to 4K video resolution along with their re-extension over long-reach HDBaseT to feature an integrated extender distributor product.
- High Performance Extender Distributor - High-quality professional 1:2 distribution of native long-reach HDBaseT signals for deploying mid-way between AV source and multiple remote displays and gaining extra long-reach extension. It is coupled with both sides input and output extension of maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 40m (130ft) long-reach over CAT copper cable and even further reach for lower HD video resolution. Extender distributor is standard capable of being connected to any market-available HDBaseT compliant extending products.
- Cables - For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/VM-2DT.
- HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal supporting deep color x.v.Color™ lip sync 7.1 PCM Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- LED Indicators - Status indicators for HDBaseT input and output connected signals and power indicator for ease of maintenance and troubleshooting.
- Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting or side-by-side rack mounting.
- 1:2 4K60 4:2:0 Long-Reach HDBaseT DA
- Power Supply
Out Of Stock
Update
Couldn't load pickup availability

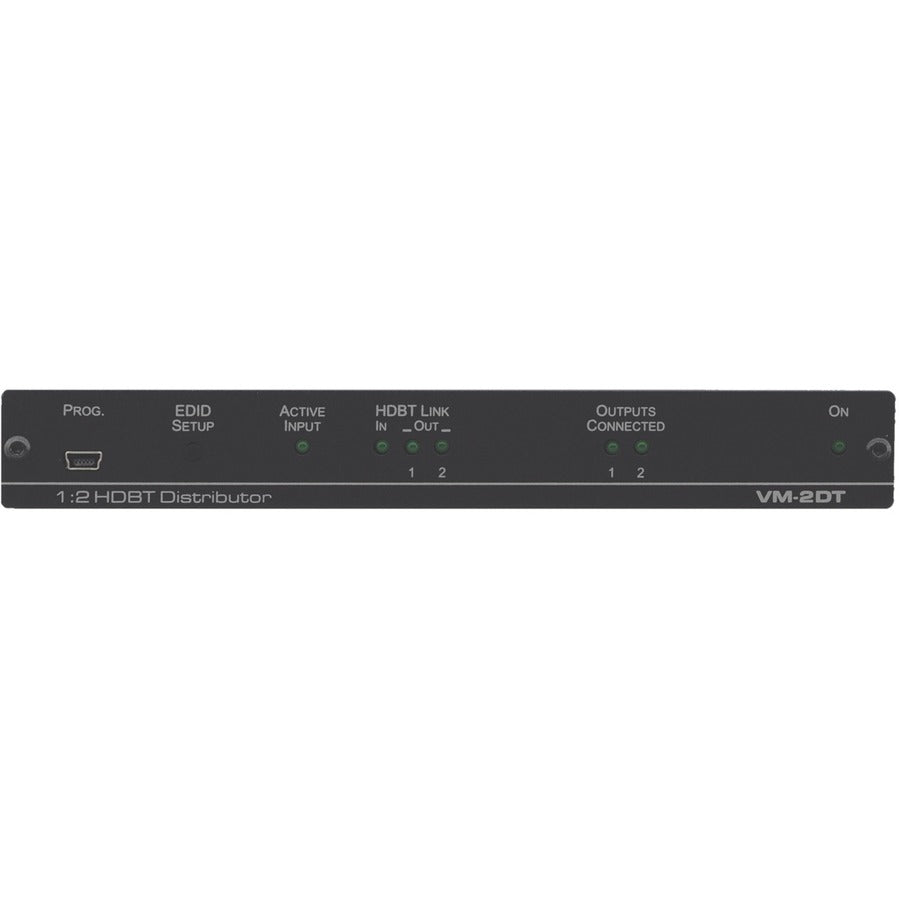

![Kramer 1:2 4K60 4:2:0 Long-Reach HDBaseT DA](http://tekmentum.com/cdn/shop/files/1049538022.jpg?v=1696850595&width=1445)
Kramer 1:2 4K60 4:2:0 Long-Reach HDBaseT DA - 4096 x 2160 - 229.66 ft Maximum Operating Distance - Network (RJ-45)
Manufacturer : Kramer Electronics LTD
Manufacturer Part No : 10-80444090
Features
- 1:2 line extender distributor
- Reach - Up to 2 x 40m (130ft) at 4K (4:2:0)
- Video Resolution - Up to 4K (4:2:0) 24bpp
- Compliance - HDMI 2.0 HDCP 1.4 HDBaseT 1.0
- Size - MegaTOOLS® - Mount 2 units side-by-side in a 1U rack space with the optional RK-T2B rack adapter.
- Audio - E
Product Details
VM-2DT is a high-quality long-reach 4K@60Hz (4:2:0) HDBaseT distributor that takes one long-reach HDBaseT input equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. The VM-2DT distributes native long-reach HDBaseT signals with up to 4K video resolution along with their re-extension over long-reach HDBaseT to feature an integrated extender distributor product.
- High Performance Extender Distributor - High-quality professional 1:2 distribution of native long-reach HDBaseT signals for deploying mid-way between AV source and multiple remote displays and gaining extra long-reach extension. It is coupled with both sides input and output extension of maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 40m (130ft) long-reach over CAT copper cable and even further reach for lower HD video resolution. Extender distributor is standard capable of being connected to any market-available HDBaseT compliant extending products.
- Cables - For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/VM-2DT.
- HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal supporting deep color x.v.Color™ lip sync 7.1 PCM Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- LED Indicators - Status indicators for HDBaseT input and output connected signals and power indicator for ease of maintenance and troubleshooting.
- Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting or side-by-side rack mounting.
- 1:2 4K60 4:2:0 Long-Reach HDBaseT DA
- Power Supply
