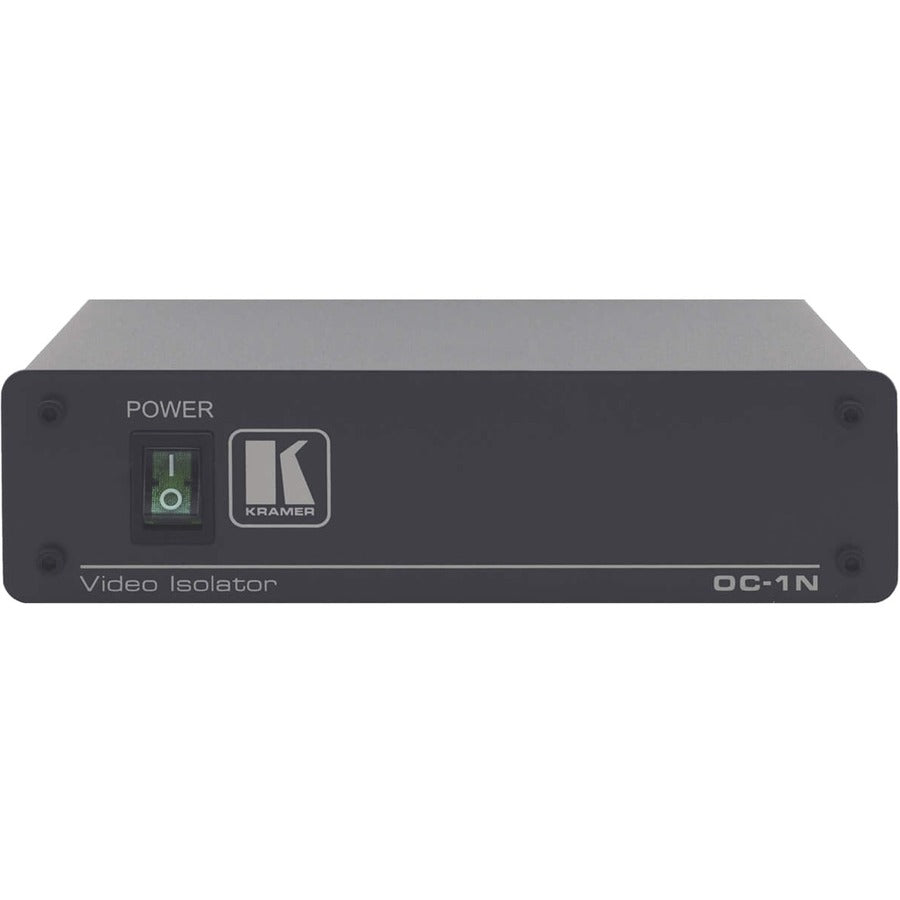

The OC-1N is a high-performance optical isolator for video or sync signals. It provides complete isolation between devices to eliminate video hum ground loops and DC offsets that can degrade picture quality.

• Bandwidth - 20MHz (-3dB).
• Channels - 1.
• Opto Isolator Circuitry - Extremely linear response and wide frequency range compared to traditional transformer based units.

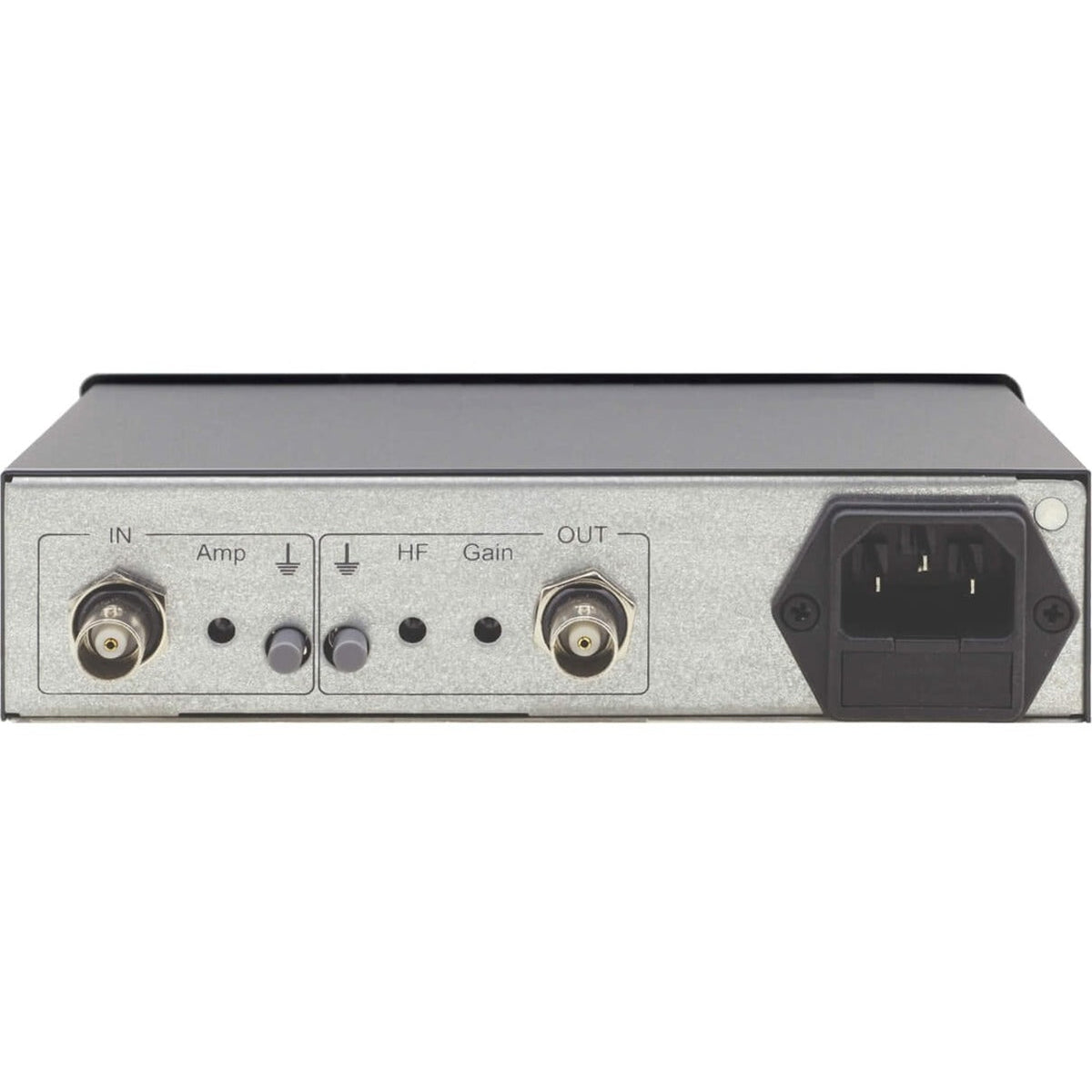

• Level (Gain) and EQ (Peaking) Controls.
• Floating Ground Selection - Input output both or none.

Applications

• Large display systems with sources and monitors/projectors on different power circuits.
• Video field production sessions.
• Hospital and other critical applications requiring complete isolation.
• Eliminate Video hum bars and noise.

• 1-Channel Video/Sync Optical Isolator
• Power Cord
