The FC-132ETH is an advanced Ethernet control gateway and serial communication matrix capable of plug and play deployment over a customer Ethernet LAN. Serving as an advanced serial communication matrix the FC-132ETH has 32 RS-232 and one RS-232/RS-485 output ports. Serial communication data is switchable to one or more of the eight RS-232 input ports. This can be done according to local control of panel buttons or RS-232 control port or remote control via Ethernet port control protocol or web-page browsing. Depending on matrix routing one-to-one bidirectional or one-to-many unidirectional serial switched communication is supported. Serving as a control gateway FC-132ETH is capable of remote bidirectional control of customer-controlled devices serially connected to its 32 RS-232 and one RS-232/RS-485 input ports. Multiple control clients can be IP-connected to the FC-132ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices such as AV scalers video displays and audio amplifiers.

• 1 RS-485 or RS-232 Selectable Bi-directional Output Port - Controls a device via bi-directional serial control protocols.
• 32 Bidirectional RS-232 Output Ports - Control a device via bi-directional serial control protocols.
• 8 Bidirectional RS-232 Input Ports - Switchable serial communication to one or more of the serial input ports.
• 4 Panel Buttons & LCD Display - Local panel control of serial matrix ports switching.
• 1 Panel Take / Lock Button - Local panel switching control or tampering prevention.
• 1 Bidirectional RS-232 Control Port - Local protocol-based switching control port.
• 1 Ethernet Control Port - Remote protocol-based control port?
• Built-in Web Pages - Remote browser-based control and support.
• Simultaneous IP Control Communication - With up to 40 IP control clients.
• Mini USB Port - For firmware upgrades and local technical services.
• Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.

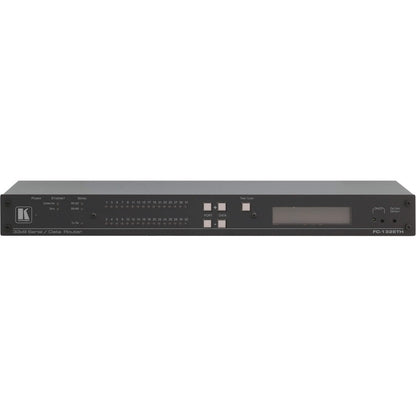

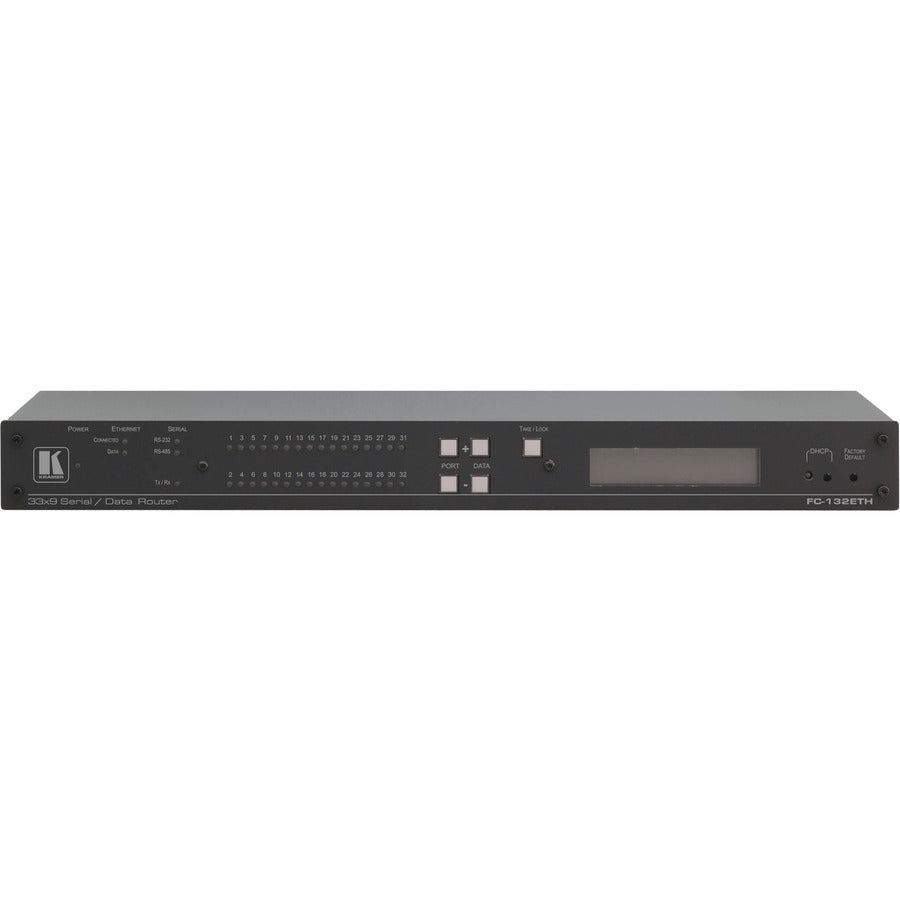

• 32-Port Serial Control Gateway And Advanced Serial Communication Matrix
• Power Cord
• Rack Mounting Brackets
