• Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter
    Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter
1 1

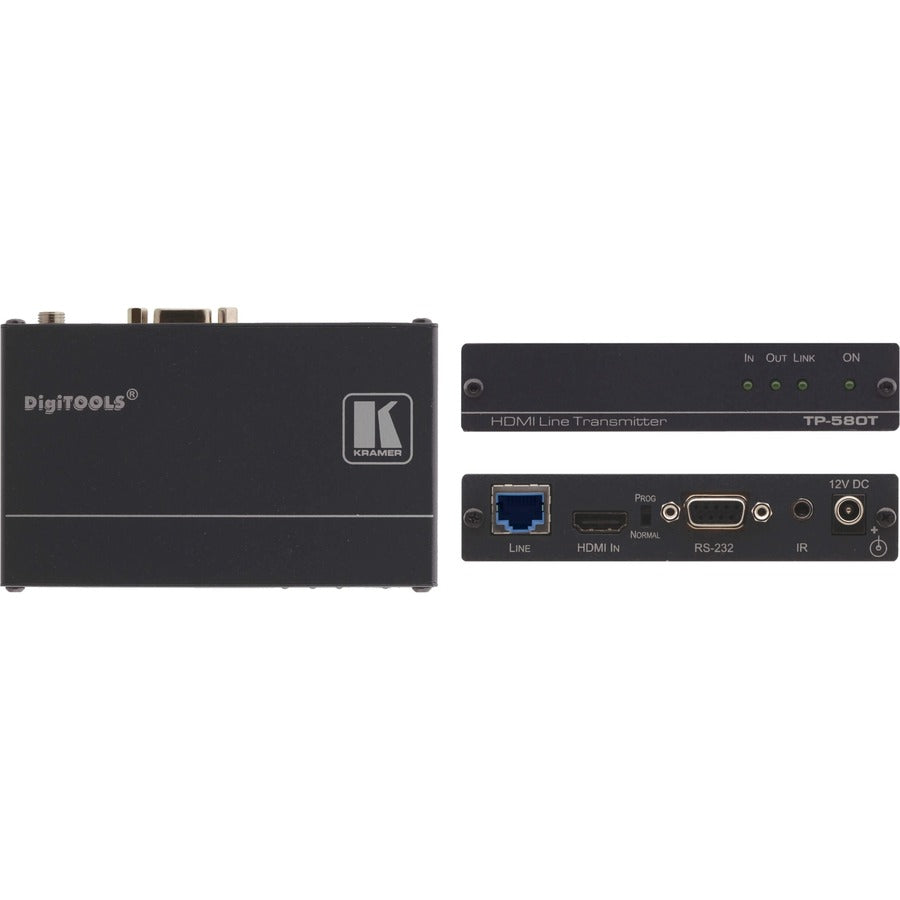

Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter

Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter

SKU: 1052161267      MFR: Kramer Electronics LTD

GTIN: 7291063051631

Product Description

Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : 50-80021090

Product Details

Number of Input Devices Supported1
Product TypeVideo Extender Transmitter
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Serial PortYes
Media Type SupportedTwisted Pair
Transmitter Height0.96"
Transmitter Width4.72"
Transmitter Depth2.81"
Transmitter Weight (Approximate)7.05 oz
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
ManufacturerKramer Electronics LTD
Product ModelTP-580T
Product Name4K UHD HDMI Bidirectional RS?232 & IR over HDBaseT Twisted Pair Transmitter
Manufacturer Part Number50-80021090
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The TP-580T is a high-performance HDBaseT twisted pair transmitter for 4K@60 UHD (4:2:0) 2Kx4K HDMI bidirectional RS-232 and IR signals. The TP-580T inputs HDMI RS-232 and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliance.
  • Resolution Support - 4K@60 UHD (4:2:0) 2Kx4K.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color x.v.Color™ Lip Sync HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD CEC.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface allowing status requests and remote control of the destination unit.
  • System Range - 70m (230ft) at 2K 40m (130ft) at 4K UHD resolutions.
  • Cable - For optimum range and performance using HDBaseT™ use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • Indicators - Status LEDs for input output link and power.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.
View full details
$270.99 USD
$270.99
Sale Sold out

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17


Update


Shipping calculated at checkout.

Kramer 4K UHD HDMI Bidirectional RS-232 & IR over HDBaseT Twisted Pair Transmitter - 1 Input Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 4K - 4096 x 2160 - Twisted Pair - Category 6 - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : 50-80021090

Product Details

Number of Input Devices Supported1
Product TypeVideo Extender Transmitter
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Serial PortYes
Media Type SupportedTwisted Pair
Transmitter Height0.96"
Transmitter Width4.72"
Transmitter Depth2.81"
Transmitter Weight (Approximate)7.05 oz
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
ManufacturerKramer Electronics LTD
Product ModelTP-580T
Product Name4K UHD HDMI Bidirectional RS?232 & IR over HDBaseT Twisted Pair Transmitter
Manufacturer Part Number50-80021090
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The TP-580T is a high-performance HDBaseT twisted pair transmitter for 4K@60 UHD (4:2:0) 2Kx4K HDMI bidirectional RS-232 and IR signals. The TP-580T inputs HDMI RS-232 and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580R receiver.

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
  • HDTV Compatible.
  • HDCP Compliance.
  • Resolution Support - 4K@60 UHD (4:2:0) 2Kx4K.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color x.v.Color™ Lip Sync HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD CEC.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface allowing status requests and remote control of the destination unit.
  • System Range - 70m (230ft) at 2K 40m (130ft) at 4K UHD resolutions.
  • Cable - For optimum range and performance using HDBaseT™ use Kramer's BC-HDKat6a cable. Note that the transmission range depends on the signal resolution source and display used. The distance using non-Kramer CAT 6 cable may not reach these ranges.
  • Indicators - Status LEDs for input output link and power.
  • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.
