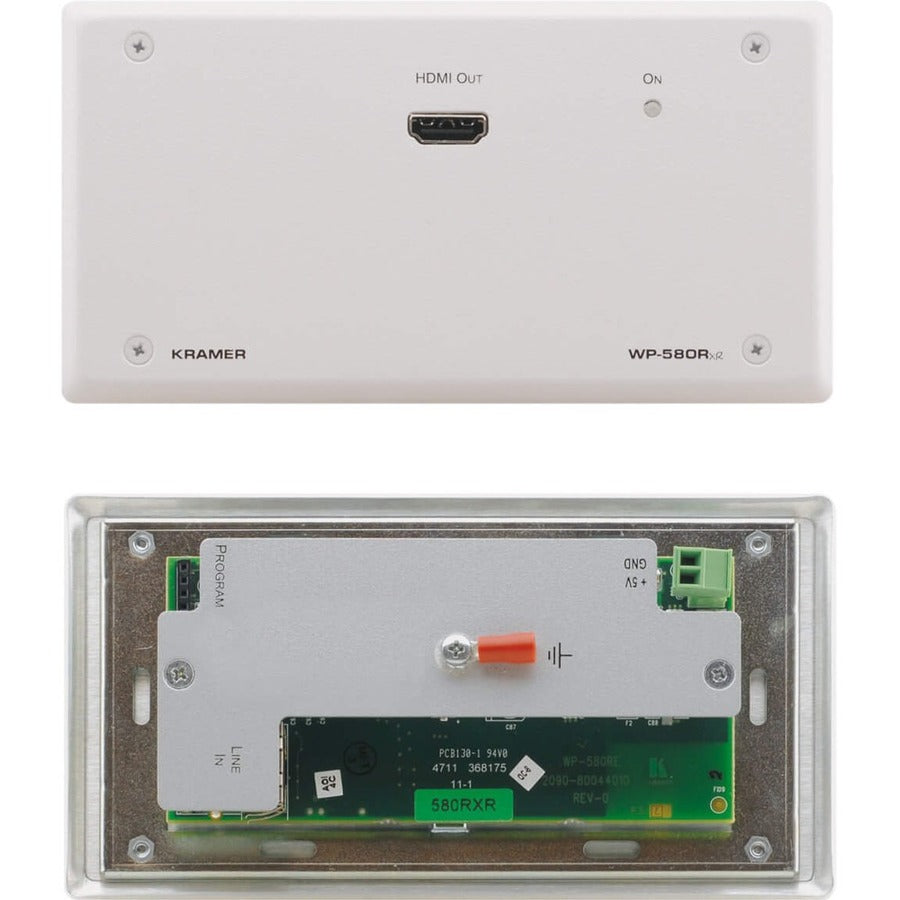

• Kramer 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT
    Kramer 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT
1 1

Kramer 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT

Kramer 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT

SKU: 1028602145      MFR: Kramer Electronics LTD

Product Description

Kramer 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT - 1 Output Device - 590.55 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Wall Plate

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : WP-580RXR

Features

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode
  • 2K & 4K Support
  • Audio - E

Product Details

Product TypeVideo Extender Receiver
Maximum Operating Distance590.55 ft
Number of Network (RJ-45) Ports1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Connectivity TechnologyWired
Brand NameKramer
Form FactorWall Plate
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Receiver Height3.39"
Receiver Width5.94"
Receiver Depth1.18"
Receiver Weight (Approximate)7.05 oz
ColorWhite
ManufacturerKramer Electronics LTD
Product ModelWP-580RXR
Product Name4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT
Manufacturer Part NumberWP-580RXR
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

WP-580Rxr is an extended range HDBaseT wall plate receiver for 4K@60Hz (4:2:0) HDMI RS-232 and IR signals over twisted pair. WP-580Rxr receives an HDBaseT twisted pair signal from the WP-580Txr and converts it back into HDMI signals. The WP-580Rxr(D) model is supplied with a Midway Size 2 gang DECORA® design frame.

  • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
  • HDTV Compatible.
  • HDCP Compliance.
  • HDBaseT™ Technology.
  • HDMI Support - Deep Color x.v.Color™ Lip Sync HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD.
  • 3D Pass-Through.
  • EDID PassThru - Passes EDID signals between the source and display.
  • 2K Support in Normal Mode.
  • System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using recommended Kramer cables
  • Cable - For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/WP-580Rxr.
  • Indicators - Status LEDs for input output link and power.

Applications

  • Projection systems in conference rooms boardrooms auditoriums hotels and churches production studios.
Package Contents
  • 4K60 4:2:0 HDMI Wall-Plate Receiver with RS-232 & IR over Extended-Reach HDBaseT
  • Power Supply
Limited Warranty7 Year
Serial PortYes
