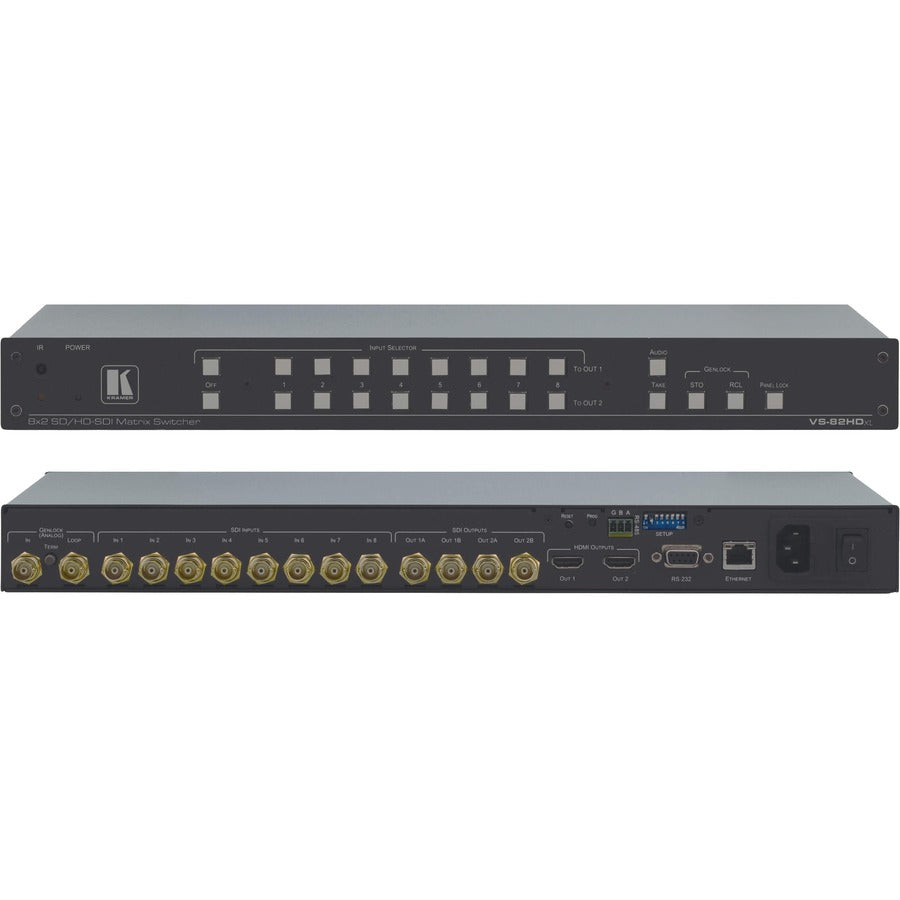

• Kramer 8x2 3G HD-SDI Matrix Switcher
    Kramer 8x2 3G HD-SDI Matrix Switcher
1 1

Kramer 8x2 3G HD-SDI Matrix Switcher

Kramer 8x2 3G HD-SDI Matrix Switcher

SKU: 1036135011      MFR: Kramer Electronics LTD

Product Description

Kramer 8x2 3G HD-SDI Matrix Switcher - Twisted Pair - 8 x 2 - Display Projector Camcorder Computer - 2 x HDMI Out

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : VS-82HDXL

Features

  • Max Data Rate - 3Gbps.
  • Kramer Equalization & re-Klocking™
  • Supports ANC Data
  • Cable Equalization
  • Clean Switching
  • Versatile Genlocking
  • Control - RS-232/RS-485 & Ethernet.
  • Size - Standard 19" (1U). Rack "ears" included.
  • Audio - E

Product Details

Product TypeAudio/Video Switchbox
Maximum Operating Distance1148.29 ft
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported2
Number of Input Devices Supported8
Connectivity (RJ-45)Yes
Connectivity TechnologyCable
Brand NameKramer
Form FactorRack-mountable
Device SupportedDisplay
Number of HDMI Outputs2
Number of Connectivity (RJ-45) Ports1
Height1.8"
Width19"
Depth7.2"
ManufacturerKramer Electronics LTD
Product ModelVS-82HDXL
Product Name8x2 3G HD-SDI Matrix Switcher
Manufacturer Part NumberVS-82HDXL
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The Kramer VS-82HDxl is a true 8 x 2 matrix switcher for SDI signals. The unit can switch any one of the eight SDI inputs to one or both sets of triple outputs (two-channel SDI and HDMI).

  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M/344M) HD-SDI (SMPTE 292M) 3G HD-SDI (SMPTE 424M).
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Looping Input.
  • Supports ANC Data - Embedded audio teletext time code etc.
  • Cable Equalization - Up to 350m for SD signals 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
  • Clean Switching Feature - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
  • Versatile Genlocking - Can use either an analog signal or any of the SDI input signals for genlocking. If the selected genlock input signal is unavailable the VS-82HDxl automatically selects the best available SDI input for the genlock signal.
  • Memory Locations - Stores 16 multiple switches as presets to be recalled and executed when needed.
  • Front Panel Control Lockout.
  • Flexible Control Options - Front panel RS-232/RS-485 & Ethernet.
Package Contents
  • 8x2 3G HD-SDI Matrix Switcher
  • Power Cord
  • Rack Ears
Limited Warranty7 Year
Weight (Approximate)3.75 lb
View full details
$4,995.99 USD
$4,995.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Kramer 8x2 3G HD-SDI Matrix Switcher - Twisted Pair - 8 x 2 - Display Projector Camcorder Computer - 2 x HDMI Out

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : VS-82HDXL

Features

  • Max Data Rate - 3Gbps.
  • Kramer Equalization & re-Klocking™
  • Supports ANC Data
  • Cable Equalization
  • Clean Switching
  • Versatile Genlocking
  • Control - RS-232/RS-485 & Ethernet.
  • Size - Standard 19" (1U). Rack "ears" included.
  • Audio - E

Product Details

Product TypeAudio/Video Switchbox
Maximum Operating Distance1148.29 ft
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Displays Supported2
Number of Input Devices Supported8
Connectivity (RJ-45)Yes
Connectivity TechnologyCable
Brand NameKramer
Form FactorRack-mountable
Device SupportedDisplay
Number of HDMI Outputs2
Number of Connectivity (RJ-45) Ports1
Height1.8"
Width19"
Depth7.2"
ManufacturerKramer Electronics LTD
Product ModelVS-82HDXL
Product Name8x2 3G HD-SDI Matrix Switcher
Manufacturer Part NumberVS-82HDXL
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The Kramer VS-82HDxl is a true 8 x 2 matrix switcher for SDI signals. The unit can switch any one of the eight SDI inputs to one or both sets of triple outputs (two-channel SDI and HDMI).

  • Max. Data Rate - 3Gbps.
  • HDTV Compatible.
  • Multi-Standard Operation - SDI (SMPTE 259M/344M) HD-SDI (SMPTE 292M) 3G HD-SDI (SMPTE 424M).
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Looping Input.
  • Supports ANC Data - Embedded audio teletext time code etc.
  • Cable Equalization - Up to 350m for SD signals 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
  • Clean Switching Feature - When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
  • Versatile Genlocking - Can use either an analog signal or any of the SDI input signals for genlocking. If the selected genlock input signal is unavailable the VS-82HDxl automatically selects the best available SDI input for the genlock signal.
  • Memory Locations - Stores 16 multiple switches as presets to be recalled and executed when needed.
  • Front Panel Control Lockout.
  • Flexible Control Options - Front panel RS-232/RS-485 & Ethernet.
Package Contents
  • 8x2 3G HD-SDI Matrix Switcher
  • Power Cord
  • Rack Ears
Limited Warranty7 Year
Weight (Approximate)3.75 lb
