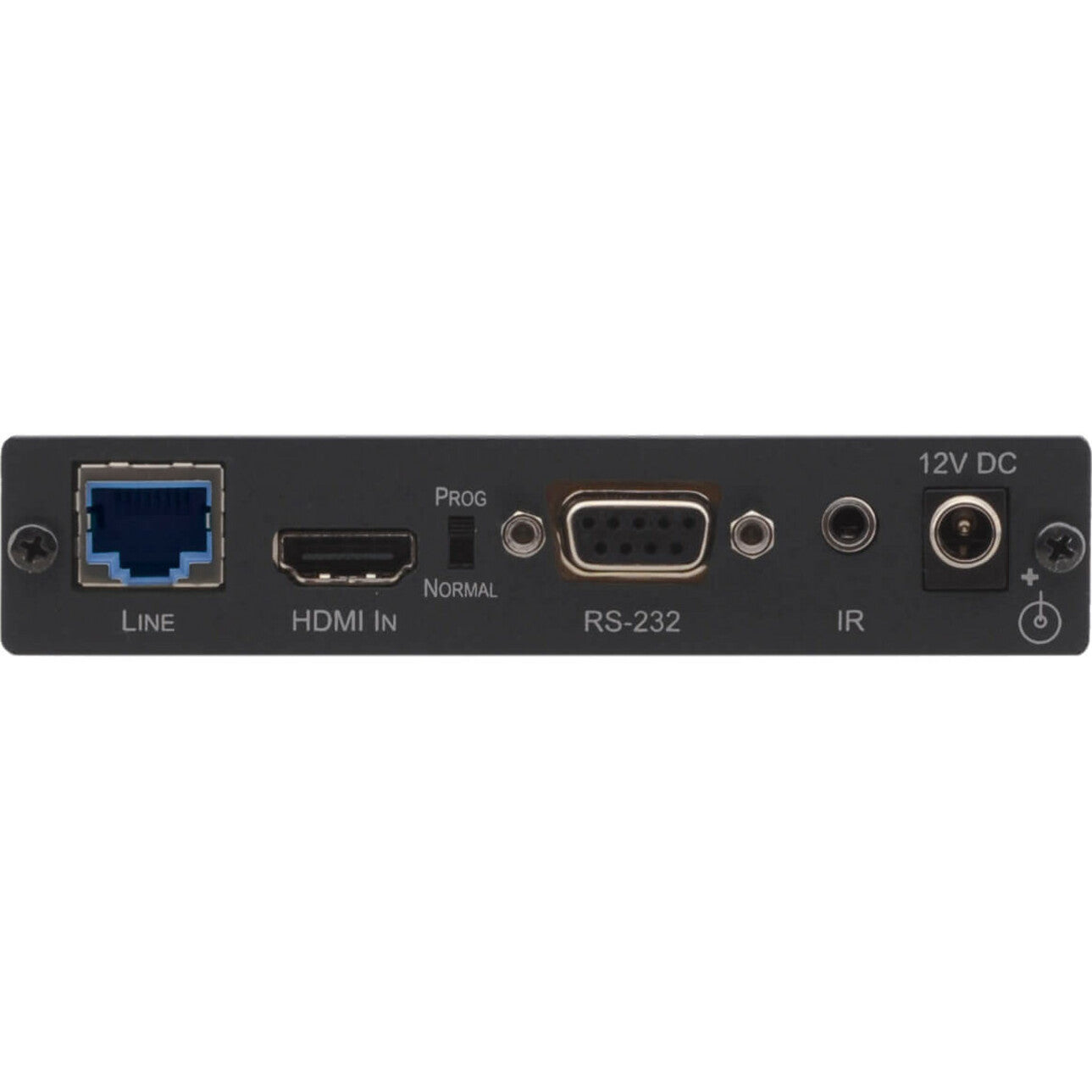

TP-580Rxr is a high-performance extended-reach HDBaseT receiver for 4K@60Hz (4:2:0) HDMI RS-232 and IR signals over twisted pair. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Rxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
• HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D. EDID and CEC signals are passed through from the source to the display.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission device control.
• Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
• Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting field-proven deployment.
• Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the optional RK-3T rack adapter.

• Long-distance AV signal extension for multi-room large dividable auditoriums and lecture hall connectivity
• AV extension in conference rooms boardrooms control rooms hotels and large church facilities
