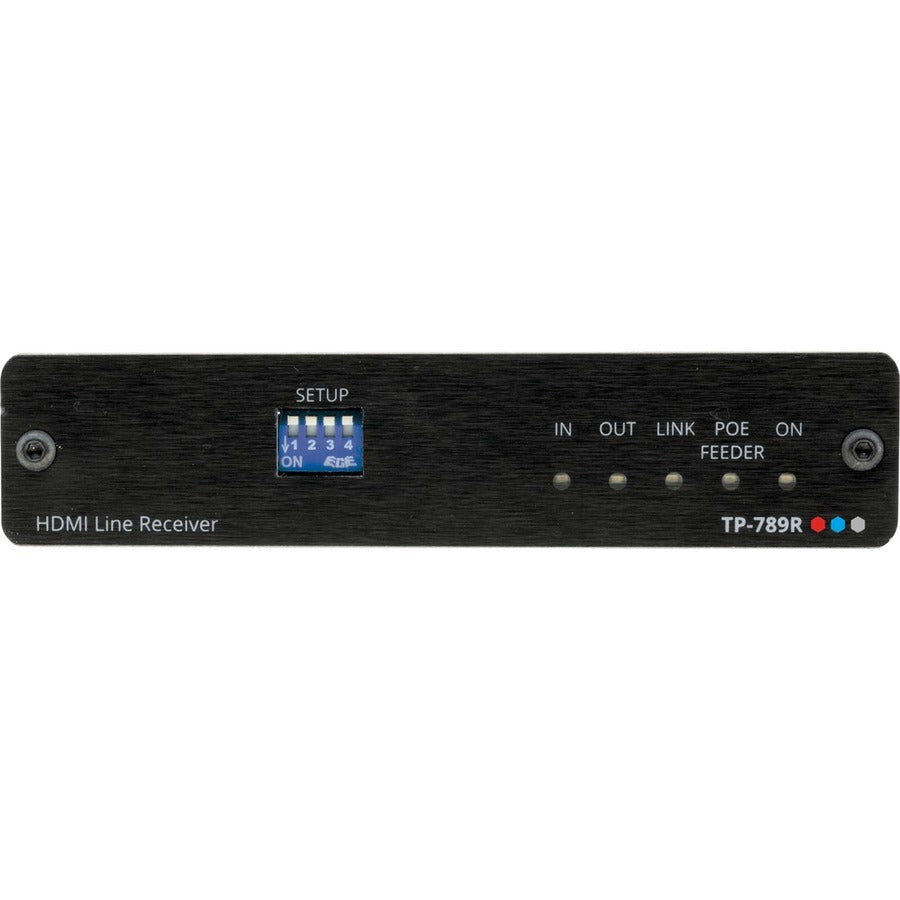

TP-789R is a high-performance long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI RS-232 and IR signals and two-way powering over twisted pair. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate or accepts PoE through the extension cable from a PoE provider remote device as auto-sensed by the receiver.

• High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals and powering over twisted-pair copper infrastructures. TP-789R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables.
• Bidirectional PoE (Power over Ethernet) - Auto-senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall-plate or accepts power from a remote PoE provider such as a PoE matrix.
• HDMI Signal Extension - Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control.
• Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
• Cost-Effective Maintenance - Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting field-proven deployment.
• Easy Installation - Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.

APPLICATIONS

• Long-distance AV signal extension for multi-room large dividable auditoriums and lecture hall connectivity
• AV extension in conference rooms boardrooms control rooms hotels and large church facilities

• DigiTOOLS TP-789R Video Extender Receiver
• Power Adapter
• Bracket Set
