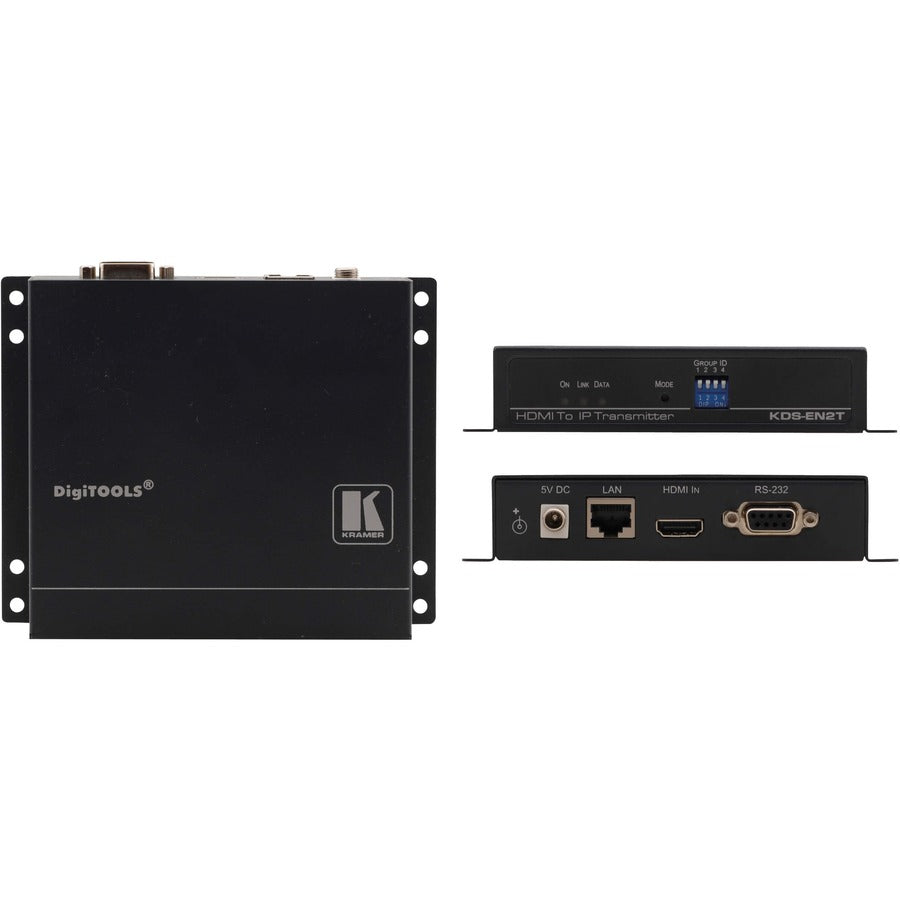

• Kramer HDMI over IP Transmitter
    Kramer HDMI over IP Transmitter
1 1

Kramer HDMI over IP Transmitter

Kramer HDMI over IP Transmitter

SKU: 1028601521      MFR: Kramer Electronics LTD

Product Description

Kramer HDMI over IP Transmitter - 1 Input Device - 1 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : KDS-EN2T

Features

  • JPEG 2000 compression technology
  • Point to point Multicasting & broadcasting architecture
  • Up to 9 transmitters & 81 receivers
  • Size - DigiTOOLS® - Mount 3 units side-by-side in a 1U rack space with the optional RK-3T rack adapter.
  • Audio - E

Product Details

Product TypeVideo Extender Receiver
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 7
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
Receiver Height1.14"
Receiver Width5.51"
Receiver Depth4.49"
Receiver Weight (Approximate)1.10 lb
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
ManufacturerKramer Electronics LTD
Product ModelKDS-EN2T
Product NameHDMI over IP Transmitter
Product LineDigiTOOLS
Manufacturer Part NumberKDS-EN2T
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The KDS-EN2T is an IP-based transmitter for HDMI signals. Using JPEG2000 compression technology the KDS-EN2T sends a visually lossless HD image with digital stereo over a 1000BaseT LAN to a KDS-EN2R receiver for multicasting video wall and digital signage applications.

  • High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
  • High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system as well as over 200 receivers from each transmitter in multicasting mode.
  • Multicasting and Broadcasting Architecture - Each channel requires about 55Mbps.
  • Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
  • HDTV Compatible.
  • Controls - Group ID can be defined either via the built-in DIP-switches or by using the remote utility.
  • RS-232 Pass-Thru - Controls the HDMI display from the transmitter side.
  • Compact DigiTOOLS® - With a built-in mounting plate for versatile installation.
Package Contents
  • HDMI over IP Transmitter
  • 1 x Power Supply
Limited Warranty7 Year
Product FamilyDigiTOOLS
Serial PortYes
View full details
$965.99 USD
$965.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Kramer HDMI over IP Transmitter - 1 Input Device - 1 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Category 7 - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : KDS-EN2T

Features

  • JPEG 2000 compression technology
  • Point to point Multicasting & broadcasting architecture
  • Up to 9 transmitters & 81 receivers
  • Size - DigiTOOLS® - Mount 3 units side-by-side in a 1U rack space with the optional RK-3T rack adapter.
  • Audio - E

Product Details

Product TypeVideo Extender Receiver
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 7
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Inputs1
HDMI InYes
Media Type SupportedTwisted Pair
Number of Input Devices Supported1
Receiver Height1.14"
Receiver Width5.51"
Receiver Depth4.49"
Receiver Weight (Approximate)1.10 lb
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
ManufacturerKramer Electronics LTD
Product ModelKDS-EN2T
Product NameHDMI over IP Transmitter
Product LineDigiTOOLS
Manufacturer Part NumberKDS-EN2T
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing Information

The KDS-EN2T is an IP-based transmitter for HDMI signals. Using JPEG2000 compression technology the KDS-EN2T sends a visually lossless HD image with digital stereo over a 1000BaseT LAN to a KDS-EN2R receiver for multicasting video wall and digital signage applications.

  • High Flexibility - Flexible and scalable HDMI 1080p for video broadcasting with Gigabit Ethernet LAN.
  • High Scalability - Up to 9 transmitters and more than 81 receivers possible in a video wall system as well as over 200 receivers from each transmitter in multicasting mode.
  • Multicasting and Broadcasting Architecture - Each channel requires about 55Mbps.
  • Cost Efficient Infrastructure - Transmits an HDMI signal over one CAT5e/6/7 cable.
  • HDTV Compatible.
  • Controls - Group ID can be defined either via the built-in DIP-switches or by using the remote utility.
  • RS-232 Pass-Thru - Controls the HDMI display from the transmitter side.
  • Compact DigiTOOLS® - With a built-in mounting plate for versatile installation.
Package Contents
  • HDMI over IP Transmitter
  • 1 x Power Supply
Limited Warranty7 Year
Product FamilyDigiTOOLS
Serial PortYes
