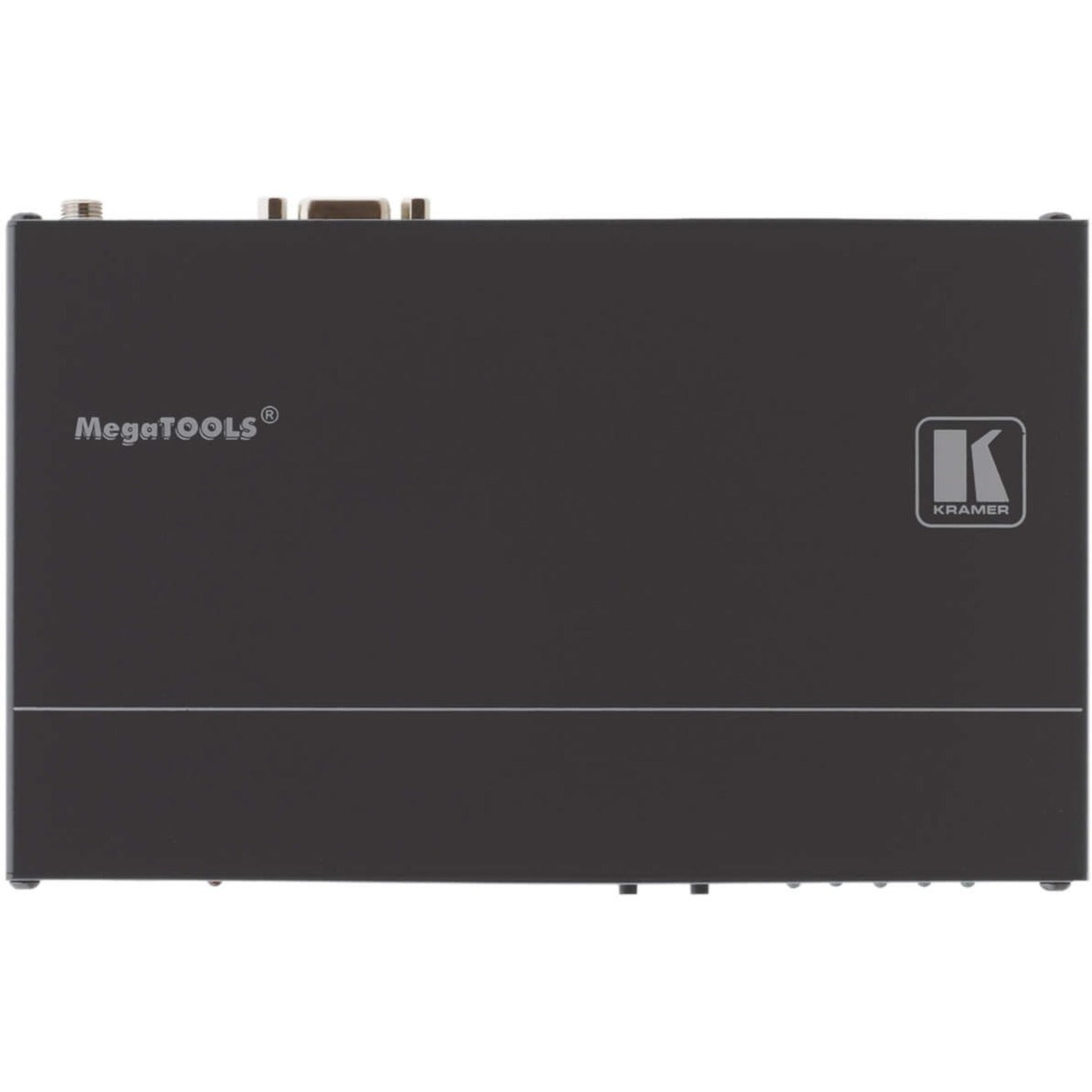

Kramer TP-576 HDMI & Long-reach DGKat PoC Transceiver with RS-232 & IR

Kramer TP-576 HDMI & Long-reach DGKat PoC Transceiver with RS-232 & IR

SKU: 1026657143      MFR: Kramer Electronics LTD

Product Description

Kramer TP-576 HDMI & Long-reach DGKat PoC Transceiver with RS-232 & IR - 1 Input Device - 1 Output Device - 328.08 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1080p 1080i - Full HD - 1920 x 1080 - Twisted Pair - Category 7

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : TP-576

Product Details

Product TypeVideo Extender Transceiver
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Twisted Pair Cable StandardCategory 7
Maximum Operating Distance328.08 ft
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Supported Video Modes1080p
Connectivity TechnologyWired
Brand NameKramer
ManufacturerKramer Electronics LTD
Product ModelTP-576
Product NameTP-576 HDMI & Long?reach DGKat PoC Transceiver with RS?232 & IR
Product LineMegaTOOLS
Manufacturer Part NumberTP-576
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing InformationThe TP-576 is a DGKat™ twisted pair line driver for HDMI bidirectional RS-232 and infrared signals. The unit receives an HDMI signal either from a local HDMI source or from a compatible twisted pair transmitter. It decodes the selected signals to the local HDMI RS-232 and IR outputs and simultaneously transmits them to a compatible twisted pair receiver.

FEATURES
  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel HDMI); 4.95Gbps (1.65Gbps per graphic channel twisted pair).
  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • HDMI Support - x.v.Color™ HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD.
  • 3D Pass-Through.
  • -EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • HPD Pass Thru - Passes hot plug detect signals from display to source.
  • Active Input/Output LED Indicators.
  • System Range - Up to 90m (295ft) at 1080i or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat7a23 cable.
  • Cable - For optimum range and performance use Kramer's BC-DGKat524 BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution graphics card and display used. The distance using non-Kramer CAT 5 CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Flexible Control - Front panel RS-232 & IR switching.
  • Power Connect™ System - A single connection to the TP-576 powers the transmitter receiver and line driver units.
  • Compact MegaTOOLS™ - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.
Package Contents
  • TP-576 HDMI & Long-reach DGKat PoC Transceiver with RS-232 & IR
  • Power Supply
  • Bracket Installation Kit
Product FamilyMegaTOOLS
