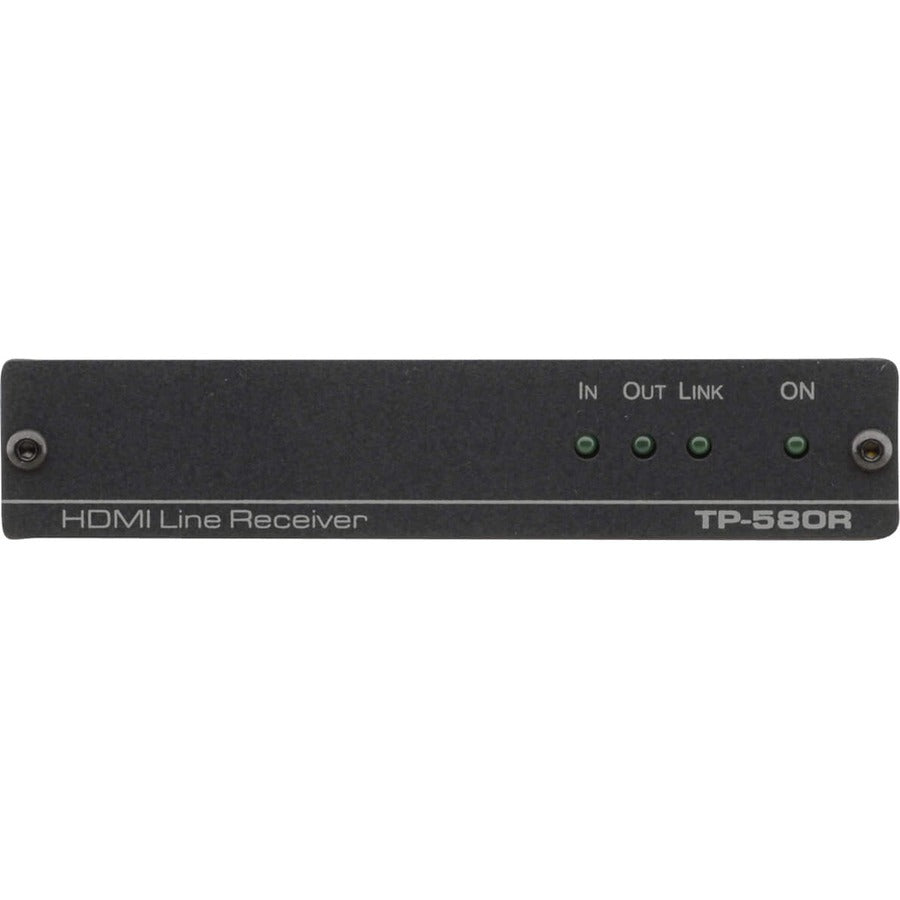

• Kramer TP-580R Video Extender Receiver
    Kramer TP-580R Video Extender Receiver
1 1

Kramer TP-580R Video Extender Receiver

Kramer TP-580R Video Extender Receiver

SKU: 1052160495      MFR: Kramer Electronics LTD

GTIN: 7291063051693

Product Description

Kramer TP-580R Video Extender Receiver - 1 Output Device - 229.66 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 1080p - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable

Manufacturer : Kramer Electronics LTD

Manufacturer Part No : 50-80022090

Product Details

Product TypeVideo Extender Receiver
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Connectivity TechnologyWired
Brand NameKramer
Form FactorRack-mountable
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Receiver Height0.96"
Receiver Width4.72"
Receiver Depth2.81"
Receiver Weight (Approximate)7.05 oz
Supported Video Modes1080p
ManufacturerKramer Electronics LTD
Product ModelTP-580R
Product NameTP-580R Video Extender Receiver
Manufacturer Part Number50-80022090
Manufacturer Website Addresshttp://www.kramerelectronics.com
Marketing InformationTP-580R is a high-performance long-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI RS-232 and IR signals over twisted pair. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions

FEATURES

High Performance Standard Extender - Professional HDBaseT extender for providing long-reach signals over twisted-pair copper infrastructures. TP-580R is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables

HDMI Signal Extension - HDCP 2.2 compliant. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display

I--EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems

Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound

Bidirectional RS-232 Extension - Serial interface data flows in both directions allowing data transmission and device control

Bidirectional Infrared Extension - IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line

Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting field-proven deployment

Easy Installation - Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter
Package Contents
  • TP-580R Video Extender Receiver
  • Power Supply Unit
