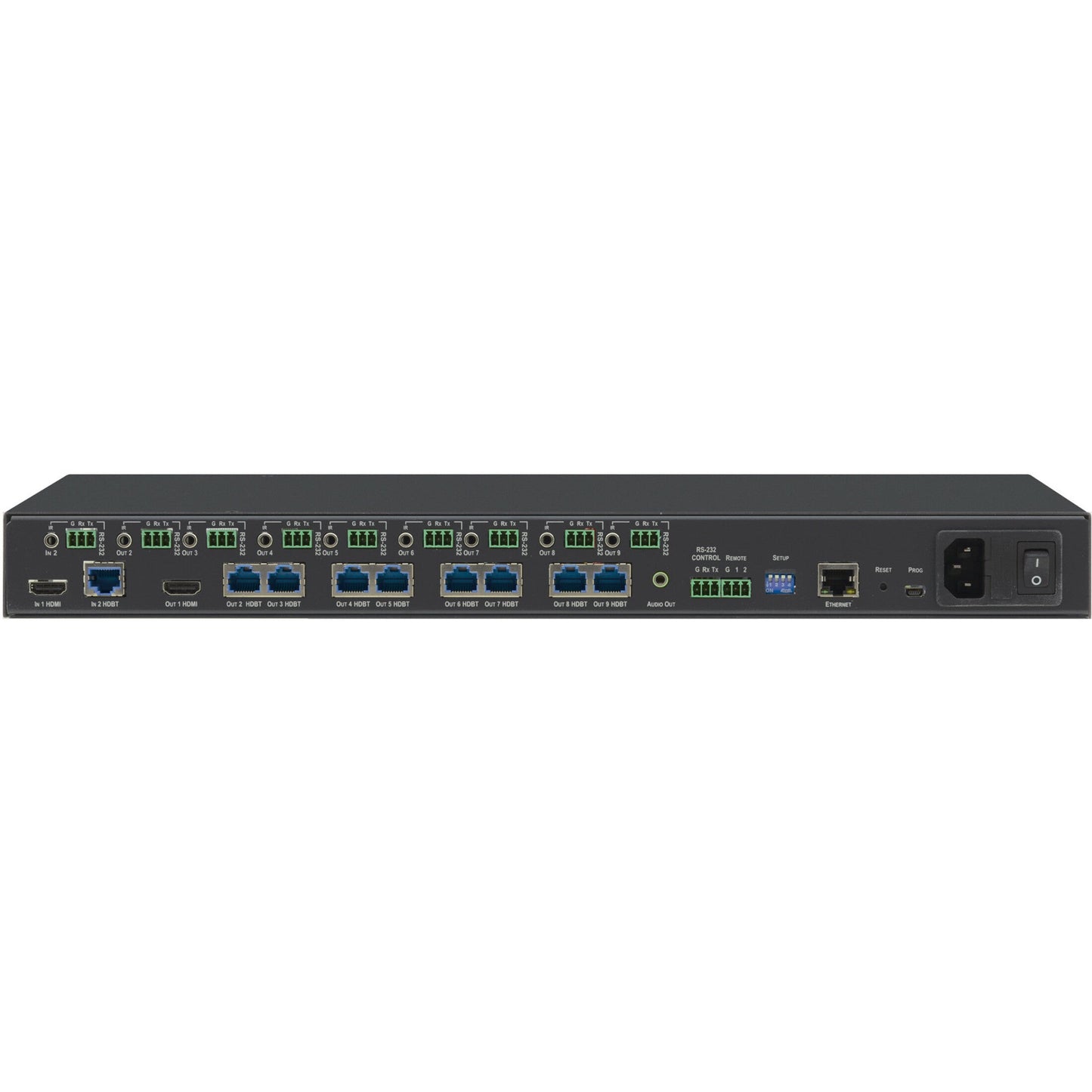

VM-218DTxr is a high-quality extended-reach 4K@60Hz (4:2:0) HDBaseT distributor that takes either an HDMI or an extended-reach HDBaseT input (selectable) equalizes and reclocks the signal and distributes it to eight identical extended-reach HDBaseT outputs each with its own Ethernet and RS-232/IR control signals. The unit also includes a loop HDMI output along with audio de-embedding (extraction) to analog stereo port. As an integrated extender distributor VM-218DTxr re-extends and distributes native extended-reach HDBaseT signals with up to 4K video resolution.

• High Performance Extender Distributor - High-quality professional 1:8 distribution of native extended-reach HDBaseT signals for deploying mid-way between an AV source and multiple remote displays and gaining extra extended-reach extension. It is coupled with both sides input and output extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 100m (330ft) extended-reach over CAT copper cable and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market-available HDBaseT compliant extending product.
• Cables - For optimum range and performance use recommended Kramer cables.
• HDMI Signal Extension - HDMI 2.0 and HDCP 1.4 compliant signal supporting deep color x.v.Color™ lip sync 7.1 PCM Dolby TrueHD DTS-HD 2K 4K and 3D. EDID signals are passed through from the source to the display.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Looping HDMI Output - Enables monitoring and cascading to additional DAs.
• Ethernet Extension - Ethernet interface data flows in both directions on each extension line enabling extension of up to 100Mbps Ethernet connectivity for LAN communication and control of devices.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions on each extension line enabling data transmission and control of devices.
• Bidirectional Infrared Extension - IR interface data flows in both directions on each extension line enabling remote control of peripheral devices located at either end of the extended line.
• Audio De-embedding (Extraction) - The transmitted digital audio signal is converted to an analog signal and de-embedded to stereo unbalanced analog audio output. This enables user-selectable de-embedding of input digital audio to play at local hi-quality speakers separate from a remote receiver-connected AV sink device such as a TV display or audio speakers to provide higher quality audio playback.
• Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built-in web pages or RS-232 control connection. Local and remote firmware upgrade via mini-USB control RS-232 or Ethernet connection and the K-Upload tool to ensure long field-proven deployment.
• Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included rack ears.

APPLICATIONS

• Presentation and multimedia applications
• Rental and staging

• VM-218DTxr Video Switchbox
• Power Cord
• Rack Ears
