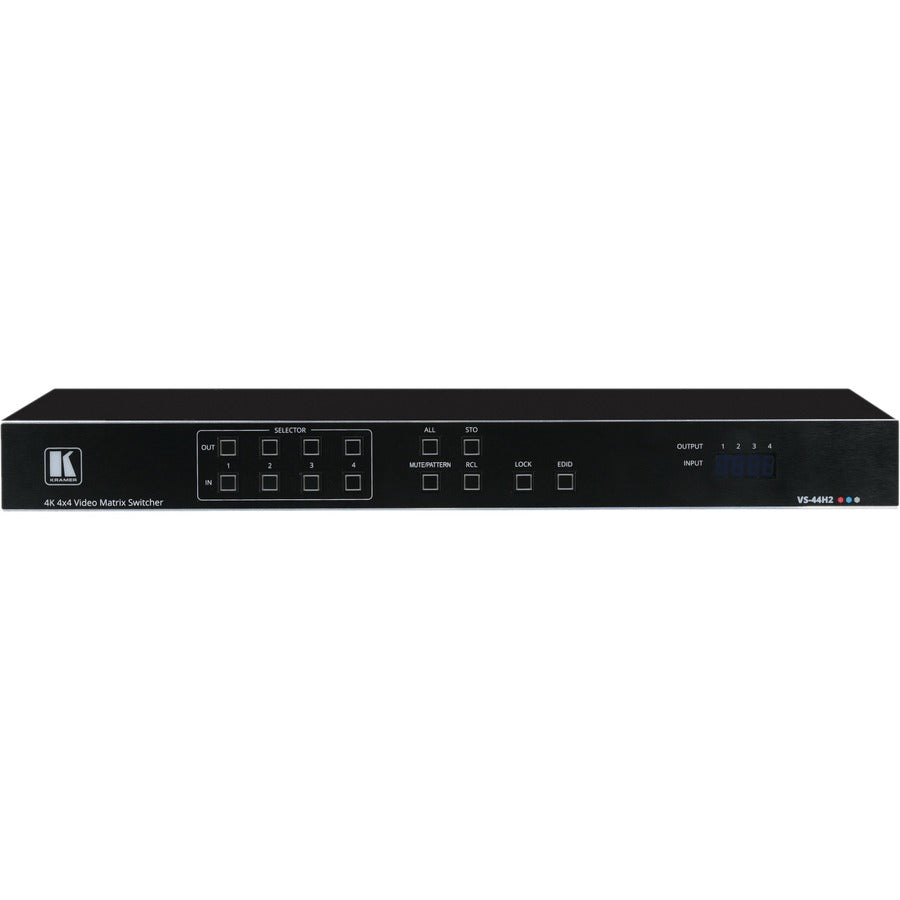

VS-44H2 is a high-performance 4x4 matrix switcher for 4K@60Hz (4:4:4) HDR signals. It reclocks and equalizes the signals and can route any one of 4 HDMI HDCP-compliant sources (selectable) to any or all outputs simultaneously.

• High-Performance AV Matrix - Switches 4 4K@60Hz (4:4:4) HDR HDMI HDCP (2.2/1.4)-compliant signals to 4 4K@60Hz (4:4:4) HDR HDMI HDCP (2.2/1.4)-compliant outputs at up to 18G data rate. Featuring Kramer re-Klocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance use recommended Kramer cables.
• HDMI Support - Deep Color 3D up to 7.1 uncompressed audio channels as specified in HDMI 2.0.
• EDID Management - Individual EDID management per input. Captures and stores the EDID from a display device.
• Flexible Content Protection - Selectable HDCP per input.
• Quick Access to Common Configurations - Save up to 8 preset configurations.
• Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights shades devices and more to be activated by an extensive range of triggers including scheduling input/output connectivity routing and button pressing. By minimizing user intervention Maestro room automation saves meeting prep time and minimizes human error before presentations.
• Smart Switching - Active source & acceptor detection. Automatic input selection based on priority selection or last connected input.
• Embedded Pattern Generator - With selectable patterns.
• Convenient Unit Control and Configuration Options - Local control via front panel switching memory lock and EDID buttons and Input/Output LED display. Distance control via user-friendly embedded web pages via the Ethernet Protocol 3000 API and RS-232 serial commands transmitted by a PC touch screen system or other serial controller.
• Cost-Effective Maintenance - Input selection indicators facilitate easy local maintenance and troubleshooting. Firmware upgrade via Ethernet.
• Easy Installation - 19" enclosure for rack mounting in a 1U rack space with included rack ears and universal 100-240V AC power supply.

APPLICATIONS

• Control rooms with multiple displays
• Presentation and multimedia applications
• Systems that require automatic HDMI routing
