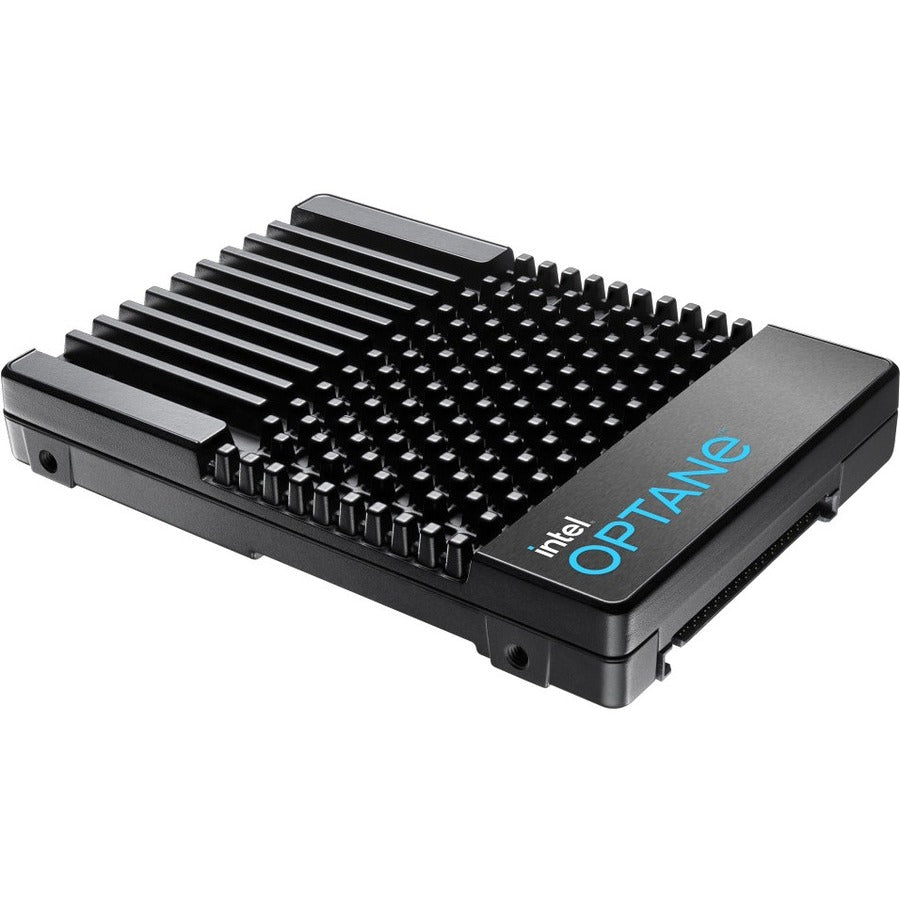

    Lenovo P5800X 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive
1 1

Lenovo P5800X 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive

Lenovo P5800X 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive

SKU: 1071146039      MFR: Lenovo Group Limited

Product Description

Lenovo P5800X 1.60 TB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 4.0 x4) - Write Intensive - Server Device Supported - 100 DWPD - 299008 TB TBW - 7372.80 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 4XB7A17160

Features

  • PCIe 4.0 connection for each NVMe drive
  • Also supports PCIe 3.0 host connection for servers with first and second-generation Intel Xeon Scalable processors or with PCIe 3.0 NVMe switch adapters
  • Ultra-low I/O latency with a read/write latency of as low as 5 µs.
  • Consistently reliable quality of service
  • Excellent read and write performance at low queue depths
  • Near symmetrical read and write performance
  • Very high endurance at 100 full drive writes per day
  • Variable sector size and end-to-end data-path protection
  • Enhanced power-loss data protection
  • Thermal throttling and monitoring

Product Details

Environmentally FriendlyYes
Additional Warranty Information

The ThinkSystem U.2 P5800X Write Intensive NVMe PCIe 4.0 x4 SSD carries a 1-year customer-replaceable unit (CRU) limited warranty.
Product TypeSolid State Drive
Maximum Read Transfer Rate7372.80 MB/s
Maximum Write Transfer Rate6348.80 MB/s
Drive InterfaceU.2
Drive Interface StandardPCI Express NVMe 4.0 x4
Random 4KB Read1500000IOPS
Random 4KB Write1500000IOPS
Endurance (DWPD)100
Endurance (TBW)299008 TB
Endurance TypeWrite Intensive
Height0.6"
Width2.8"
Depth3.9"
Product SeriesP5800X
Brand NameLenovo
Drive TypeInternal
CompatibilityLenovo ThinkSystem Servers:
  • SR645 V3 (7D9D / 7D9C)
  • SR665 V3 (7D9B / 7D9A)
  • SR675 V3 (7D9Q / 7D9R)
  • SR630 V3 (7D72 / 7D73)
  • SR650 V3 (7D75 / 7D76)
  • SR850 V3 (7D97 / 7D96)
  • SR860 V3 (7D94 / 7D93)
  • SR630 V2 (7Z70 / 7Z71)
  • SR650 V2 (7Z72 / 7Z73)
  • SR670 V2 (7Z22 / 7Z23)
  • SR645 (7D2Y / 7D2X)
  • SR665 (7D2W / 7D2V)
  • SR850 V2 (7D31 / 7D32)
  • SR850 (7X18 / 7X19)
  • SR850P (7D2F / 2D2G)
  • SR860 (7X69 / 7X70)
Form Factor2.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 2.5" U.2 P5800X 1.6TB Write Intensive NVMe PCIe 4.0 x4 HS SSD
Device SupportedServer
Storage Capacity1.60 TB
Hot SwappableYes
Manufacturer Part Number4XB7A17160
Manufacturer Website Addresshttp://www.lenovo.com/us/en/
Marketing Information

The ThinkSystem U.2 P5800X Write Intensive NVMe PCIe 4.0 x4 SSD is the ultimate in high performance solid state drive with ultra-low latency very high bandwidth and an endurance of up to 100 drive writes per day making this drive the best choice for write-intensive high-performance workloads.

This product guide introduces the P5800X drives and describes their features and specifications and provides compatibility information. This guide is intended for technical specialists sales specialists sales engineers IT architects and other IT professionals who want to learn more about the drives and consider their use in IT solutions.
Limited Warranty1 Year
Environmental CertificationEU WEEE
Wireless LANNo
Environmental CertificationEU RoHS
Product FamilyP5800X
View full details
$15,823.99 USD
$15,823.99
Sale Sold out

Back Order

Get it by Sat, Feb 07 - Thu, Feb 12
