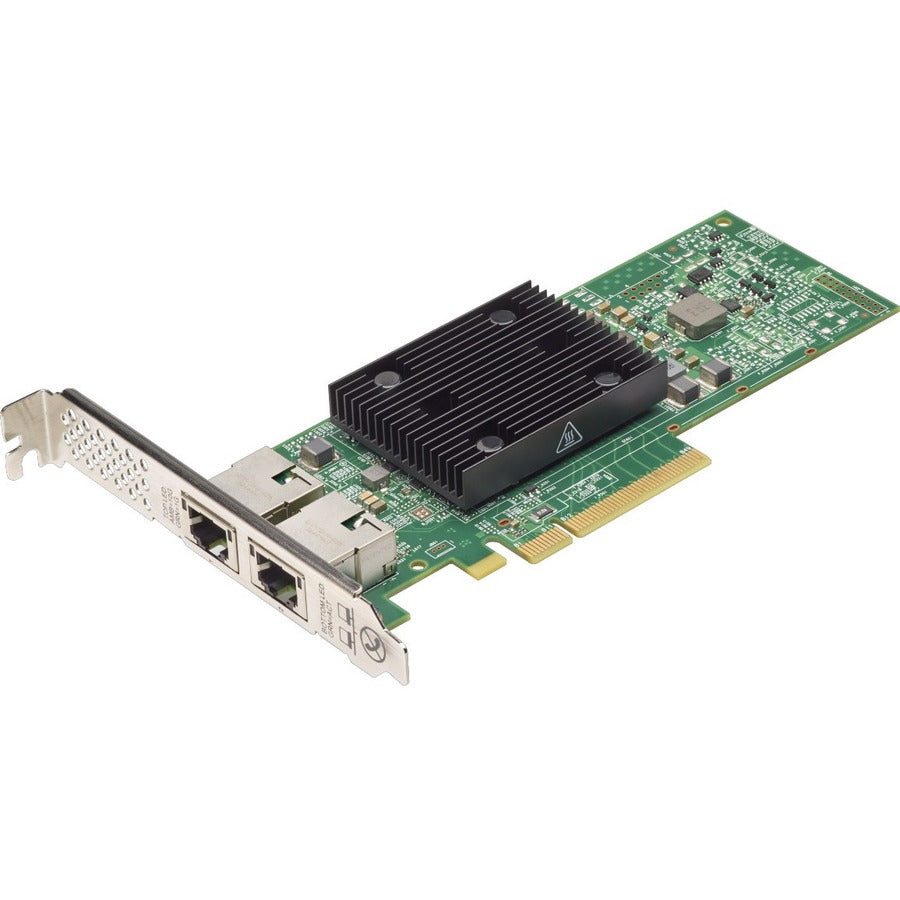

Lenovo ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter

Lenovo ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter

SKU: 1040955354      MFR: Lenovo Group Limited

GTIN: 889488433612

Product Description

Lenovo ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter - PCI Express 3.0 x8 - 2 Port(s) - 2 - Twisted Pair - 10GBase-T - Plug-in Card

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 7ZT7A00496

Features

  • 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
  • This 8000MB/s bandwidth adapter is ideal for PCs with PCI Express 3.0 x8 slots ensuring top level network connectivity for your desktops
  • This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client server or workstation
  • Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
  • With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable

Product Details

Product Type10Gigabit Ethernet Card
Number of Network (RJ-45) Ports2
Total Number of Ports2
Brand NameLenovo
Form FactorPlug-in Card
Network Technology10GBase-T
Device SupportedServer
Host InterfacePCI Express 3.0 x8
Environmentally FriendlyYes
Environmental CertificationcTUVus
Media Type SupportedTwisted Pair
Height0.6"
Width2.7"
ManufacturerLenovo Group Limited
Product NameThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter
Manufacturer Part Number7ZT7A00496
Manufacturer Website Addresshttp://www.lenovo.com/us/en/
Marketing Information

Introduction

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

Did you know?

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling you eliminate the need for transceivers or fiber optic cabling.

The Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system thereby eliminating the need for a separate management network.
Packaged Quantity1
Package Contents
  • ThinkSystem Broadcom NX-E PCIe 10Gb 2-Port Base-T Ethernet Adapter
  • Full-height (3U) bracket (PCIe adapter only) and low-profile (2U) bracket
  • Installation and warranty documentation
Limited Warranty1 Year
