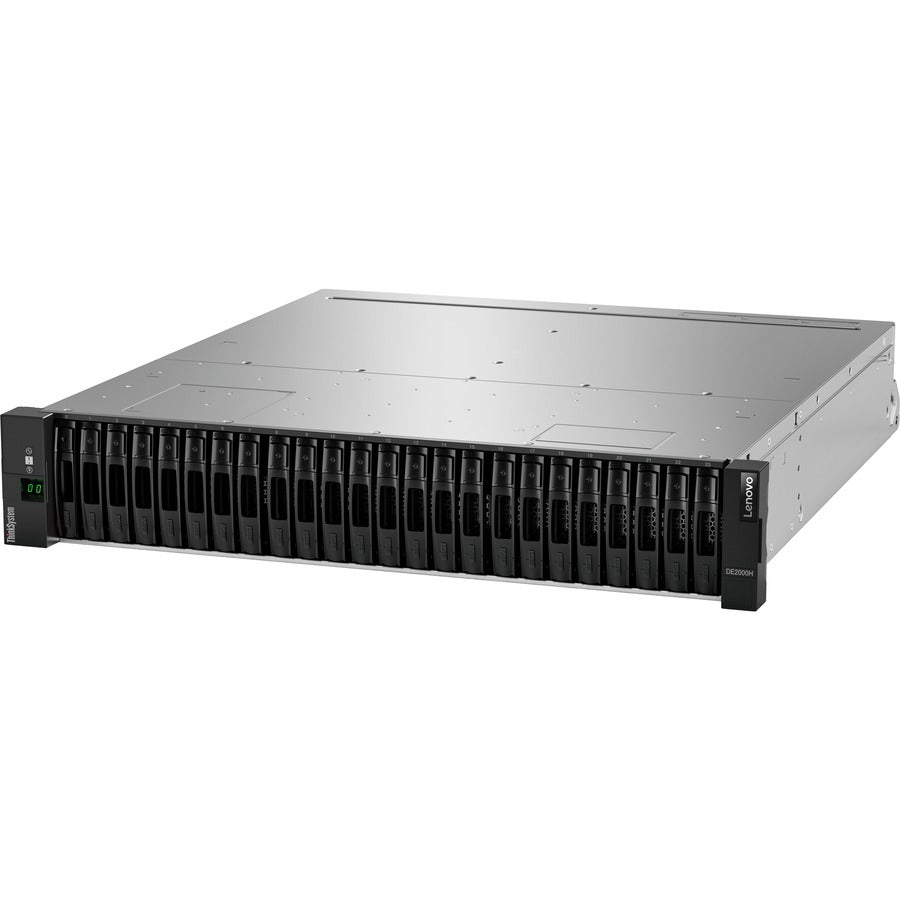

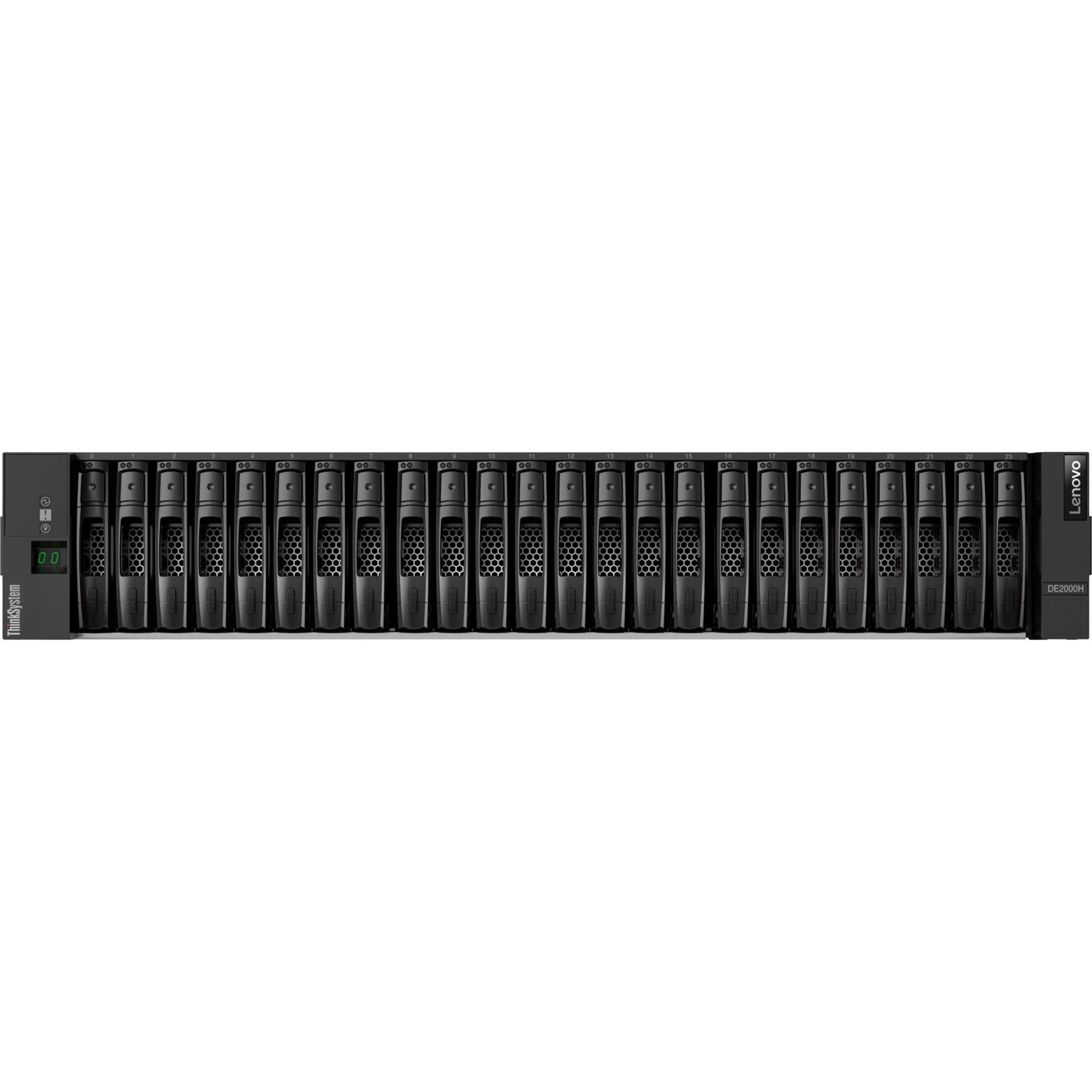

Lenovo ThinkSystem DE2000H Hybrid Storage Array

Lenovo ThinkSystem DE2000H Hybrid Storage Array

SKU: 1054341910      MFR: Lenovo Group Limited

GTIN: 0889488488841

Product Description

Lenovo ThinkSystem DE2000H Hybrid Storage Array - 24 x HDD Supported - 24 x SSD Supported - 2 x 12Gb/s SAS Controller - RAID Supported 0 1 3 5 6 10 - 24 x Total Bays - 24 x 2.5" Bay - 10 Gigabit Ethernet - 2 USB Port(s) - FCP SSH SMI-S SNMP SSL LDAP - 8 SAS Port(s) External - 2U - Rack-mountable

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 7Y71A000WW

Features

  • Optimize business network's performance with 10 Gigabit Ethernet connectivity
  • RAID technology - data reliability fault tolerance and improved overall performance

Product Details

Number of 2.5" Bays24
Number of SAS Ports (External)8
Height3.3"
Width17.7"
Depth21.8"
Number of Controllers2
Product SeriesDE
Rack Height2U
Brand NameLenovo
Fibre ChannelYes
Form FactorRack-mountable
ManufacturerLenovo Group Limited
Product ModelDE2000H
Product NameThinkSystem DE2000H Hybrid Storage Array
Product LineThinkSystem
RAID Levels0 1 3 5 6 10
Controller Type12Gb/s SAS
Manufacturer Part Number7Y71A000WW
Manufacturer Website Addresshttp://www.lenovo.com/us/en/
Marketing Information

Lenovo ThinkSystem DE2000H is a low-cost hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications.

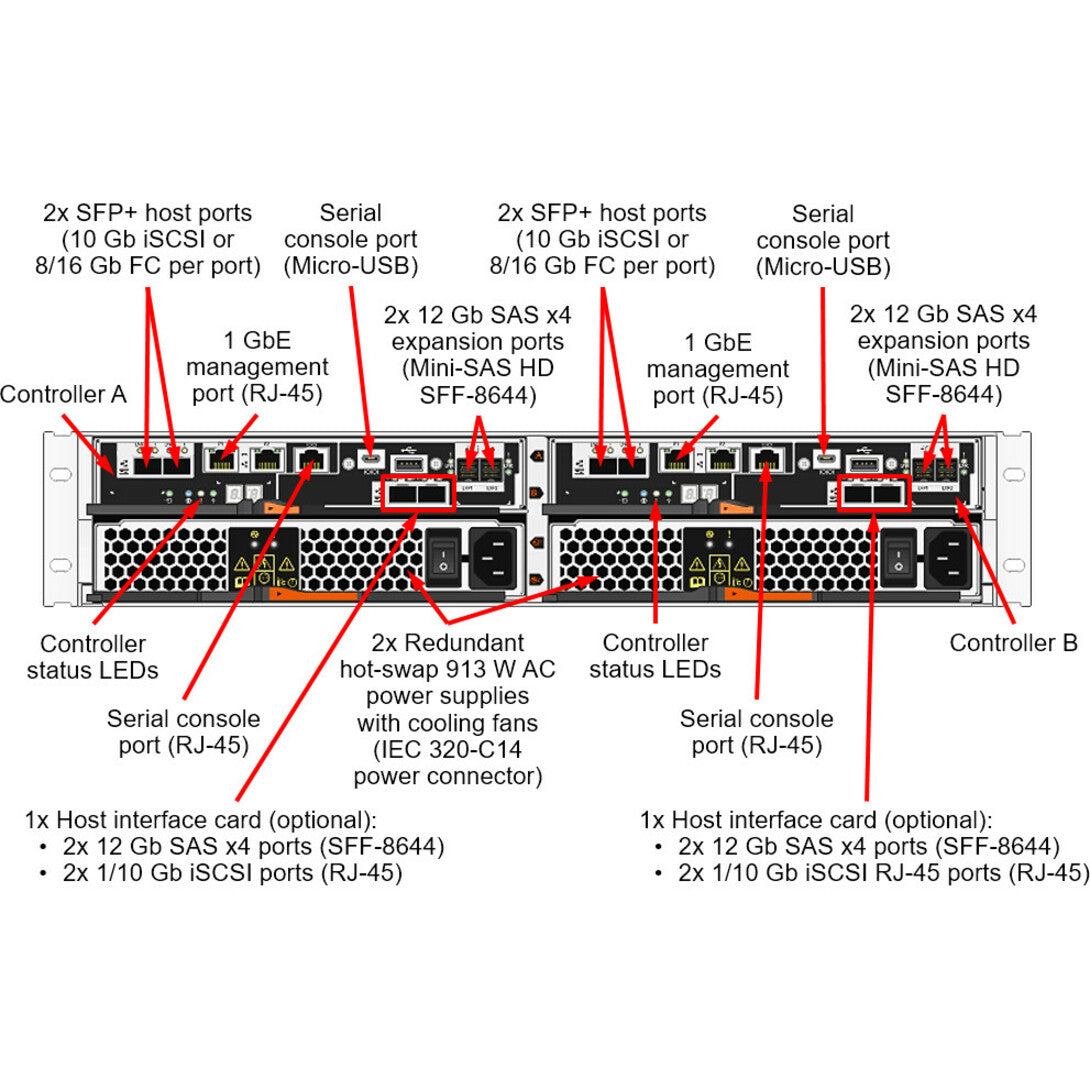

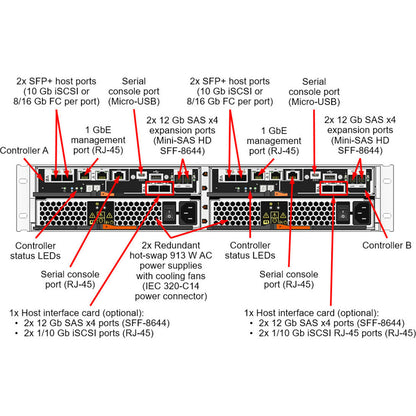

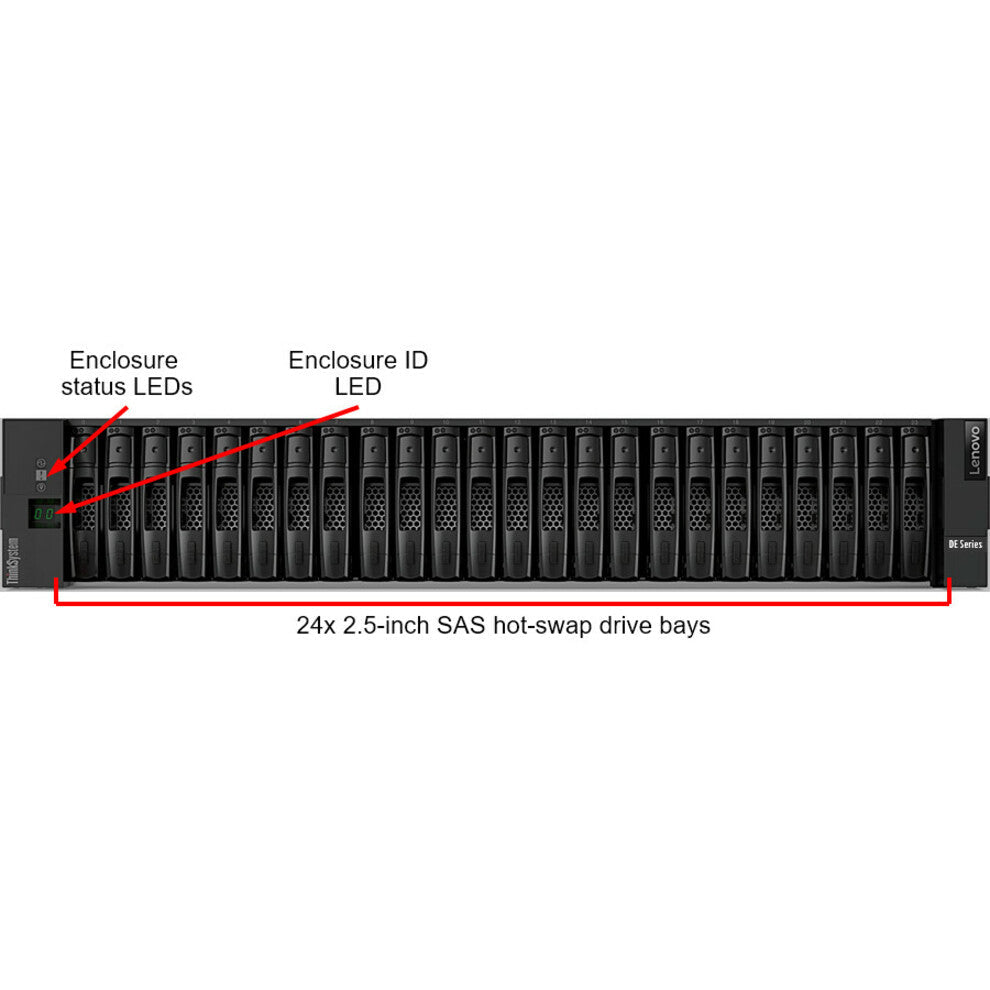

ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.

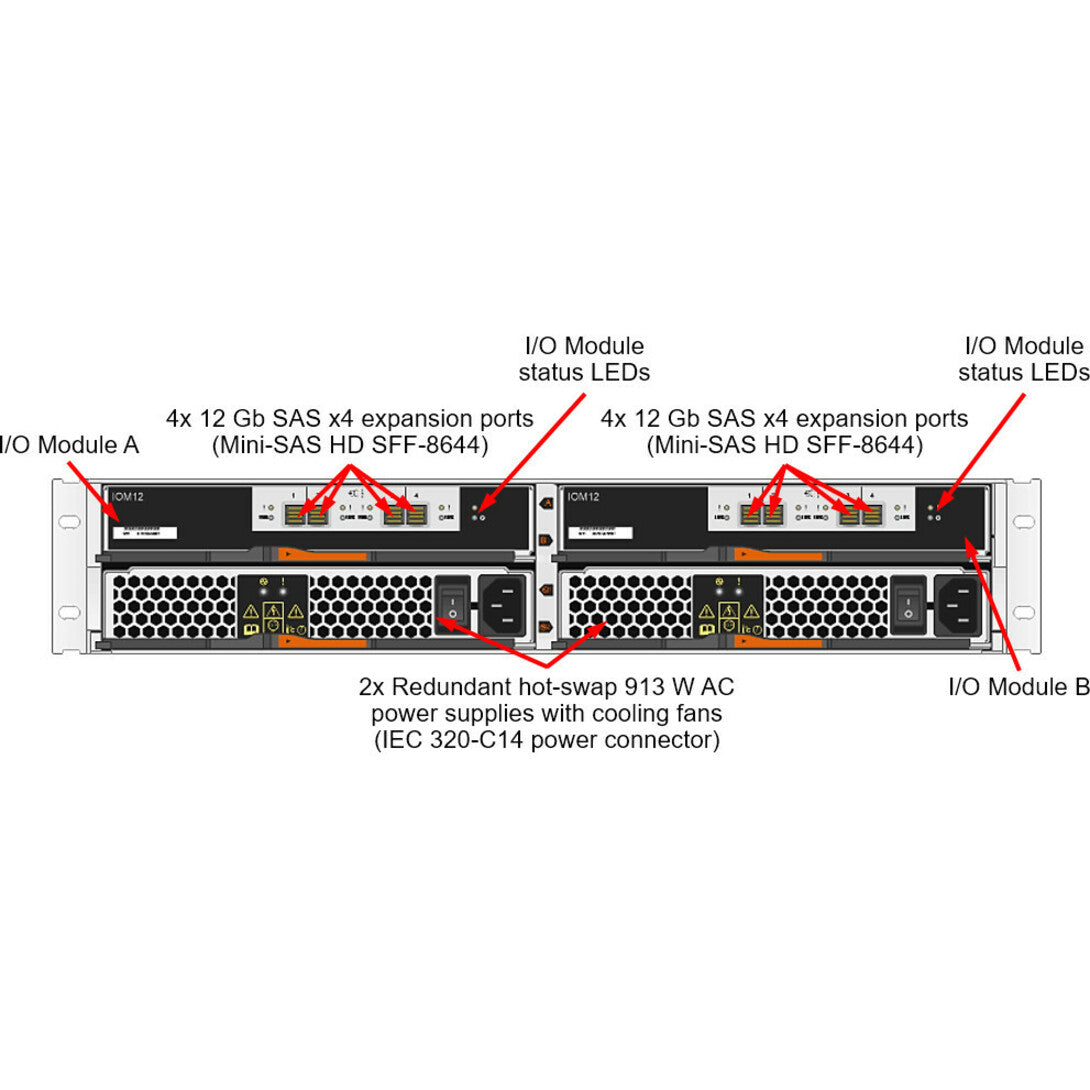

The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs).

ProtocolsFCP
Limited Warranty3 Year
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported24
Number of Hard Drives InstalledNo
Number of Hard Drives Supported24
Total Number of USB Ports2
Maximum Power Supply Wattage913 W
Number of Total Expansion Bays24
Ethernet Technology10 Gigabit Ethernet
RAID SupportedYes
Product TypeDAS/SAN Storage System
Product FamilyThinkSystem DE
