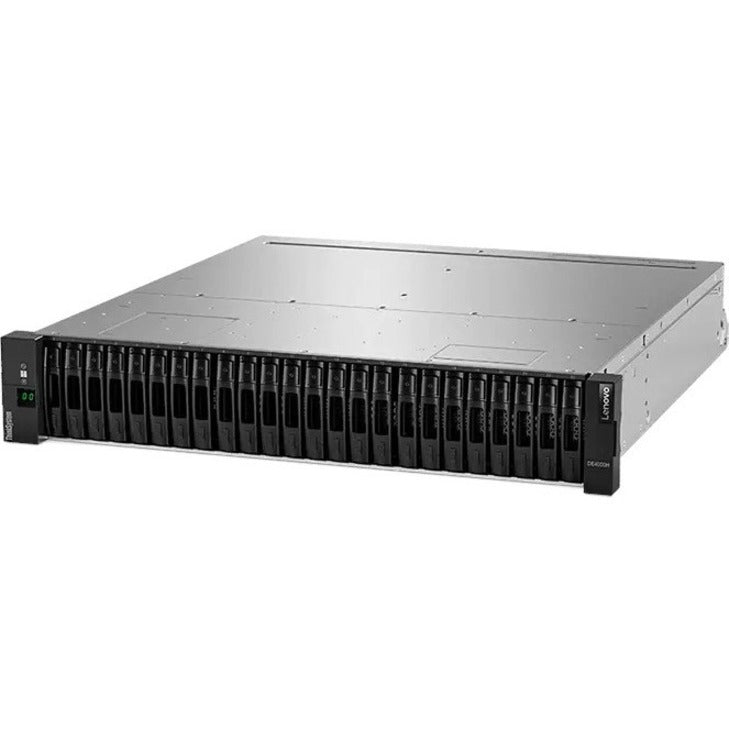

• Lenovo ThinkSystem DE4000H DAS/SAN Storage System
    Lenovo ThinkSystem DE4000H DAS/SAN Storage System
1 1

Lenovo ThinkSystem DE4000H DAS/SAN Storage System

Lenovo ThinkSystem DE4000H DAS/SAN Storage System

SKU: 1073862093      MFR: Lenovo Group Limited

Product Description

Lenovo ThinkSystem DE4000H DAS/SAN Storage System - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0 1 3 5 6 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP SSH SMI-S SNMP SSL LDAP - 12 SAS Port(s) External - 2U - Rack-mountable

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 7Y75A00TWW

Features

  • DAS/SAN Storage System is the single answer to all your desired storage needs
  • Robust scalability up to 24 drives to let you expand limitlessly
  • Through RAID levels (0 1 3 5 6 10) RAID provides data reliability fault tolerance and improves overall performance
  • RAID technology - data reliability fault tolerance and improved overall performance
  • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
  • Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance

Product Details

Product TypeDAS/SAN Storage System
Number of Power Supplies Installed2
Redundant Power SupplyYes
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Bays24
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Maximum Power Supply Wattage913 W
Total Number of USB Ports2
Number of Hard Drives Supported24
Number of Hard Drives Installed0
Number of Solid State Drive Supported24
Number of Solid State Drive Installed0
Number of 2.5" Bays24
Number of SAS Ports (External)12
SSD Cache Capacity32 GB
Height3.3"
Width17.7"
Depth21.8"
Number of Controllers2
Product SeriesDE
Rack Height2U
Brand NameLenovo
Fibre ChannelYes
Plug/Connector TypeC13 to IEC 320-C14
Form FactorRack-mountable
ManufacturerLenovo Group Limited
Product ModelDE4000H
Product NameThinkSystem DE4000H DAS/SAN Storage System
Product LineThinkSystem
RAID Levels0 1 3 5 6 10
Controller Type12Gb/s SAS
Manufacturer Part Number7Y75A00TWW
Manufacturer Website Addresshttp://www.lenovo.com/us/en/
Marketing Information

Lenovo ThinkSystem DE4000H is a scalable hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications.

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 8 GB or 32 GB cache for a system total of 16 GB or 64 GB. Universal 1/10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity and the host interface cards provide additional 1/10 Gb iSCSI or 4/8/16 Gb FC 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections.

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs).
ProtocolsFCP
Host Interface12Gb/s SAS
Product FamilyThinkSystem DE
View full details
$14,278.99 USD
$14,278.99
Sale Sold out

Back Order

Get it by Sun, Jul 26 - Fri, Jul 31


Update


Shipping calculated at checkout.

Lenovo ThinkSystem DE4000H DAS/SAN Storage System - 24 x HDD Supported - 0 x HDD Installed - 24 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported 0 1 3 5 6 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - FCP SSH SMI-S SNMP SSL LDAP - 12 SAS Port(s) External - 2U - Rack-mountable

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 7Y75A00TWW

Features

  • DAS/SAN Storage System is the single answer to all your desired storage needs
  • Robust scalability up to 24 drives to let you expand limitlessly
  • Through RAID levels (0 1 3 5 6 10) RAID provides data reliability fault tolerance and improves overall performance
  • RAID technology - data reliability fault tolerance and improved overall performance
  • Rack-mountable form factor allows hassle-free and easy usage with increased efficiency
  • Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance

Product Details

Product TypeDAS/SAN Storage System
Number of Power Supplies Installed2
Redundant Power SupplyYes
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Bays24
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Maximum Power Supply Wattage913 W
Total Number of USB Ports2
Number of Hard Drives Supported24
Number of Hard Drives Installed0
Number of Solid State Drive Supported24
Number of Solid State Drive Installed0
Number of 2.5" Bays24
Number of SAS Ports (External)12
SSD Cache Capacity32 GB
Height3.3"
Width17.7"
Depth21.8"
Number of Controllers2
Product SeriesDE
Rack Height2U
Brand NameLenovo
Fibre ChannelYes
Plug/Connector TypeC13 to IEC 320-C14
Form FactorRack-mountable
ManufacturerLenovo Group Limited
Product ModelDE4000H
Product NameThinkSystem DE4000H DAS/SAN Storage System
Product LineThinkSystem
RAID Levels0 1 3 5 6 10
Controller Type12Gb/s SAS
Manufacturer Part Number7Y75A00TWW
Manufacturer Website Addresshttp://www.lenovo.com/us/en/
Marketing Information

Lenovo ThinkSystem DE4000H is a scalable hybrid entry-level storage system that is designed to provide performance simplicity capacity security and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads including big data and analytics video surveillance technical computing backup and recovery and other storage I/O-intensive applications.

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers each with 8 GB or 32 GB cache for a system total of 16 GB or 64 GB. Universal 1/10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity and the host interface cards provide additional 1/10 Gb iSCSI or 4/8/16 Gb FC 12 Gb SAS 10/25 Gb iSCSI or 8/16/32 Gb FC connections.

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 DE240S 2U24 SFF and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs) and SAS solid-state drives (SSDs).
ProtocolsFCP
Host Interface12Gb/s SAS
Product FamilyThinkSystem DE
