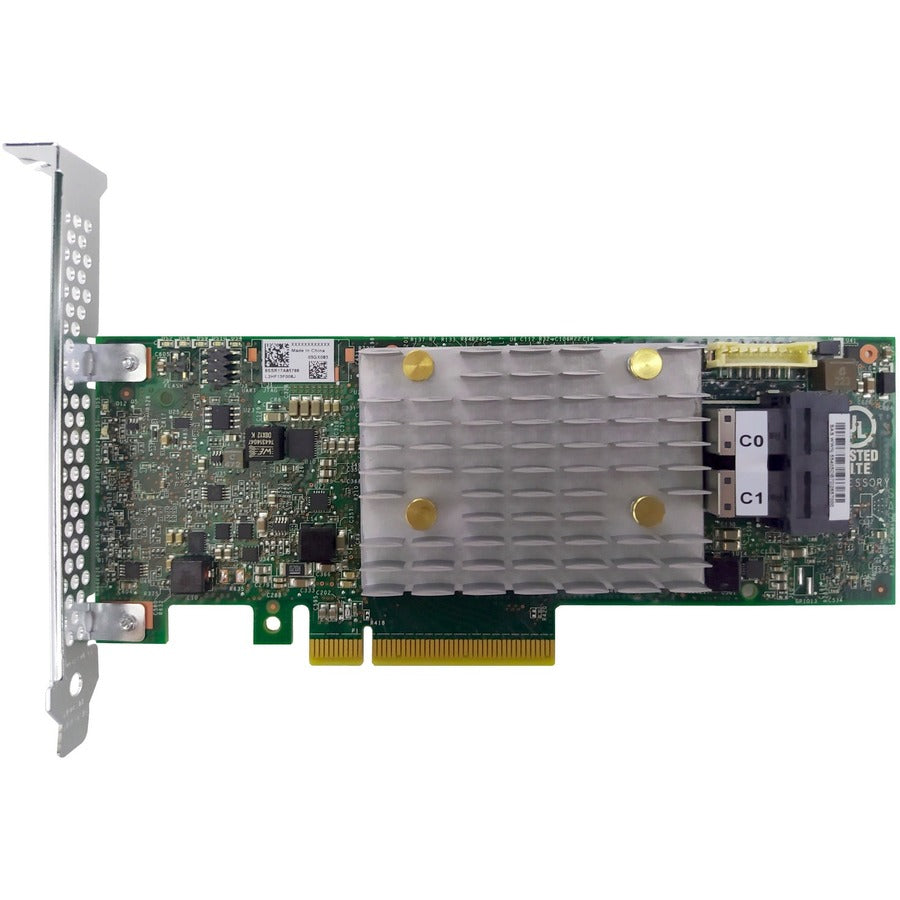

Lenovo ThinkSystem RAID 9350-16i 4GB Flash PCIe 12Gb Internal Adapter - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0 1 5 6 10 50 60 JBOD RAID Level - 4x SlimSAS x4 (SFF-8654) - 16 Total SAS Port(s) - 16 SAS Port(s) Internal - PC Linux - 4 GB Flash Backed Cache

Manufacturer : Lenovo Group Limited

Manufacturer Part No : 4Y37A72486

Features

• PCIe 3.0 x8 host interface
• Two (8i adapter) or four (16i adapter) connectors to the drive backplanes

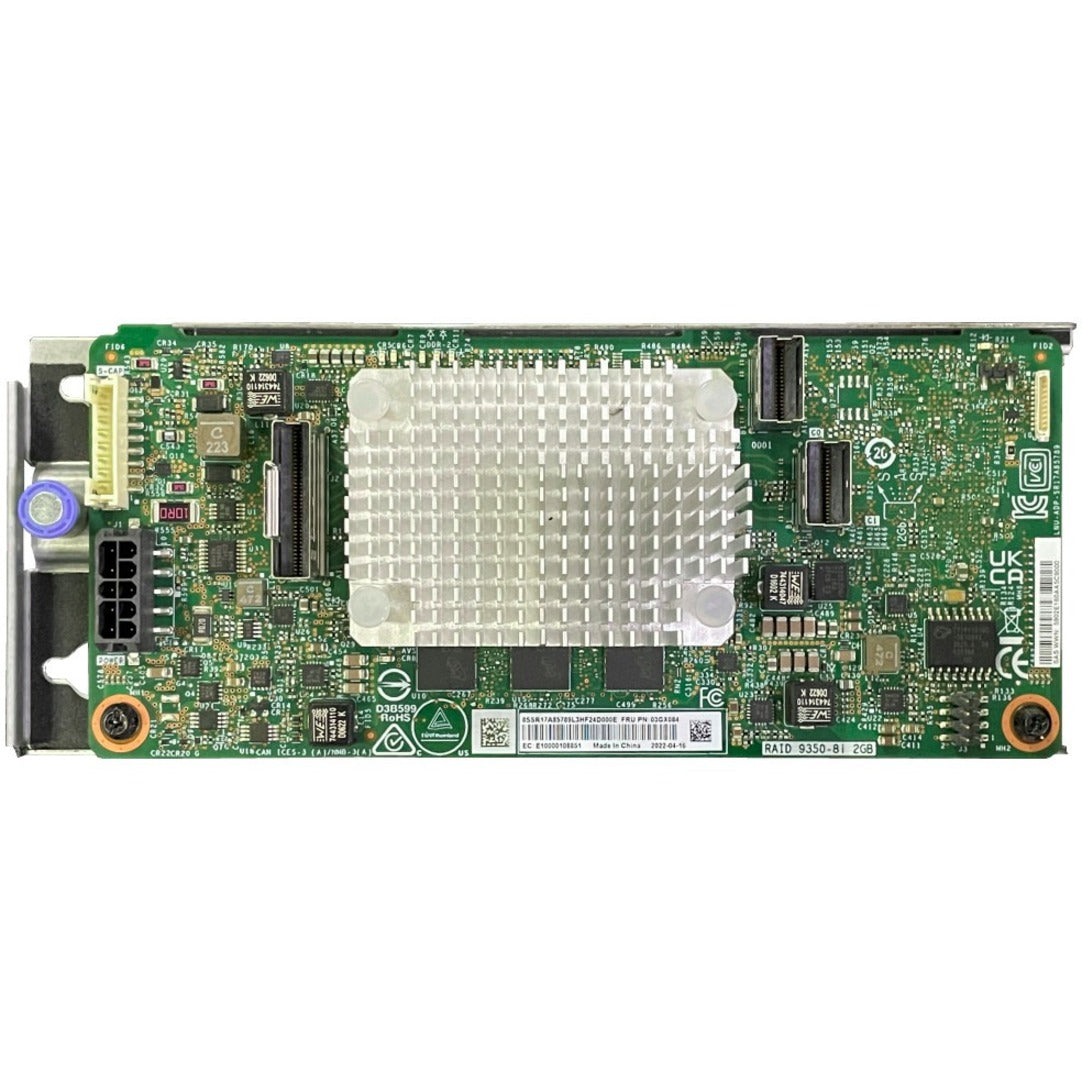

• Two adapter form factors: Low-profile PCIe adapter with broad server compatibility; Custom form-factor designed to not consume a standard PCIe slot
• 12 Gbps SAS/SATA RAID controllers based on the Adaptec SmartRAID 3152-8i and SmartRAID 3154-16i
• 2GB (8i) or 4GB (16i) of integrated flash-backed cache
• Connectivity for up to 8 (8i) or 16 (16i) internal SAS or SATA drives
• Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
• Support for intermixing of 12 Gbps and 6 Gbps drives.
• Standard support for RAID 0 1 10 5 50 6 60 RAID 1 Triple and RAID 10 Triple
• Support for JBOD (non-RAID called "raw" or "HBA mode" in Adaptec parlance) drive state
