• Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey
    Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey
1 1

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey

SKU: 1033037963      MFR: Leviton Mfg. Company Inc

Product Description

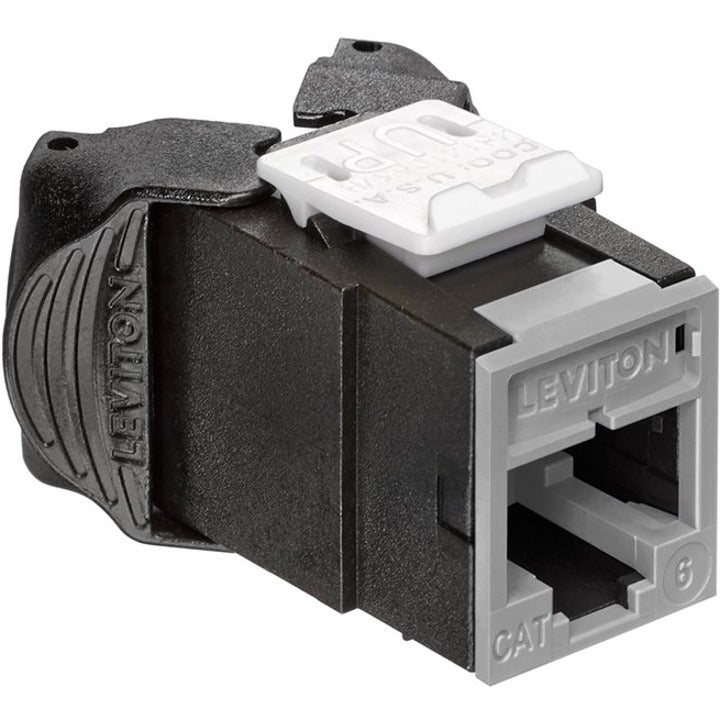

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey - 1 x RJ-45 Network Female - Gray

Manufacturer : Leviton Mfg. Company Inc

Manufacturer Part No : 61UJK-RG6

Features

  • Independently tested and guaranteed to exceed all componentpermanent link and channel margins
  • Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet RFT maintains contact force between plug and connector preventing arcing from intermittent disconnects
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short connector design supports a wider range of applications (e.g. shallow boxes enclosures bend radius etc.)
  • Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Connector supplied with interchangeable icons (voice data A/V and blank color coded to match the connector face) for easy identification and tracking of data voice or other functions
  • Connector with internal shutter protects against dust and debris
  • Tine geometry prevents arcing damage where plug and connector make contact

Product Details

Product TypeNetwork Connector
Environmentally FriendlyYes
Environmental CertificationRoHS 2
Product MaterialDie-cast Zinc
Country of OriginUnited States
Height0.9"
Width0.6"
Depth1.3"
ColorGray
Connector TypeRJ-45 Network - Female
Brand NameLeviton
FeaturesStranded
Connector Details1 x RJ-45 Network Female
ManufacturerLeviton Mfg. Company Inc
Product NameAtlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey
Product LineAtlas-X1
Manufacturer Part Number61UJK-RG6
Manufacturer Website Addresshttp://www.leviton.com
Marketing InformationAPPLICATION
Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connectors support 1000BASE-T networks. The connector is part of a complete Atlas-X1 Cat 6 UTP system ideal for the most demanding mission-critical network applications. The connector supports emerging technologies and will easily adapt to network trends.

SPECIFICATION
 The connector shall meet or exceed all requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 for Category 6 standards as well as Class E requirements described in ISO/IEC 11801. The connector shall comply with all National Electrical Codes be compliant with ANSI/TIA-1096-A be UL listed and be independently verified. The connector body shall be made of die-cast zinc and all plastic components shall be made of high-impact fire-retardant plastic rated UL 94V-0. The connector shall support tool-free termination/ re-termination and shall not require a specialized termination tool. The connector wiring shall be universal to accommodate T568A and T568B wiring schemes. The connector shall be available in 13 colors; more than established by the ANSI/TIA-606 standard. The connector shall be supplied with interchangeable icons and be offered with internal shutter and standard styles. It shall support Power over Ethernet up to 100 watts.
Product FamilyAtlas-X1
View full details
$19.99 USD
$19.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey - 1 x RJ-45 Network Female - Gray

Manufacturer : Leviton Mfg. Company Inc

Manufacturer Part No : 61UJK-RG6

Features

  • Independently tested and guaranteed to exceed all componentpermanent link and channel margins
  • Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
  • For Power over Ethernet RFT maintains contact force between plug and connector preventing arcing from intermittent disconnects
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short connector design supports a wider range of applications (e.g. shallow boxes enclosures bend radius etc.)
  • Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Connector supplied with interchangeable icons (voice data A/V and blank color coded to match the connector face) for easy identification and tracking of data voice or other functions
  • Connector with internal shutter protects against dust and debris
  • Tine geometry prevents arcing damage where plug and connector make contact

Product Details

Product TypeNetwork Connector
Environmentally FriendlyYes
Environmental CertificationRoHS 2
Product MaterialDie-cast Zinc
Country of OriginUnited States
Height0.9"
Width0.6"
Depth1.3"
ColorGray
Connector TypeRJ-45 Network - Female
Brand NameLeviton
FeaturesStranded
Connector Details1 x RJ-45 Network Female
ManufacturerLeviton Mfg. Company Inc
Product NameAtlas-X1 Cat 6 Component-Rated UTP QuickPort Connector Grey
Product LineAtlas-X1
Manufacturer Part Number61UJK-RG6
Manufacturer Website Addresshttp://www.leviton.com
Marketing InformationAPPLICATION
Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connectors support 1000BASE-T networks. The connector is part of a complete Atlas-X1 Cat 6 UTP system ideal for the most demanding mission-critical network applications. The connector supports emerging technologies and will easily adapt to network trends.

SPECIFICATION
 The connector shall meet or exceed all requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 for Category 6 standards as well as Class E requirements described in ISO/IEC 11801. The connector shall comply with all National Electrical Codes be compliant with ANSI/TIA-1096-A be UL listed and be independently verified. The connector body shall be made of die-cast zinc and all plastic components shall be made of high-impact fire-retardant plastic rated UL 94V-0. The connector shall support tool-free termination/ re-termination and shall not require a specialized termination tool. The connector wiring shall be universal to accommodate T568A and T568B wiring schemes. The connector shall be available in 13 colors; more than established by the ANSI/TIA-606 standard. The connector shall be supplied with interchangeable icons and be offered with internal shutter and standard styles. It shall support Power over Ethernet up to 100 watts.
Product FamilyAtlas-X1
