Extends Distances of 4K@30Hz up to 40 m (130 ft.) and 1080p up to 70 m (230 ft.) Using Single Ethernet Cable Power over Cable IR/RS232 Support

• Extends an HDMI signal using HDBaseT up to 70 m (230 ft.) from an HDMI source to an HD monitor or projector using one Ethernet cable
• Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4K displays
• Supports lossless LPCM 8 channel uncompressed audio formatting 7.1/5.1 surround sound

Easily extend an ultra-high-definition signal via single Ethernet cable.

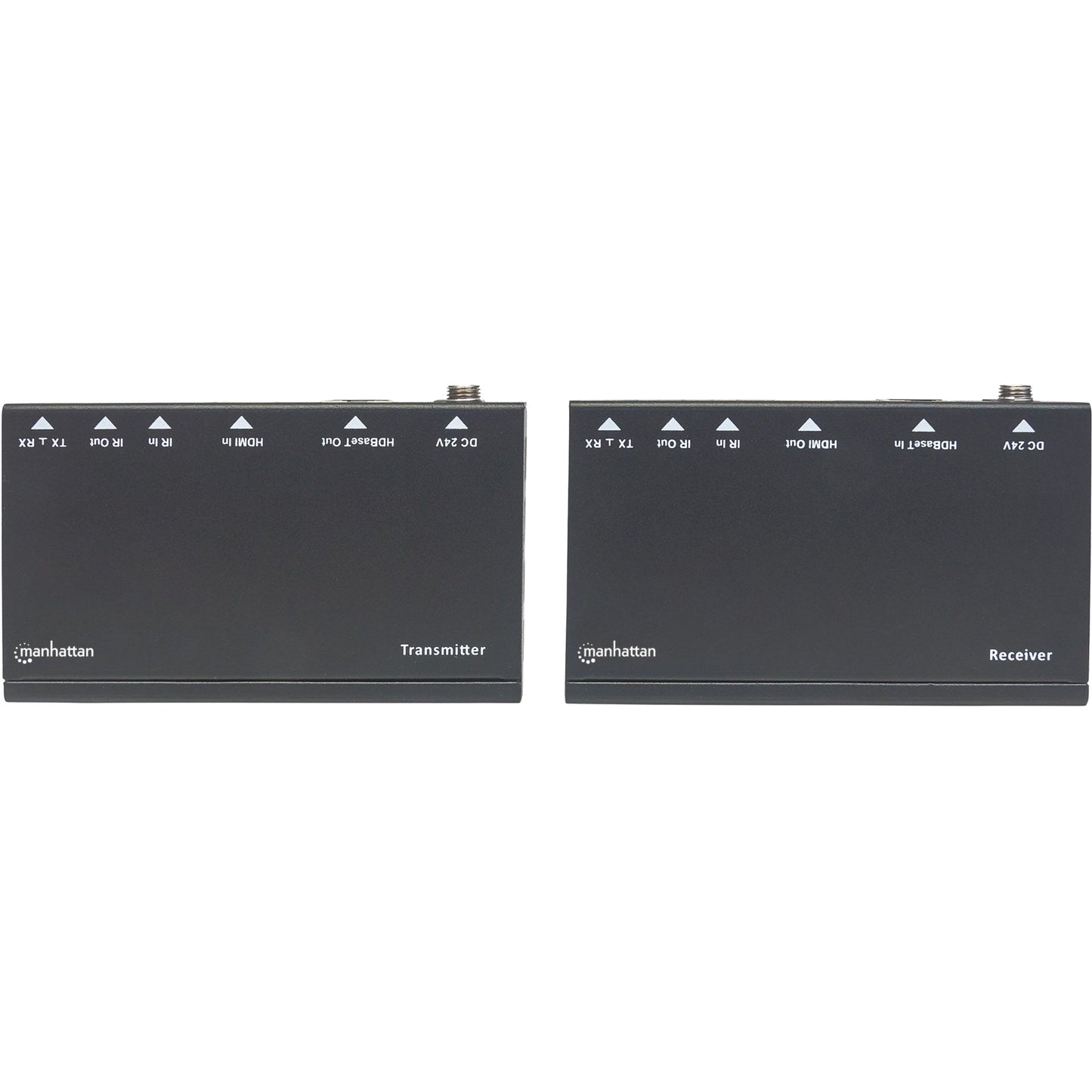

The Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is the ideal solution for connecting virtually any digital HDMI source (PlayStation Xbox Blu-ray player satellite receiver digital recorder etc.) to an HD display or projector up to 70 m (230 ft.) away - UHD up to 40 m (130 ft.) - via a single Ethernet cable. These powered 4K HDMI HDBaseT over Ethernet Extender Kits provide reliable 1080p or 4K resolution video and multichannel audio transmission over longer distances than HDMI cables alone. Plus the transmitter and receiver modules have additional 3.5 mm ports for bi-directional Infrared (IR) allowing for the control of the devices at either location.

Flexible Solution for Many A/V Applications
Ideal for trade shows classrooms home theater conference rooms business office and retail applications the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. Ethernet cabling - UTP SSTP or SFTP (cables not included) - is less expensive and easier to install than HDMI cabling and in-line signal repeaters. When used with our HDMI HDBaseT over Ethernet Extender Kit these cables deliver a clear sharp and vivid picture over longer distances.

Quality Construction and Easy Installation
HDCP compliant with HDMI the Manhattan 4K HDMI HDBaseT over Ethernet Extender Kit is tested to guarantee performance and reliability. It installs quickly without having to run software or install additional hardware. It comes with a power adapter which powers the receiver or transmitter over Ethernet from the unit using the power adapter which frees up a power plug for more important applications.

Features:

• Extends an HDMI signal using HDBaseT up to 70 m (230 ft.) from an HDMI source to an HD monitor or projector using one Ethernet cable
• Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4K displays
• Supports lossless LPCM 8 channel uncompressed audio formatting 7.1/5.1 surround sound
• Offers wideband bi-directional IR transmit (Tx) and receive (Rx) cables that allow for convenient remote control of UHD signal source or display
• Provides RS232/serial port to connect a control processor that can carry out commands ranging from simple to complex (such as turn on a device change display resolution control room lighting etc.)
• Supports Power over Cable (PoC) power Rx unit with powered Tx unit and vice versa
• Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
• Plug and play - requires no installation or configuration
• Compatible with PlayStation and Xbox game systems Blu-ray players set-top boxes satellite receivers and more
• Gold-plated contacts for corrosion-free connections
• For additional distance capabilities use 15 m HDMI cables (see part number 323260) on both transmitter and receiver
• Three-year warranty
