• 3G/HDSDI output
• 2.5 Megapixel (1/2.8") sensor (4:2:2 color)
• Interchangeable CS/C lens mount (sold separately)
• Full-HD resolutions: 1920 x 1080p 1920 x 1080i and 1280 x 720p
• Frame rates: 60 59.94 50 30 29.97 25 24 23.98 fps
• Remote adjust through RS485 (Visca) or OSD menu joystick
• Wide range of picture adjustment settings including paint (red/blue) white balance gain control pedestal (blacks) white clip exposure gamma and more
• Includes 12V power supply in box

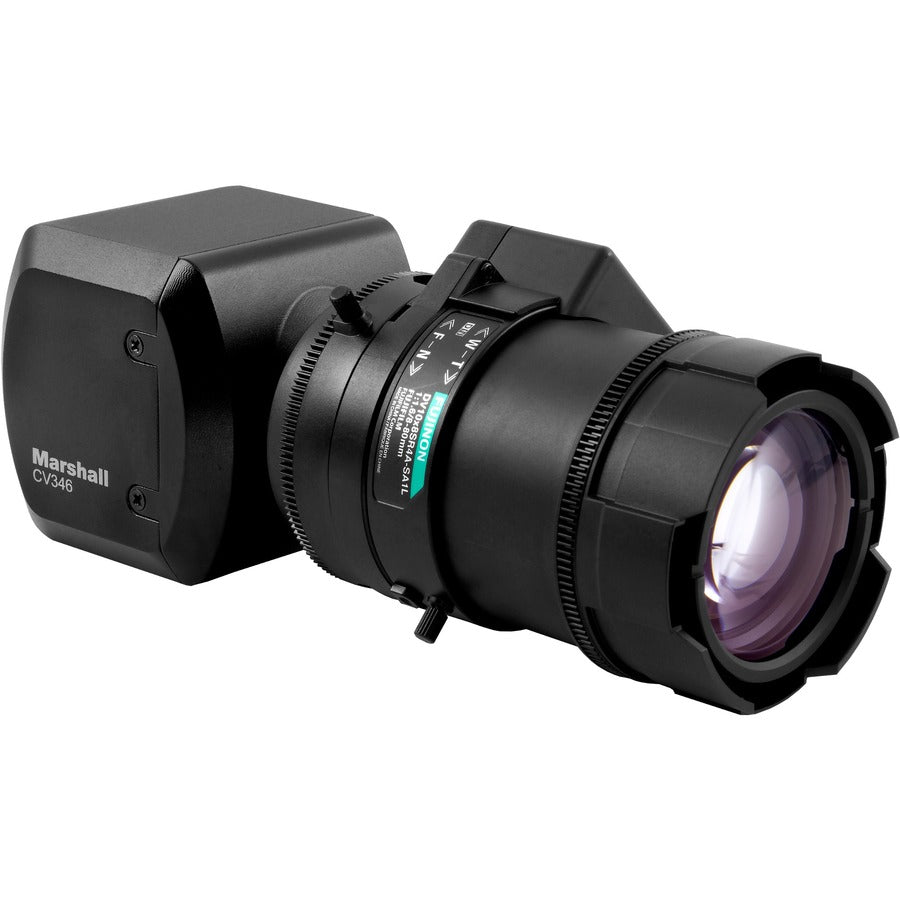

The Marshall CV346 Full-HD Miniature Camera offers performance flexibility and value in a compact form factor. Built around a next generation 2.5-Megapixel 1/2.8-inch sensor the CV346 delivers ultra-crisp clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

The CV346 utilizes a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power control and stereo audio input (embedded on HDMI & 3G/HDSDI outputs). The CV346's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.

The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue) white balance exposure gain control pedestal (blacks) white clip gamma and more.

• Compact Full-HD Camera (3G/HDSDI & HDMI)
• RS-485 wire (+/-) Input
• 12V Power 2.1 mm Plug (Center Contact)
• Hirose Connector Plugs into Camera
• OSD Menu Control
• TRS Audio Mic/Line-level input
