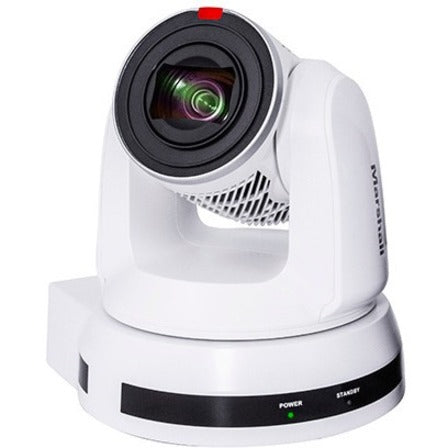

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.

High Performance Video Output

At its core the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video with support for HD 1920x1080p and 1280x720p.

Versatile Camera Positioning

The CV630-IP is equipped with synchronous pan tilt and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm with a nearly 70-degree angle-of-view at its widest.

Simultaneous Networked and Streaming Outputs

Multiple simultaneous video streams are available over HDMI 3G-SDI and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.

Flexible Control Options

The CV630-IP offers easy control over iris shutter white balance focus pan/tilt speeds and more controllable by IR remote networked video management software (VMS) or RS-232/ RS-422 with support for Visca Visca over IP Pelco and Onvif platforms.Additionally the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller providing intuitive adjustment of pan/tilt/zoom pan/tilt speeds white balance and more with with one button dials and rocker control.
