Marshall Miniature CV503 2.5 Megapixel HD Surveillance Camera

Marshall Miniature CV503 2.5 Megapixel HD Surveillance Camera

SKU: 1065245084      MFR: Marshall Electronics Inc

GTIN: 801813194098

Product Description

Marshall Miniature CV503 2.5 Megapixel HD Surveillance Camera - 1920 x 1080 Varifocal Lens - CMOS

Manufacturer : Marshall Electronics Inc

Manufacturer Part No : CV503

Features

  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
  • Full-HD resolutions: 1920 x 1080p 1920 x 1080i and 1280 x 720p
  • Frame rates: 60 59.94 50 30 29.97 25 24 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue) white balance gain control pedestal (blacks) white clip exposure gamma and more
  • Compatible with Marshall RCP Control Unit p/n: CV-RCP-V2
  • Includes 12V power supply in box

Product Details

Product TypeSurveillance Camera
Maximum Video Resolution1920 x 1080
Maximum Focal Length3.60 mm
Fixed Focal Length3.60 mm
Image Sensor TypeCMOS
Effective Camera Resolution2.5 Megapixel
HD RecordingYes
Color SupportedColor
Connectivity TechnologyWired
Brand NameMarshall
Lens TypeVarifocal
ManufacturerMarshall Electronics Inc
Product ModelCV503
Product NameMiniature Full-HD Camera (3G/HDSDI)
Product LineMiniature
Manufacturer Part NumberCV503
Manufacturer Website Addresshttp://www.mars-cam.com
Marketing Information

The Marshall CV503 Full-HD Miniature Camera offers performance flexibility and value in a tiny form factor. Built around a next generation 2.5-Megapixel 1/2.86-inch sensor the CV503 delivers ultra-crisp clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

The CV503 utilizes a full-sized BNC (3G/HDSDI) output on rear panel and locking I/O connection for power control and stereo audio input (embedded on 3G-SDI output). The CV503's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV503 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue) white balance exposure gain control pedestal (blacks) white clip gamma and more.
Recording FormatsHD
Package Contents
  • Miniature Full-HD Camera (3G/HDSDI)

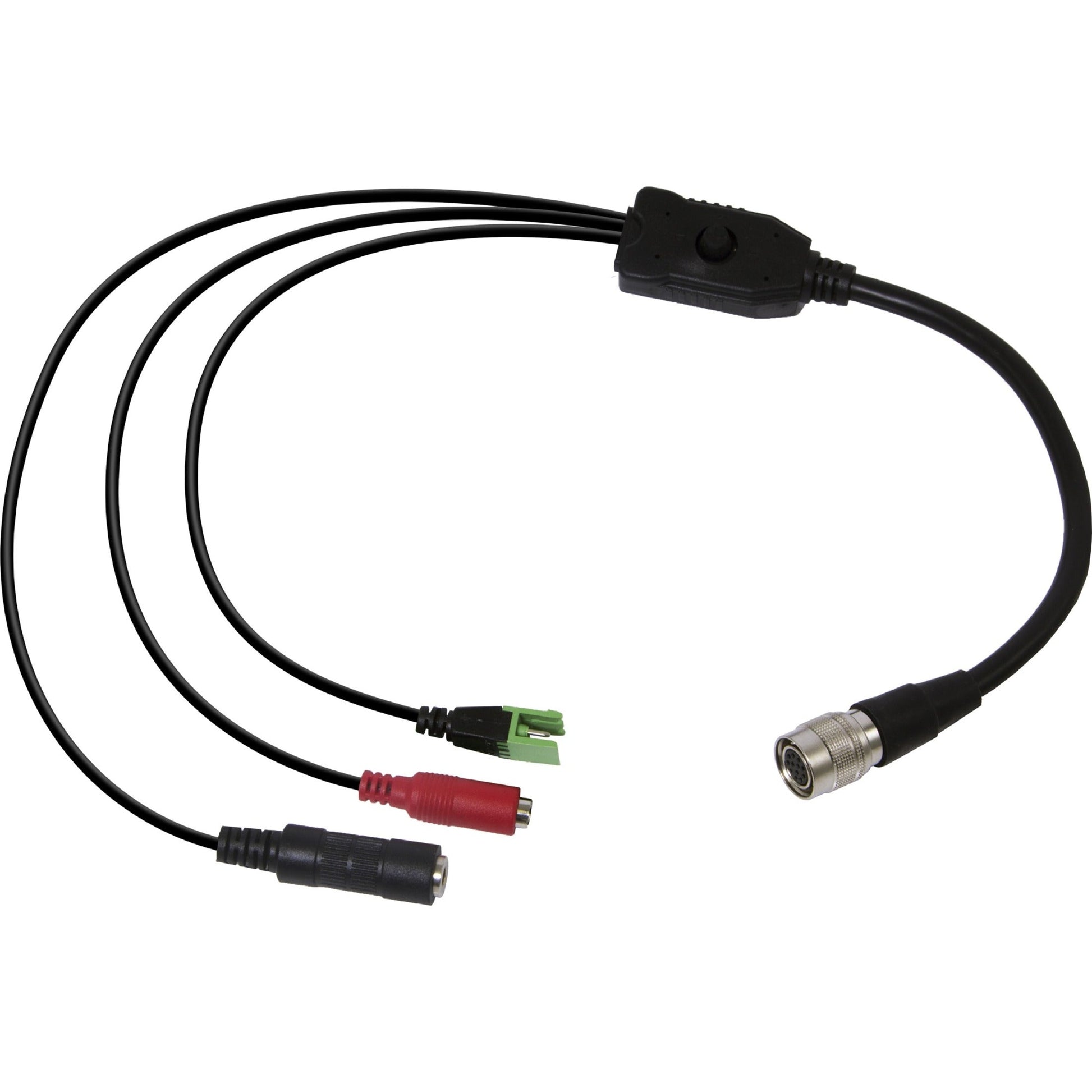

  • Hirose Breakout Cable
  • 12V Power Supply in Box
Product FamilyMiniature
View full details
$449.99 USD
$449.99
Sale Sold out

Back Order

Get it by Sat, Aug 08 - Thu, Aug 13


Update


Shipping calculated at checkout.

Marshall Miniature CV503 2.5 Megapixel HD Surveillance Camera - 1920 x 1080 Varifocal Lens - CMOS

Manufacturer : Marshall Electronics Inc

Manufacturer Part No : CV503

Features

  • 3G/HDSDI output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • Interchangeable M12 lens mount (includes stock 3.6mm lens (72°H. AOV))
  • Full-HD resolutions: 1920 x 1080p 1920 x 1080i and 1280 x 720p
  • Frame rates: 60 59.94 50 30 29.97 25 24 23.98 fps
  • Remote adjust through RS485 (Visca) or OSD menu joystick
  • Wide range of picture adjustment settings including paint (red/blue) white balance gain control pedestal (blacks) white clip exposure gamma and more
  • Compatible with Marshall RCP Control Unit p/n: CV-RCP-V2
  • Includes 12V power supply in box

Product Details

Product TypeSurveillance Camera
Maximum Video Resolution1920 x 1080
Maximum Focal Length3.60 mm
Fixed Focal Length3.60 mm
Image Sensor TypeCMOS
Effective Camera Resolution2.5 Megapixel
HD RecordingYes
Color SupportedColor
Connectivity TechnologyWired
Brand NameMarshall
Lens TypeVarifocal
ManufacturerMarshall Electronics Inc
Product ModelCV503
Product NameMiniature Full-HD Camera (3G/HDSDI)
Product LineMiniature
Manufacturer Part NumberCV503
Manufacturer Website Addresshttp://www.mars-cam.com
Marketing Information

The Marshall CV503 Full-HD Miniature Camera offers performance flexibility and value in a tiny form factor. Built around a next generation 2.5-Megapixel 1/2.86-inch sensor the CV503 delivers ultra-crisp clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

The CV503 utilizes a full-sized BNC (3G/HDSDI) output on rear panel and locking I/O connection for power control and stereo audio input (embedded on 3G-SDI output). The CV503's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV503 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue) white balance exposure gain control pedestal (blacks) white clip gamma and more.
Recording FormatsHD
Package Contents
  • Miniature Full-HD Camera (3G/HDSDI)
  • Hirose Breakout Cable
  • 12V Power Supply in Box
Product FamilyMiniature
