• Full-sized 3G/HDSDI (BNC) output
• 2.5 Megapixel (1/2.86") sensor (4:2:2 color)

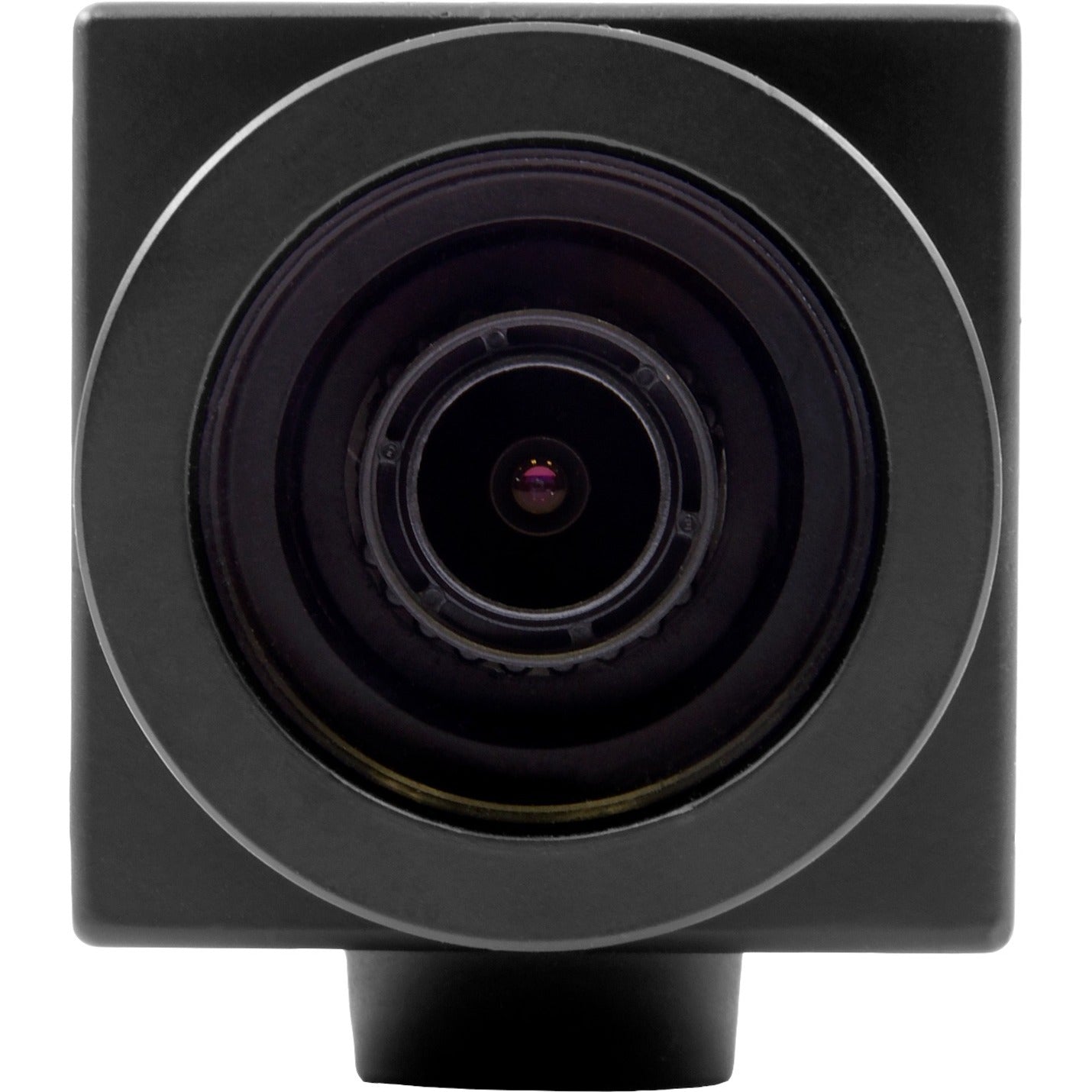

• Interchangeable M12 lens mount includes stock 3.6mm lens (72°H. AOV)

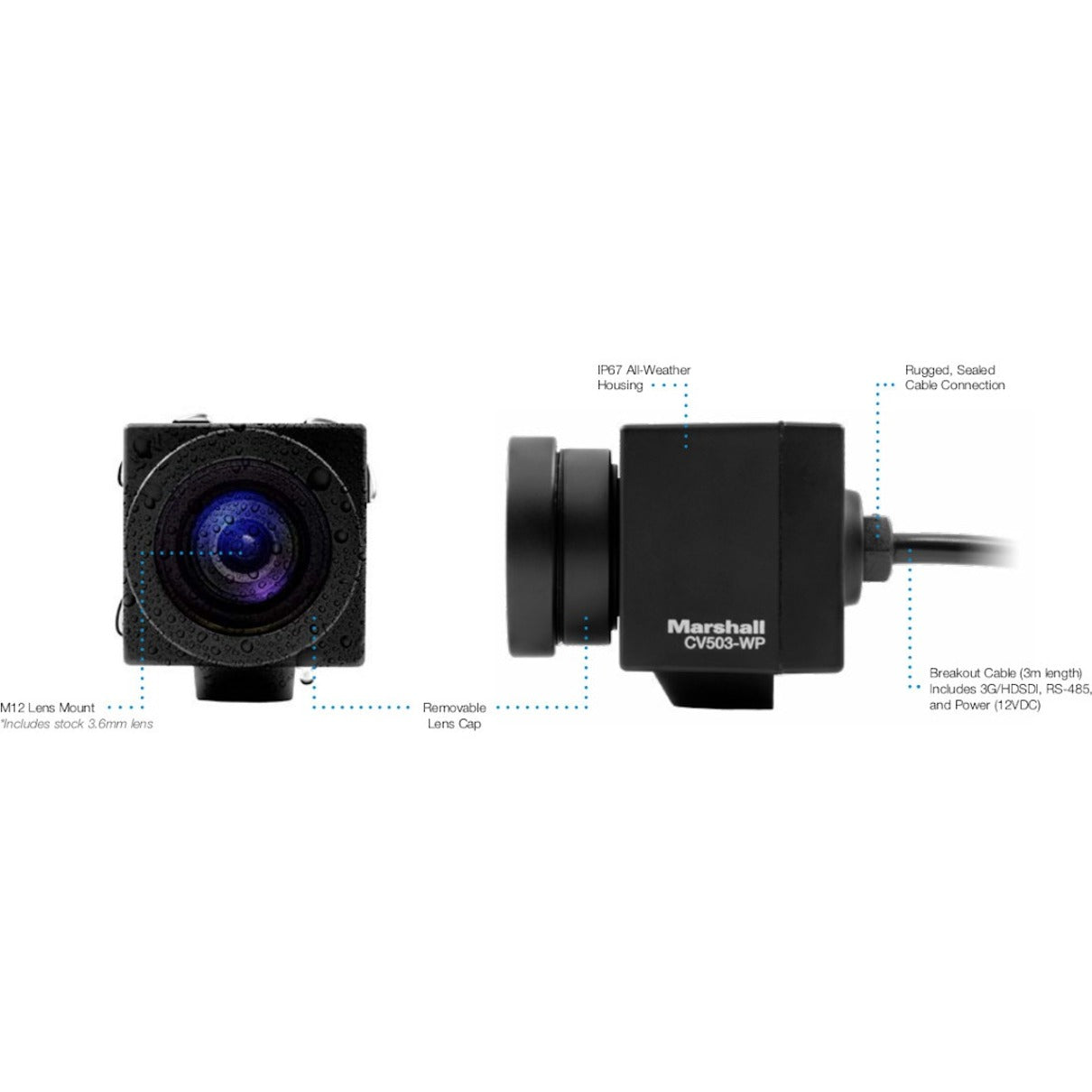

• IP67-rated weatherproof housing wide lens cap for flexible wide shots
• Full-HD resolutions: 1920 x 1080p 1920 x 1080i and 1280 x 720p
• Frame rates: 60 59.94 50 30 29.97 25 24 23.98 fps
• Remote adjustable through RS485 (Visca) or OSD menu joystick
• Wide range of picture adjustment settings including white balance color gain control pedestal (blacks) white clip exposure gamma and more

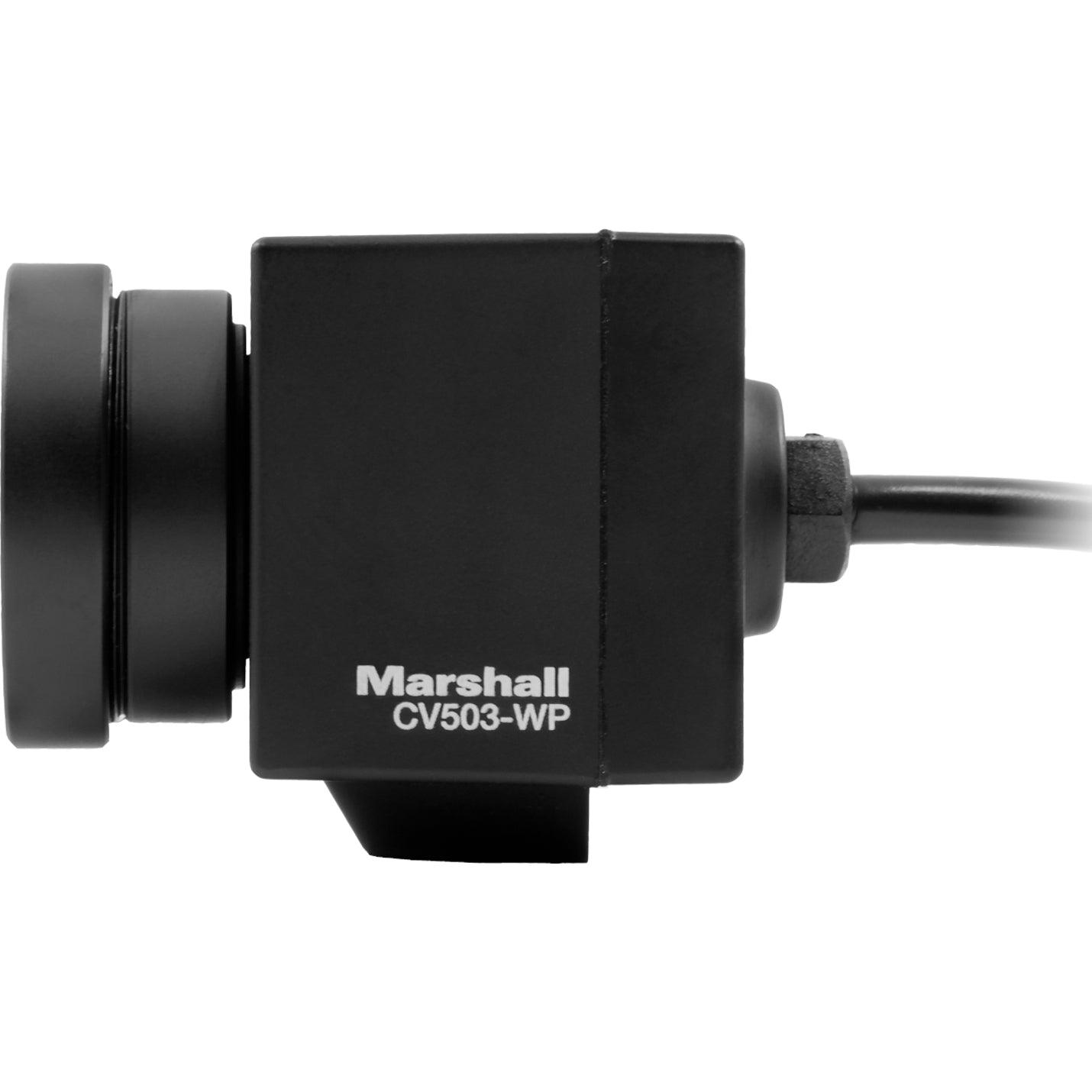

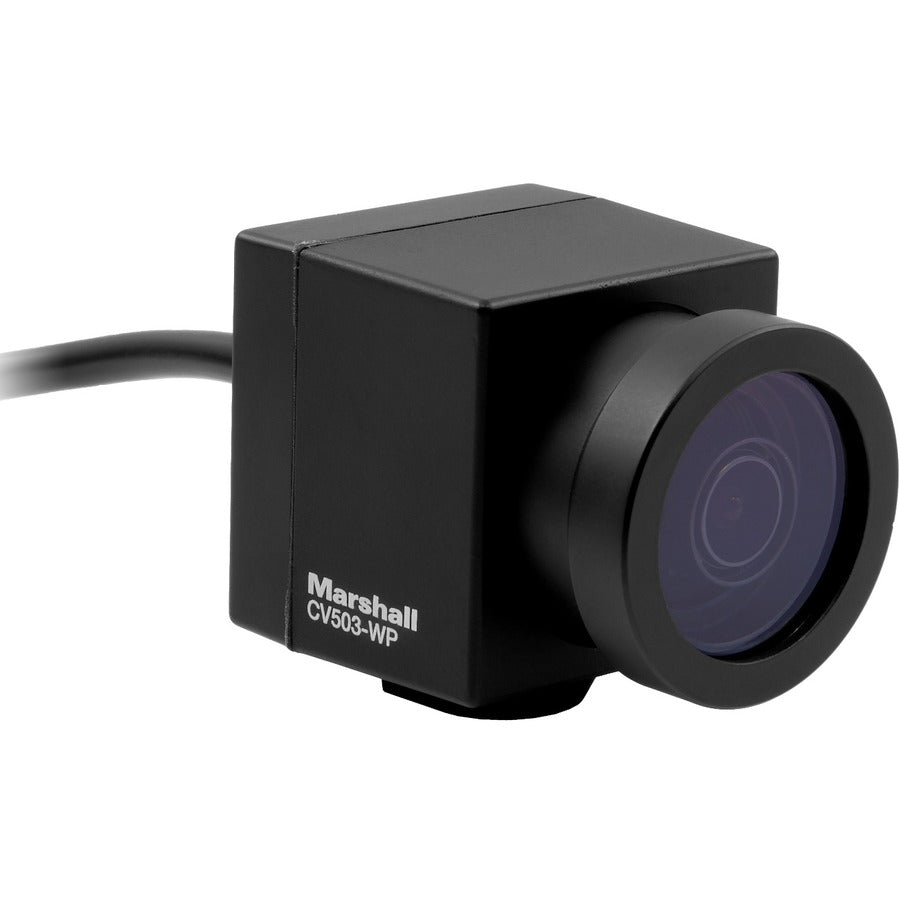

The Marshall CV503-WP Weatherproof Miniature HD Camera is the professional solution for capturing crisp video in true color at outdoor broadcast events and AV applications where weather becomes a factor. The CV503-WP offers interchangeable lenses remote adjustable settings and protection from the elements in a compact IP67-rated housing.

Built around a next generation 2.5-Megapixel 1/2.86-inch sensor the CV503-WP delivers ultra-crisp clear progressive video up to 1920x1080p at 60fps and interlaced 1920x1080i at 60fps.

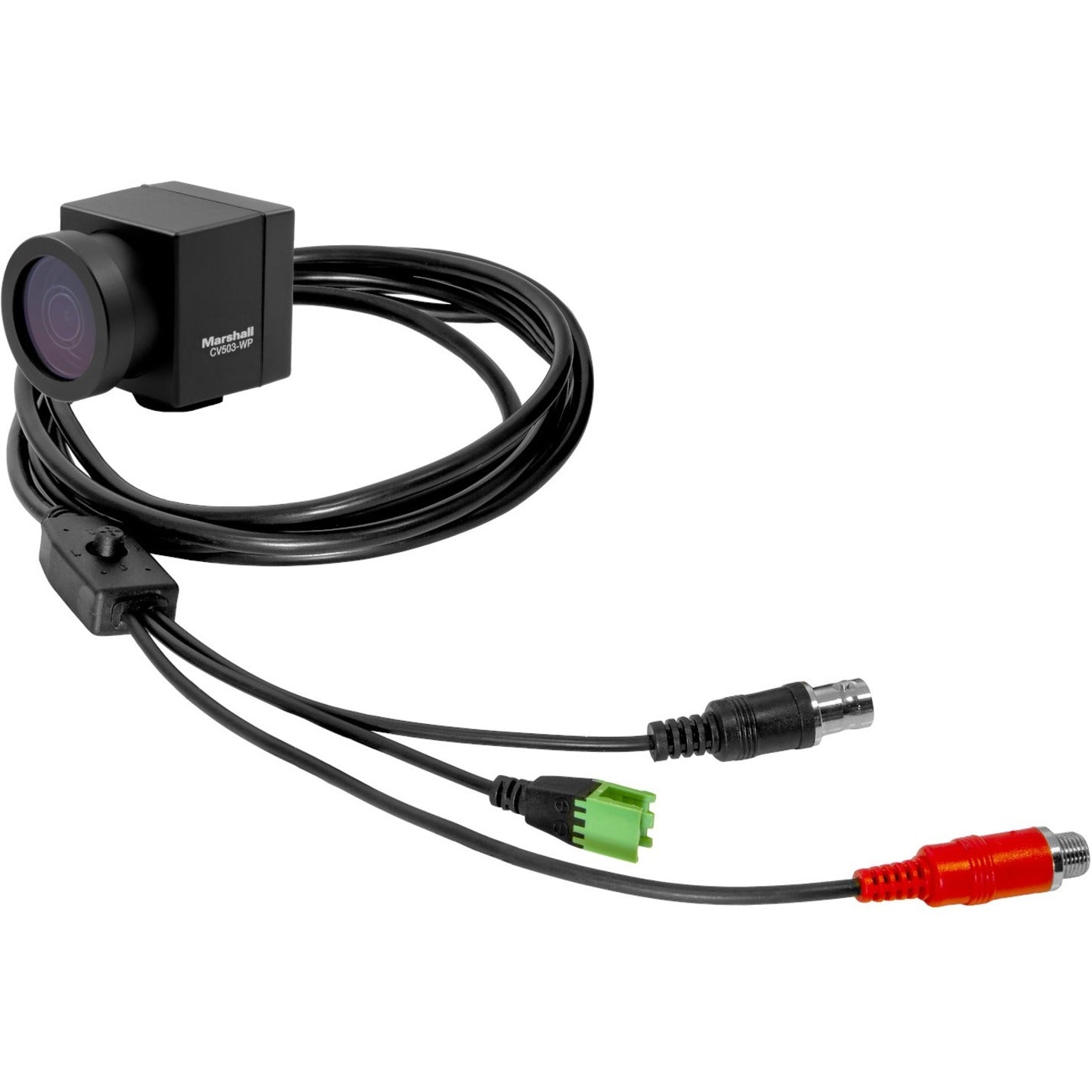

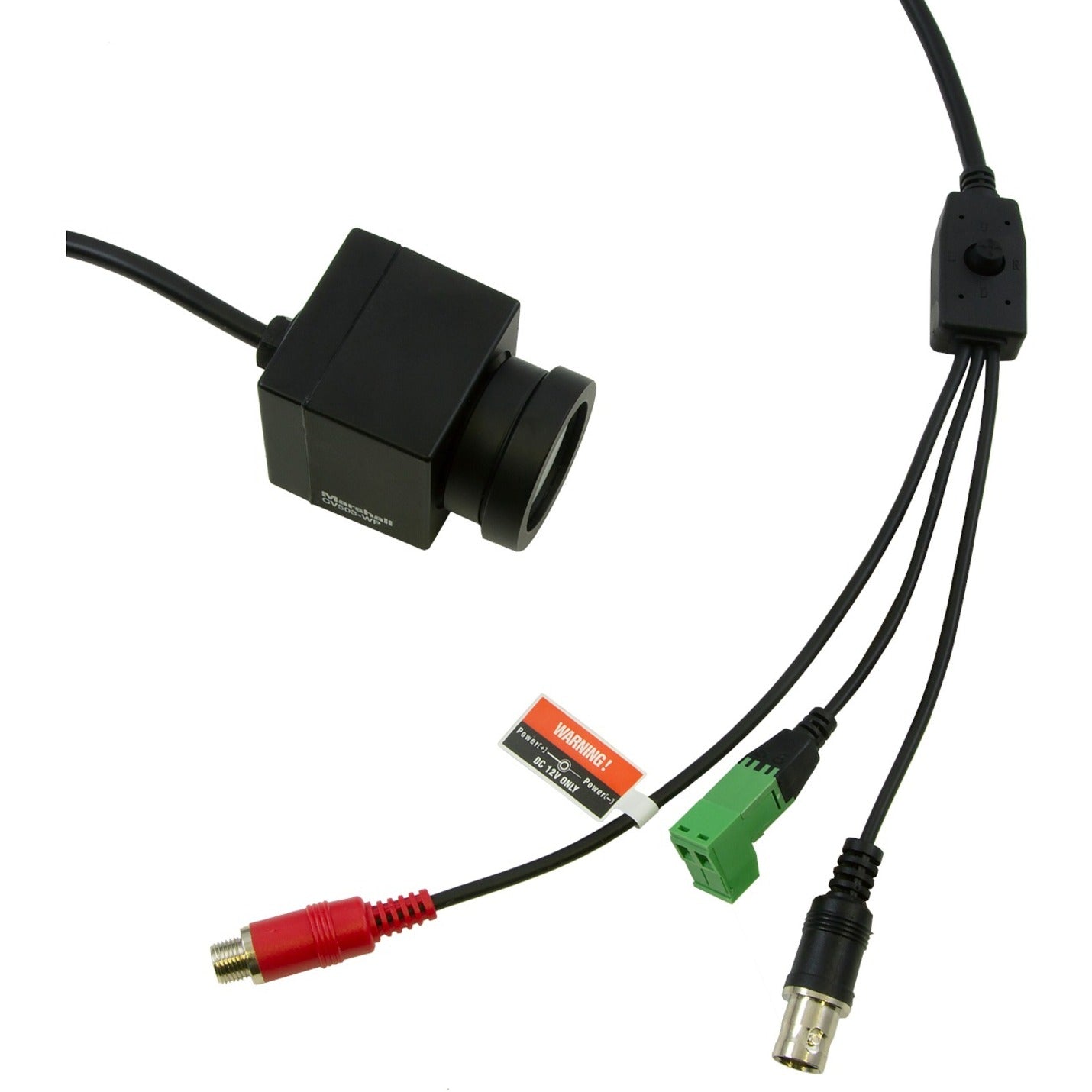

The CV503-WP utilizes a flexible 10' (3m) weatherproof cable that carries video control and power to a full-sized 3G/HD-SDI (BNC) output RS485 connection and locking 12V power connector. The CV503's threaded M12 lens mount offers a wide range of prime lens options.

The CV503-WP can capture detailed shots from impossible angles while maintaining an ultra-discreet presence. Remote adjustment of a wide range of picture settings including white balance red/blue exposure gain control pedestal (blacks) white clip gamma and more are delivered via common RS485 (Visca) or OSD menu joystick.

CV503-WP Applications:

The CV503-WP is suitable for use in outdoor broadcast events and Pro AV workflows including live broadcast productions sportscast newscast reality television concerts corporate government military house of worship and many more.
