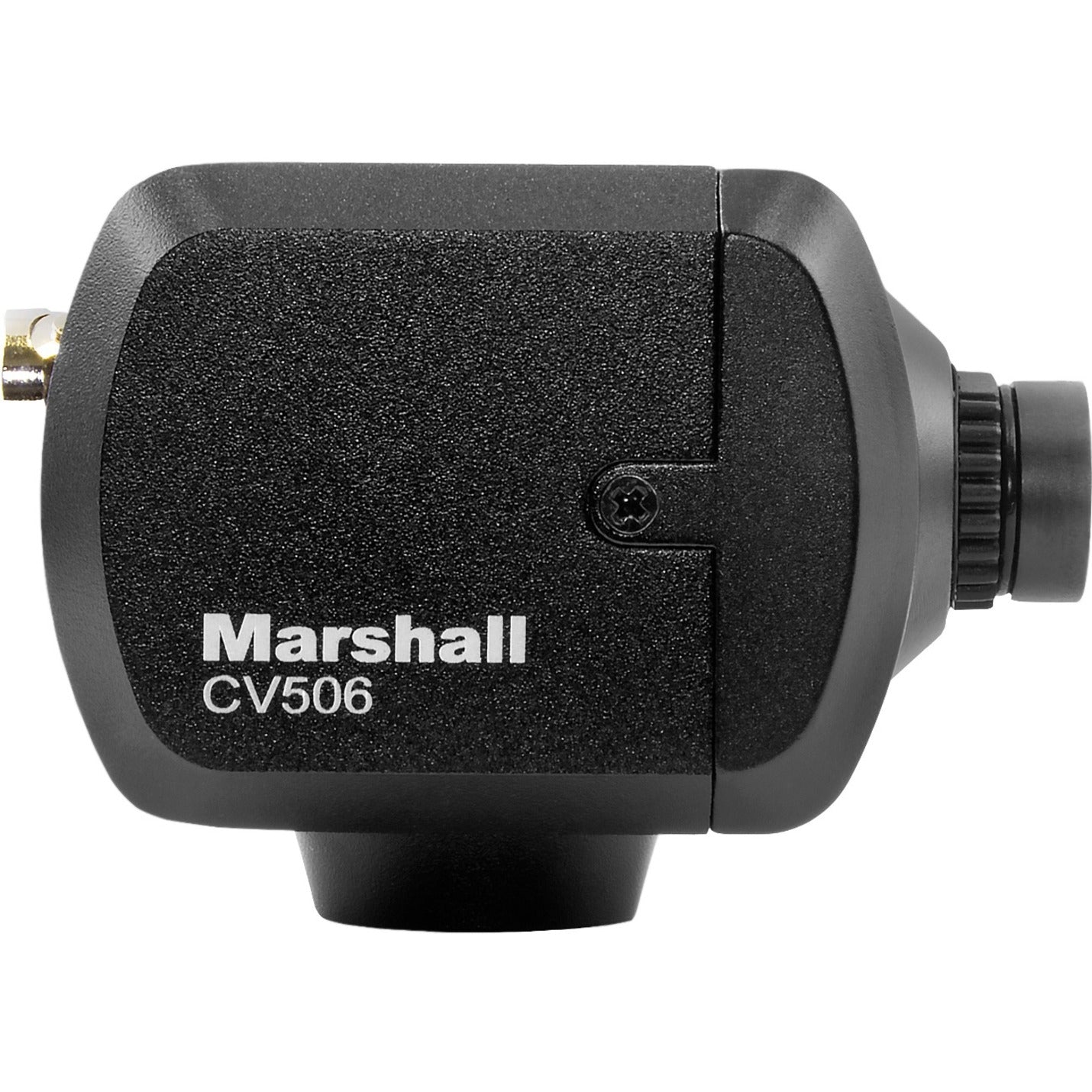

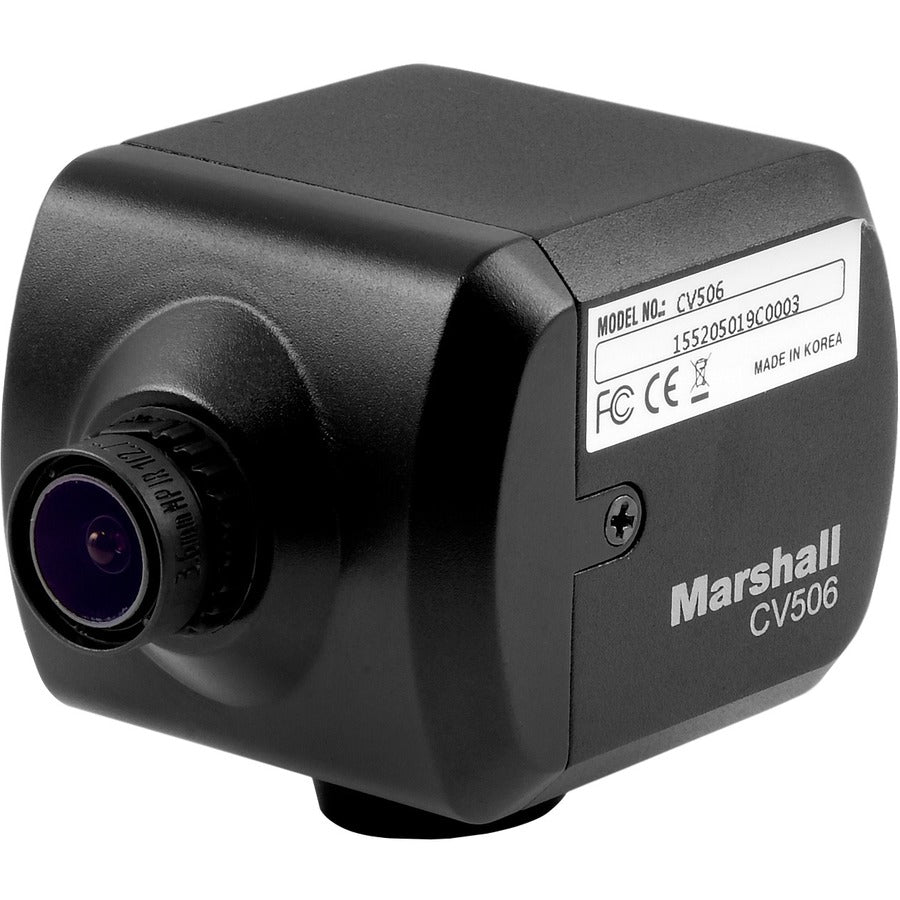

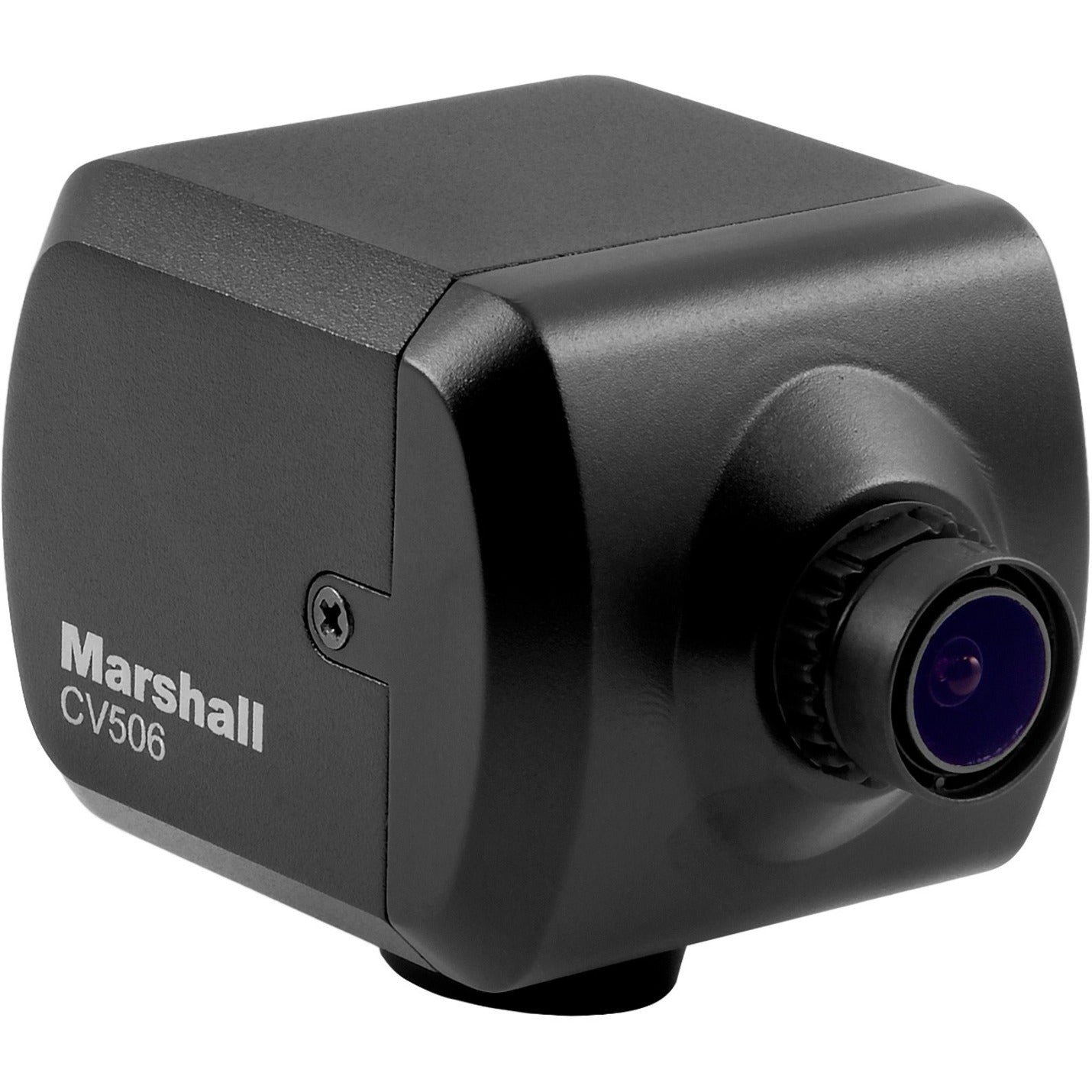

The Marshall CV506 Full-HD Miniature Camera with HDMI offers performance flexibility and value in a tiny form factor. Built around a next generation 2.5-Megapixel 1/2.86-inch sensor the CV506 delivers ultra-crisp clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 60/59/50fps.

The CV506 utilizes full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power control and stereo audio input (embedded on 3G-SDI output). The CV506's threaded M12 lens mount offers a wide range of prime and varifocal lens options.

The CV506 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue) white balance exposure gain control pedestal (blacks) white clip gamma and more.

• Miniature Full-HD Camera (3G/HDSDI & HDMI)
• Hirose Breakout Cable
• 12V Power Supply in Box
