Marshall RS7-HR Signal Splitter
Marshall RS7-HR Signal Splitter
SKU: 1070119179 MFR: Marshall Electronics Inc
GTIN: 801813225884
Product Description

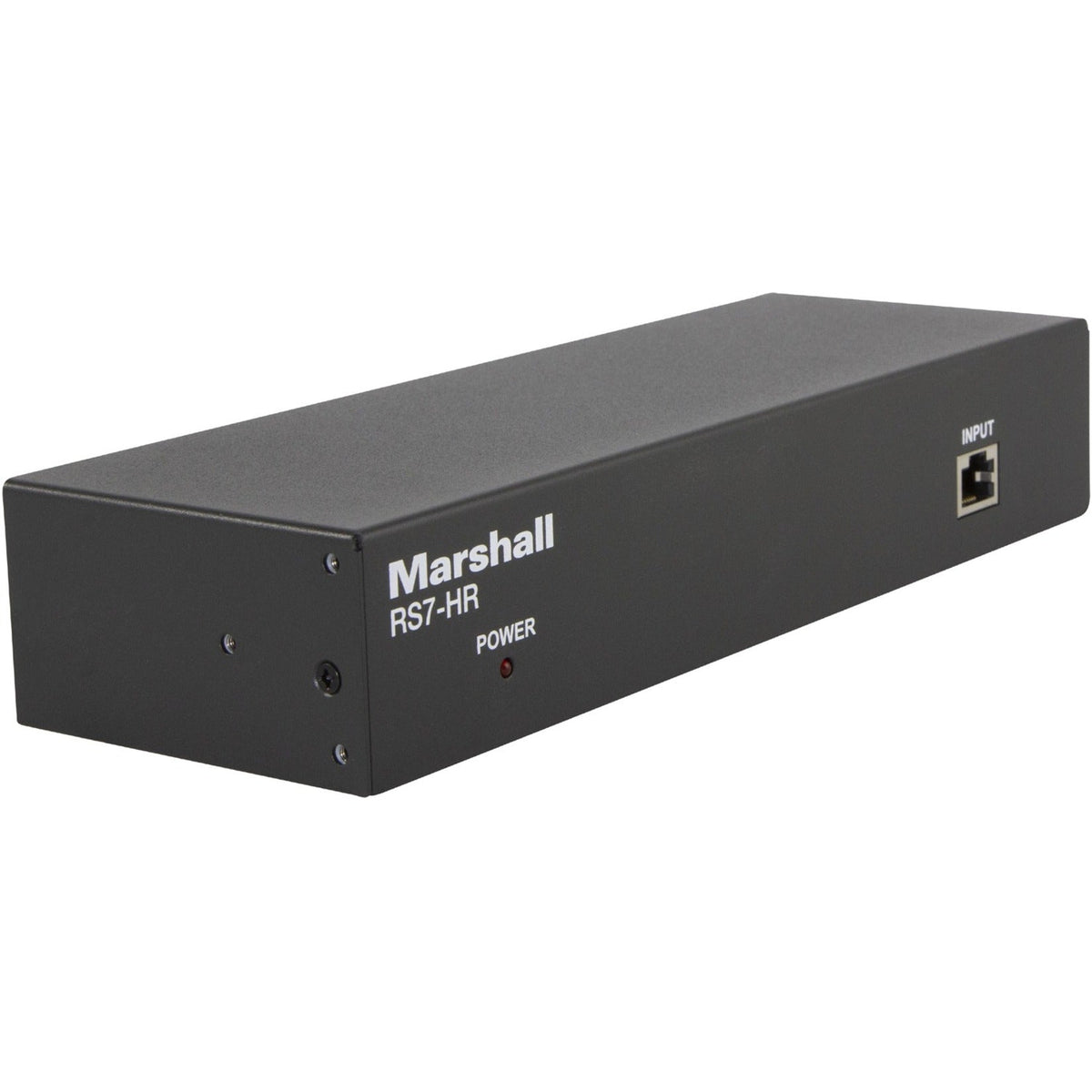

Marshall RS7-HR Signal Splitter
Manufacturer : Marshall Electronics Inc
Manufacturer Part No : RS7-HR
Features
- Splits one Cat (RJ45) control cable to 7 cameras via Home Run.
- Easy and clean setup from Marshall Controllers (VS-PTC-IP VS-PTC-200) and others.
- Extends usable RS232 Cat cable runs for control of cameras to 100m from controller to RS7-HR box and another 100m to each of seven camera locations (200m total). Using RS422 its extends (300m + 300m for a total of 600m).
- Easy access dip switches to switch between RS232 and RS422.
- Refresh button is used when any changes are made (add/remove dip switch change)
- Rack mount ears provided (1 pair) for 1RU 19" rack mount and small ears (1 pair) for optional table or wall mount.
Product Details
The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:
- Before connecting your equipment please select RS232 or RS422 on the back of the unit
- Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
- On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you may need optional CV620-CABLE-07 Adapters for RS232)
- You will now connect power to the RS7-HR you will see a red indicator light appear on the front of the unit now you will push the refresh button once
- If you disconnect a camera or add a camera you will need to push the refresh button again
Out Of Stock
Update
Couldn't load pickup availability
![Marshall RS7-HR Signal Splitter](http://tekmentum.com/cdn/shop/files/1070119179_f7e857d3-f089-46a9-95c5-8c6490cb9c85.jpg?v=1698550824&width=1445)
![Marshall RS7-HR Signal Splitter](http://tekmentum.com/cdn/shop/files/1070119179_9f9f4105-3ae4-4c99-a2ec-22e266e98be1.jpg?v=1698550824&width=1445)
![Marshall RS7-HR Signal Splitter](http://tekmentum.com/cdn/shop/files/1070119179_a381c5cd-4e7f-4c41-9513-8b44c08fea76.jpg?v=1698550824&width=1445)
![Marshall RS7-HR Signal Splitter](http://tekmentum.com/cdn/shop/files/1070119179_431d70f9-fa5b-4c1f-89e1-66ce5980f1f6.jpg?v=1698550824&width=1445)
Marshall RS7-HR Signal Splitter
Manufacturer : Marshall Electronics Inc
Manufacturer Part No : RS7-HR
Features
- Splits one Cat (RJ45) control cable to 7 cameras via Home Run.
- Easy and clean setup from Marshall Controllers (VS-PTC-IP VS-PTC-200) and others.
- Extends usable RS232 Cat cable runs for control of cameras to 100m from controller to RS7-HR box and another 100m to each of seven camera locations (200m total). Using RS422 its extends (300m + 300m for a total of 600m).
- Easy access dip switches to switch between RS232 and RS422.
- Refresh button is used when any changes are made (add/remove dip switch change)
- Rack mount ears provided (1 pair) for 1RU 19" rack mount and small ears (1 pair) for optional table or wall mount.
Product Details
The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:
- Before connecting your equipment please select RS232 or RS422 on the back of the unit
- Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
- On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you may need optional CV620-CABLE-07 Adapters for RS232)
- You will now connect power to the RS7-HR you will see a red indicator light appear on the front of the unit now you will push the refresh button once
- If you disconnect a camera or add a camera you will need to push the refresh button again
