• Mellanox 100Gb/s QSFP28 Optical Transceiver

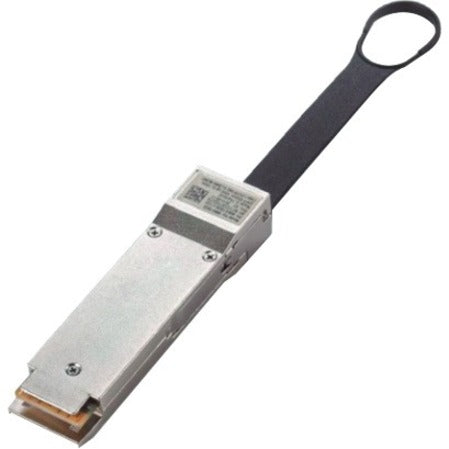

    Mellanox 100Gb/s QSFP28 Optical Transceiver
1 1

Mellanox 100Gb/s QSFP28 Optical Transceiver

Mellanox 100Gb/s QSFP28 Optical Transceiver

SKU: 1034140166      MFR: NVIDIA Corporation

GTIN: 7290108487015

Product Description

Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network Data Networking - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MMA1B00-C100D

Features

  • QSFP28 offers better usage with maximum efficiency and convenience
  • With 100GBase-SR4 technology get up to 100Gbps data transfer rate over optical fiber cable
  • Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
  • Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
  • With its thicker diameter to carry the light of multiple wavelengths multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
  • Hot-pluggable form factor for your convenience and simplicity of usage
  • QSFP28 with optical network application/usage for reliability and maximum efficiency

Product Details

Product TypeQSFP28
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Country of OriginIsrael
Connector TypeMPO
Brand NameMellanox
Form FactorHot-pluggable
ManufacturerNVIDIA Corporation
Product Name100Gb/s QSFP28 Optical Transceiver
Network Technology100GBase-SR4
Application/UsageOptical Network
Manufacturer Part NumberMMA1B00C100D
Manufacturer Website Addresshttp://www.nvidia.com
Marketing InformationMellanox® MMA1B00-C100 is a 4-channel pluggable QSFP28 optical transceiver designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber using a nominal wavelength of 850nm and is SFF-8665 compliant.

The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.

The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:

-Temperature with warning/alarm

-Supply voltage with warning/alarm

-Laser bias current

-Transmitted optical power with warning/alarm

-Received optical power with warning/alarm

Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Interfaces/Ports Details1 x MPO 100GBase-SR4 Network
Limited Warranty1 Year
View full details
$234.99 USD
$234.99
Sale Sold out

In Stock - 66 (Available by Thu, Jun 11 - Tue, Jun 16)


Update


Shipping calculated at checkout.

Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network Data Networking - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MMA1B00-C100D

Features

  • QSFP28 offers better usage with maximum efficiency and convenience
  • With 100GBase-SR4 technology get up to 100Gbps data transfer rate over optical fiber cable
  • Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
  • Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
  • With its thicker diameter to carry the light of multiple wavelengths multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
  • Hot-pluggable form factor for your convenience and simplicity of usage
  • QSFP28 with optical network application/usage for reliability and maximum efficiency

Product Details

Product TypeQSFP28
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Total Number of Ports1
Country of OriginIsrael
Connector TypeMPO
Brand NameMellanox
Form FactorHot-pluggable
ManufacturerNVIDIA Corporation
Product Name100Gb/s QSFP28 Optical Transceiver
Network Technology100GBase-SR4
Application/UsageOptical Network
Manufacturer Part NumberMMA1B00C100D
Manufacturer Website Addresshttp://www.nvidia.com
Marketing InformationMellanox® MMA1B00-C100 is a 4-channel pluggable QSFP28 optical transceiver designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber using a nominal wavelength of 850nm and is SFF-8665 compliant.

The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.

The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:

-Temperature with warning/alarm

-Supply voltage with warning/alarm

-Laser bias current

-Transmitted optical power with warning/alarm

-Received optical power with warning/alarm

Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Interfaces/Ports Details1 x MPO 100GBase-SR4 Network
Limited Warranty1 Year
