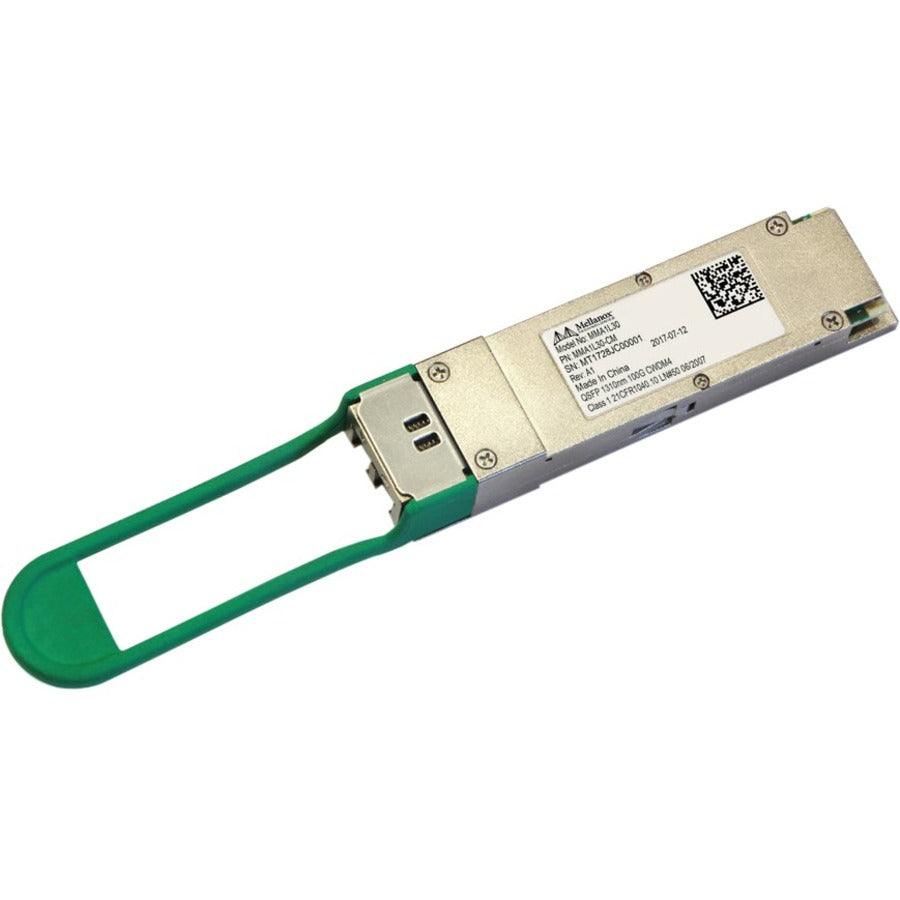

• Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver
    Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver
1 1

Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver

Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver

SKU: 1046130715      MFR: NVIDIA Corporation

GTIN: 7290108485639

Product Description

Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver - For Data Networking Optical Network - 1 x LC Duplex 100GBase-CWDM4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-CWDM4

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MMA1L30-CM

Features

  • Compliant with QSFP28 Standard: SFF-8665 Revision 1.9 SFF-8636 Revision 2.6
  • Compliant with CWDM4 MSA Revision 1.1
  • High speed I/O electrical interface (CAUI-4)
  • Single 3.3V supply voltage
  • Maximum power consumption 3.5W
  • 0 º-70 ºC case operating temperature
  • CWDM EML laser and PIN receiver array
  • QSFP28 MSA package with duplex LC connector
  • Two Wire Serial Interface with Digital Diagnostic Monitoring
  • RoHS compliant

Product Details

Product TypeQSFP28
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Country of OriginIsrael
Connector TypeLC
Brand NameMellanox
CompatibilityMSA Compliant
ManufacturerNVIDIA Corporation
Product ModelMMA1L30
Product Name100GbE QSFP28 CWDM4 Optical Transceiver
Network Technology100GBase-CWDM4
Product LineLinkX
Application/UsageData Networking
Manufacturer Part NumberMMA1L30-CM
Manufacturer Website Addresshttp://www.nvidia.com
Marketing Information

Mellanox® MMA1L30-CM transceiver is a single mode 4-channel (CWDM4) QSFP28 optical transceiver designed for use in 100 Gigabit Ethernet (GbE) links on up to 2km of single mode fiber. It is also qualified for use in Mellanox InfiniBand EDR end-to-end systems.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single fiber using a nominal wavelength of 1310nm for 100Gb/s optical transmission. Reversely on the receiver side the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.

It is compliant with the QSFP28 MSA IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I²C interface as specified by the QSFP28 MSA.

Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Interfaces/Ports Details1 x LC Duplex 100GBase-CWDM4 Network
Limited Warranty1 Year
Product FamilyLinkX
View full details
$945.99 USD
$945.99
Sale Sold out

In Stock - 17 (Available by Thu, Jun 11 - Tue, Jun 16)


Update


Shipping calculated at checkout.

Mellanox 100GbE QSFP28 CWDM4 Optical Transceiver - For Data Networking Optical Network - 1 x LC Duplex 100GBase-CWDM4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-CWDM4

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MMA1L30-CM

Features

  • Compliant with QSFP28 Standard: SFF-8665 Revision 1.9 SFF-8636 Revision 2.6
  • Compliant with CWDM4 MSA Revision 1.1
  • High speed I/O electrical interface (CAUI-4)
  • Single 3.3V supply voltage
  • Maximum power consumption 3.5W
  • 0 º-70 ºC case operating temperature
  • CWDM EML laser and PIN receiver array
  • QSFP28 MSA package with duplex LC connector
  • Two Wire Serial Interface with Digital Diagnostic Monitoring
  • RoHS compliant

Product Details

Product TypeQSFP28
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet Technology100 Gigabit Ethernet
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports1
Country of OriginIsrael
Connector TypeLC
Brand NameMellanox
CompatibilityMSA Compliant
ManufacturerNVIDIA Corporation
Product ModelMMA1L30
Product Name100GbE QSFP28 CWDM4 Optical Transceiver
Network Technology100GBase-CWDM4
Product LineLinkX
Application/UsageData Networking
Manufacturer Part NumberMMA1L30-CM
Manufacturer Website Addresshttp://www.nvidia.com
Marketing Information

Mellanox® MMA1L30-CM transceiver is a single mode 4-channel (CWDM4) QSFP28 optical transceiver designed for use in 100 Gigabit Ethernet (GbE) links on up to 2km of single mode fiber. It is also qualified for use in Mellanox InfiniBand EDR end-to-end systems.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single fiber using a nominal wavelength of 1310nm for 100Gb/s optical transmission. Reversely on the receiver side the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.

It is compliant with the QSFP28 MSA IEEE 802.3bm CAUI-4. Digital diagnostic functions are available via the I²C interface as specified by the QSFP28 MSA.

Rigorous production testing ensures the best out-of-the-box installation experience performance and durability.
Interfaces/Ports Details1 x LC Duplex 100GBase-CWDM4 Network
Limited Warranty1 Year
Product FamilyLinkX
