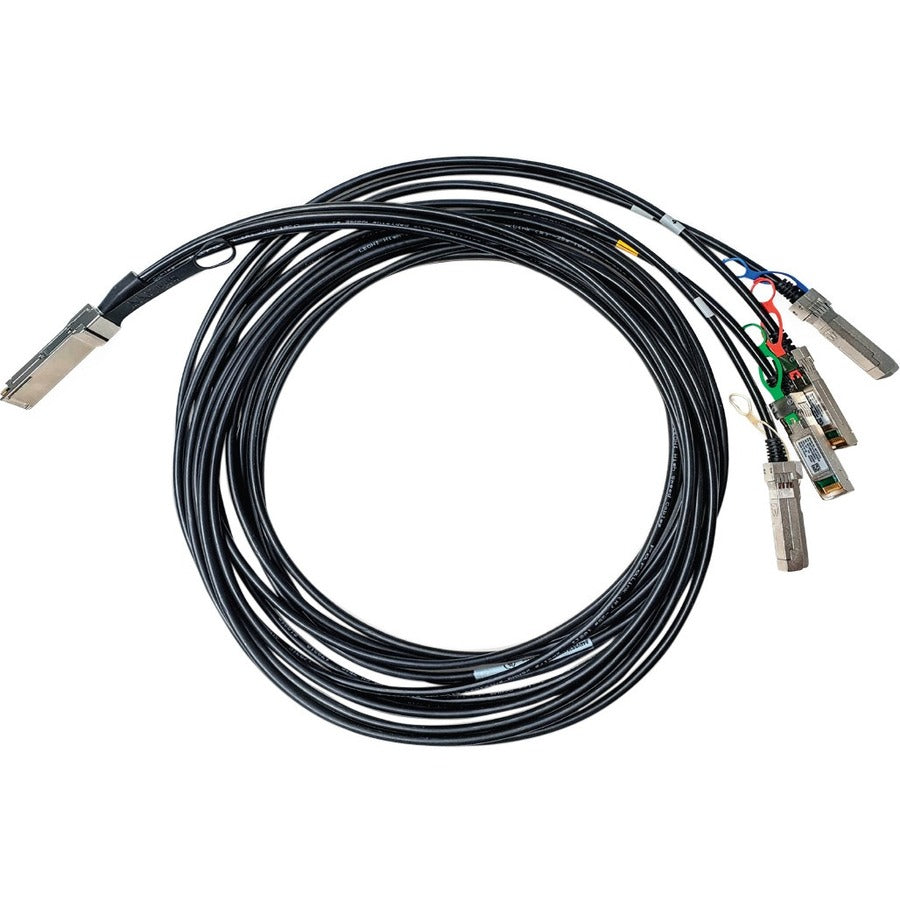

• Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
    Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
1 1

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable

SKU: 1073843656      MFR: NVIDIA Corporation

Product Description

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable - 3.28 ft QSFP56/SFP56 Network Cable for Network Device - First End: 1x QSFP56 Network - Second End: 4x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 30 AWG - Black

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MCP7H70-V001R30

Features

  • 200GbE to 4x50GbE data rate
  • IEEE 802.3cd PAM4 200GAUI-4100GAUI-2 and 50GAUI-1 compliant
  • SFF-8636 compliant I2C management interface
  • Operating case temperature 0-70°C
  • Single 3.3V supply voltage
  • BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect
  • Hot pluggable
  • RoHS compliant
  • Low Smoke Zero Halogen (LSZH)jacket
  • LF (Lead Free) HF (Halogen Free) PCB

Product Details

Product TypeNetwork Cable
Cable CharacteristicSplitter Cable
Cable TypeQSFP56/SFP56
Connector Type on First EndQSFP56 Network
Connector Type on Second EndSFP56 Network
Product ColorBlack
Brand NameMellanox
Cable Length3.28 ft
Environmentally FriendlyYes
American Wire Gauge30 AWG
Connector on First End Details1x QSFP56 Network
Connector on Second End Details4x SFP56 Network
Product MaterialCopper
FeaturesBendable
ManufacturerNVIDIA Corporation
Product Name200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Data Transfer Rate200 Gbit/s
Device SupportedNetwork Device
Product LineLinkX
Jacket TypeLSZH
Manufacturer Part NumberMCP7H70-V001R30
Manufacturer Website Addresshttp://www.nvidia.com
Marketing InformationMellanox®MCP7H70-V0xxRyy DAC splitter cables are a high speed cost-effective 200GbE to 4x50GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.

MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information which can be read by the host system.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Limited Warranty1 Year
Material DetailsCopper - Cable
View full details
$273.99 USD
$273.99
Sale Sold out

Dropship

Get it by Sat, Dec 14 - Thu, Dec 19


Update


Shipping calculated at checkout.

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable - 3.28 ft QSFP56/SFP56 Network Cable for Network Device - First End: 1x QSFP56 Network - Second End: 4x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 30 AWG - Black

Manufacturer : NVIDIA Corporation

Manufacturer Part No : MCP7H70-V001R30

Features

  • 200GbE to 4x50GbE data rate
  • IEEE 802.3cd PAM4 200GAUI-4100GAUI-2 and 50GAUI-1 compliant
  • SFF-8636 compliant I2C management interface
  • Operating case temperature 0-70°C
  • Single 3.3V supply voltage
  • BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect
  • Hot pluggable
  • RoHS compliant
  • Low Smoke Zero Halogen (LSZH)jacket
  • LF (Lead Free) HF (Halogen Free) PCB

Product Details

Product TypeNetwork Cable
Cable CharacteristicSplitter Cable
Cable TypeQSFP56/SFP56
Connector Type on First EndQSFP56 Network
Connector Type on Second EndSFP56 Network
Product ColorBlack
Brand NameMellanox
Cable Length3.28 ft
Environmentally FriendlyYes
American Wire Gauge30 AWG
Connector on First End Details1x QSFP56 Network
Connector on Second End Details4x SFP56 Network
Product MaterialCopper
FeaturesBendable
ManufacturerNVIDIA Corporation
Product Name200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Data Transfer Rate200 Gbit/s
Device SupportedNetwork Device
Product LineLinkX
Jacket TypeLSZH
Manufacturer Part NumberMCP7H70-V001R30
Manufacturer Website Addresshttp://www.nvidia.com
Marketing InformationMellanox®MCP7H70-V0xxRyy DAC splitter cables are a high speed cost-effective 200GbE to 4x50GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.

MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information which can be read by the host system.

Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.

Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Limited Warranty1 Year
Material DetailsCopper - Cable
