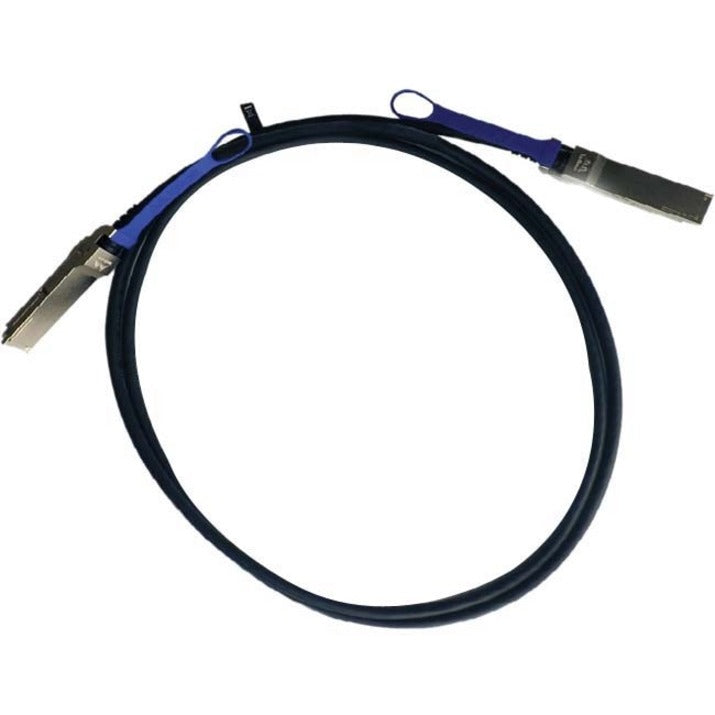

NVIDIA MC3309130-003 Direct Attach Copper Cable Ethernet 10GbE SFP+ 3m

10GbE SFP+ Direct Attach Copper Cables

NVIDIA Networking SFP+ Direct Attach Copper Cables (DAC) provide robust connections for leading edge 10GbE systems. Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8418 and SFF-8419 specifications and provide connectivity between devices using SFP+ ports. The cables use state-of-the-art signal processing technology to fill the expanding need for cost effective data center interconnects.

NVIDIA Networking unique quality passive copper cable solutions provide a power efficient replacement for active power connectivity such as fiber optic cables. Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability. Optimizing systems to operate with 10GbE passive copper cables significantly reduces power consumption and EMI emission eliminating the use of enterprise data center (EDC) hosts.

Highlights

• Compliant with SFF-8418 and SFF-8419
• Up to 7m 10Gb/s data rates
• Ultra-low crosstalk for improved performance
• Low insertion loss
• BER better than 1E-15
• Serial numbers printed on each SFP+ connector
• Tested in an end-to-end system
• RoHS-6 compliant

Copper - Cable
