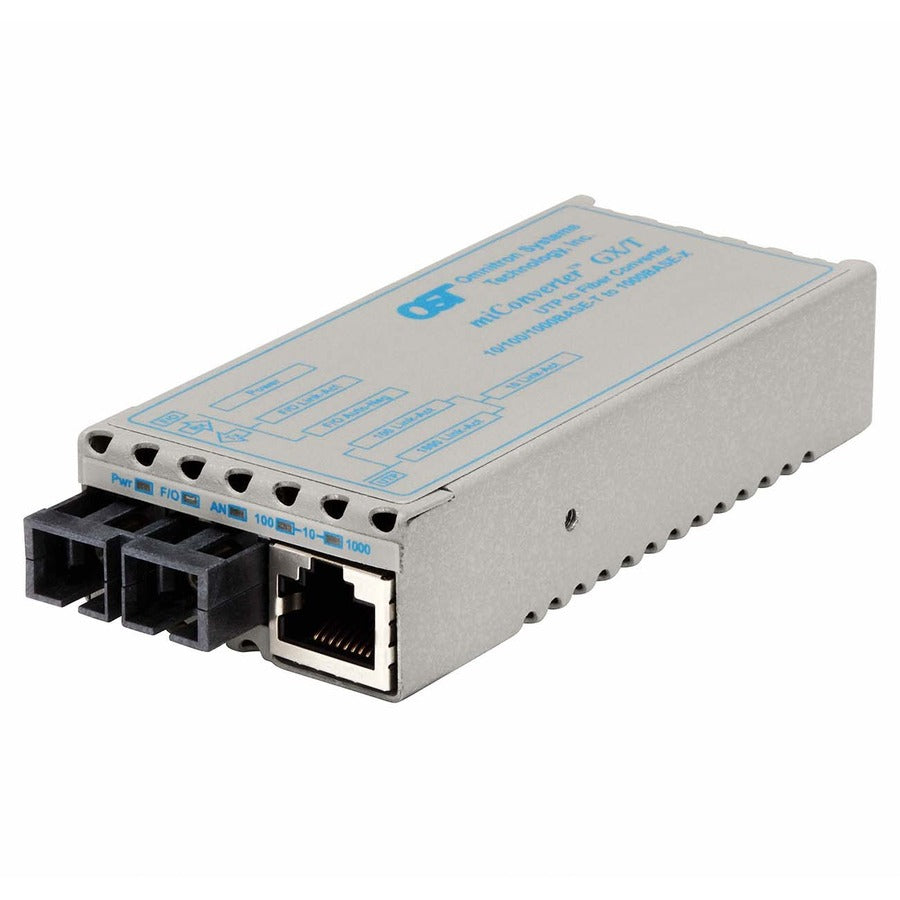

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Multimode 550m

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Multimode 550m

SKU: 1022235196      MFR: Omnitron Systems

GTIN: 0800975026865

Product Description

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 SC Multimode 550m - 1 x 10/100/1000BASE-T; 1 x 1000BASE-SX; DC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 1222-0-9

Features

  • Expand your network capabilities with this 2 transceiver/media converter
  • Supports optical fiber cable for durable performance minimal signal loss and fast data transfers to greater distances
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard50/125 µm
Ethernet TechnologyEthernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Parallel PortNo
Management PortNo
Digital AudioNo
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedMulti-mode
Digital Audio/VideoNo
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength850 nm
Country of OriginUnited States
Height0.8"
Width1.7"
Depth4.1"
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ab 1000BASE-T
Product SeriesGX/T
Brand NameOmnitron Systems
Compatibility

Omnitron Systems miConverter 18-Module Power Chassis
Form FactorRack-mountable
ManufacturerOmnitron Systems
Product Model1222-0-x
Product NamemiConverter GX/T SC Multimode 550m DC Powered
Network Technology10/100/1000Base-T
Package TypeRetail
Product LinemiConverter
Input Voltage5 V DC
Manufacturer Part Number1222-0-9
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing Information

The miConverter GX/T is a miniature 10/100/1000BASE-T UTP copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10240 bytes. The miConverter GX/T provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment desktop and laptop computers.

The GX/T features Small Form Pluggable (SFP) transceivers that support 1000BASE-X for interoperability with Gigabit fiber equipment. SFP transceivers enable adaptability to different fiber types speed and distances and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.
Maximum Distance Supported1804.46 ft
Package Contents
  • miConverter GX/T SC Multimode 550m DC Powered
  • Velcro Strip
  • User Manual
Limited WarrantyLifetime
Additional Information

Input Voltage:

  • 5-12VDC via 2-Pin Terminal Connector (0.5A @ 5VDC)
Weight (Approximate)5 oz
Product FamilymiConverter GX/T
View full details
$569.99 USD
$569.99
Sale Sold out

Back Order

Get it by Mon, Feb 09 - Sat, Feb 14


Update


Shipping calculated at checkout.
