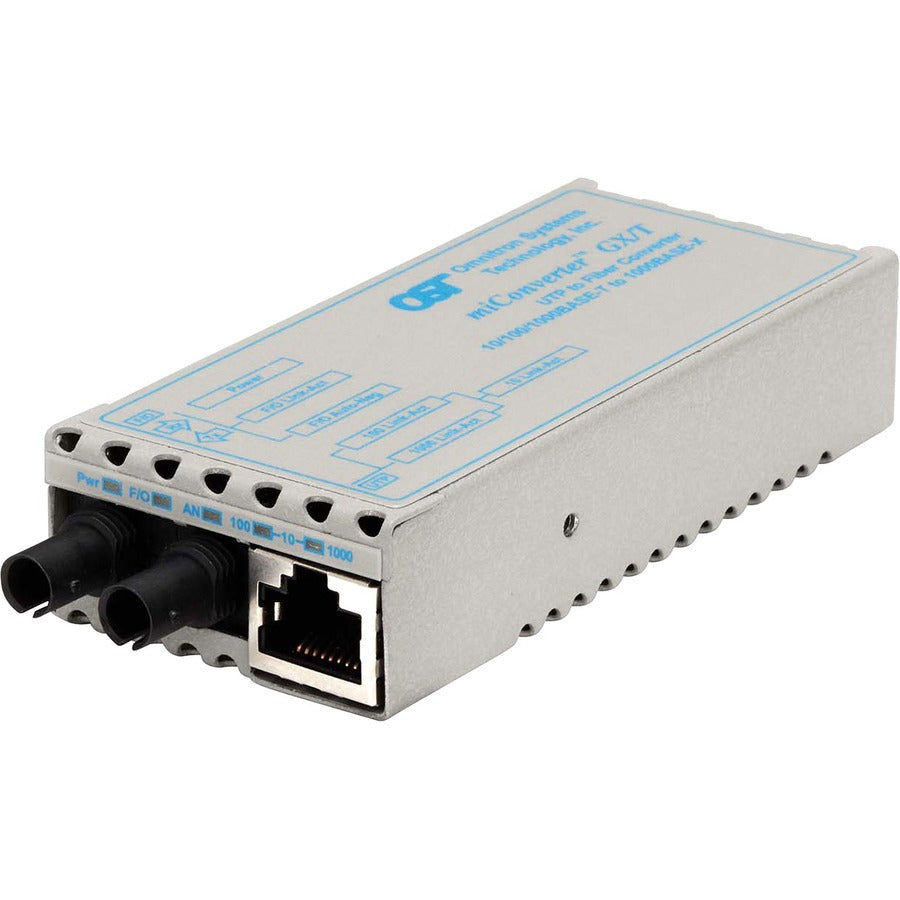

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m

SKU: 1016912494      MFR: Omnitron Systems

GTIN: 0800975023321

Product Description

miConverter 10/100/1000 Gigabit Ethernet Fiber Media Converter RJ45 ST Multimode 550m - 1 x 10/100/1000BASE-T; 1 x 1000BASE-SX; DC Powered; Lifetime Warranty

Manufacturer : Omnitron Systems

Manufacturer Part No : 1220-0-9

Features

  • Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
  • With Twisted Pair cable get the desired data transfer rate up to a required distance
  • With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rack-mountable provides convenient installation

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyEthernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilymiConverter GX/T
Number of ST Ports1
Media Type SupportedTwisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
ST Port TypeDuplex
Brand NameOmnitron Systems
Form FactorRack-mountable
Network Technology10/100/1000Base-T
Maximum Distance Supported1804.46 ft
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Cable Standard100/140 µm
Management PortNo
Fiber Optic Wavelength850 nm
Country of OriginUnited States
Height0.8"
Width1.7"
Depth4.1"
Product SeriesGX/T
ManufacturerOmnitron Systems
Product Model1220-0-x
Product NamemiConverter GX/T ST Multimode 550m DC Powered
Package TypeRetail
Product LinemiConverter
Manufacturer Part Number1220-0-9
Manufacturer Website Addresshttp://www.omnitron-systems.com
Marketing Information

The miConverter GX/T is a miniature 10/100/1000BASE-T UTP copper to 1000BASE-X fiber media converter that supports jumbo frames up to 10240 bytes. The miConverter GX/T provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment desktop and laptop computers.
Package Contents
  • miConverter GX/T ST Multimode 550m DC Powered
  • Velcro Strip
  • User Manual
Limited WarrantyLifetime
Weight (Approximate)5 oz
Parallel PortNo
Digital AudioNo
Digital Audio/VideoNo
Certifications & Standards
  • EIA/TIA 568A/B
Compliance:
  • UL
  • CE
  • FCC Class A
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3ab 1000BASE-T
Input Voltage5 V DC
Additional Information

Input Voltage:

  • 5-12VDC via 2-Pin Terminal Connector (0.5A @ 5VDC)
View full details
