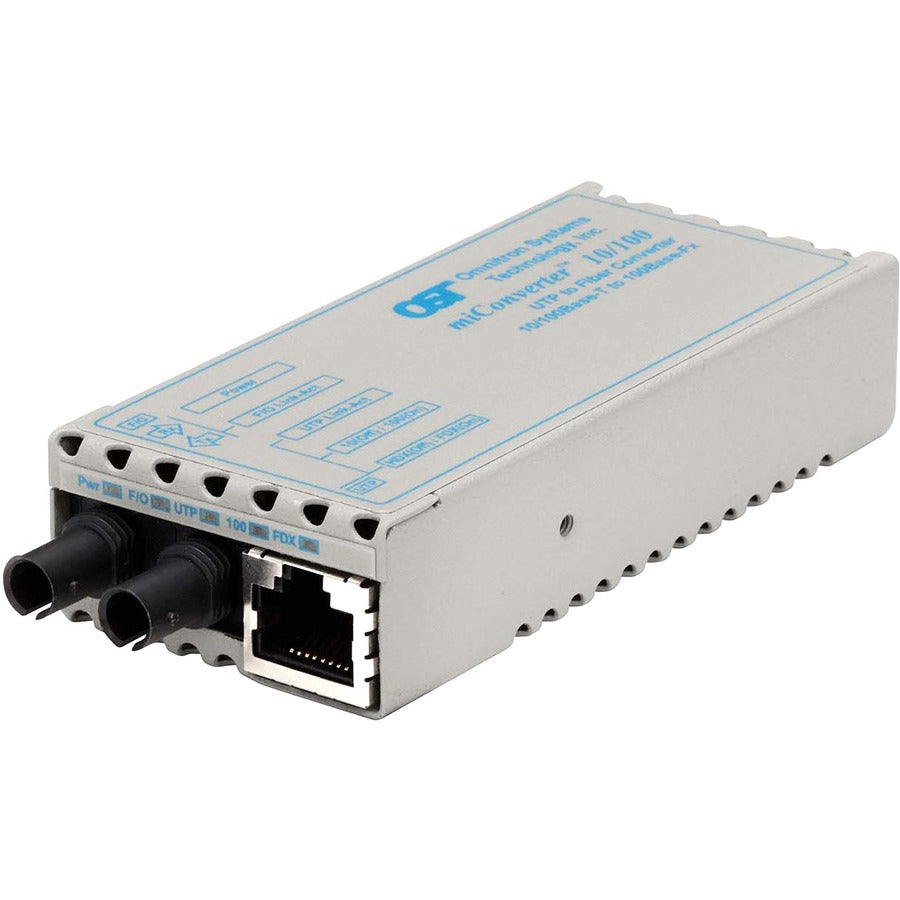

The miniature miConverter 10/100 and miConverter 10/100 Plus are rate-switching 10/100 UTP copper to 100BASE-FX fiber media converters. The miConverter provides cost-effective fiber connectivity from Ethernet switches to diagnostic equipment desktop and laptop computers.

They can be powered by a computer's USB port using the optional USB Power Adaptor Cable which reduces the module's weight and eliminates the need to tether the miConverter to an electrical outlet that provide cost-effective fiber network extension and connectivity.

• Miniature 10/100BASE-TX to 100BASE-FX Ethernet media converter
• Supports 10BASE-T 100BASE-TX 100BASE-FX and the IEEE 802.3 specification
• Supports Full/Half-Duplex UTP auto-negotiation
• Automatically detects and adjusts crossover function
• Multimode single-mode and single-fiber options
• ST or SC fiber connector options
• Domestic Universal and Country/Region specific AC power supply options available
• Optional USB power adapter cable available for operation without AC power adapter
• The miConverter 10/100 Plus features DIP-switches for UTP and Link Mode configurations
• LED indicators for UTP and fiber status
• Wall-mount with optional mounting brackets
• Cost-effective
• Small and light weighs only 5 ounces (without power supply)
• Lifetime Warranty and free 24/7 Technical Support

• miConverter 10/100 Plus ST Multimode 5km USB Powered
• USB Power Cable
• Velcro Strip
• User Manual

• EIA/TIA 568A/B

• UL
• CE
• FCC Class A

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX and 100BASE-FX

Input Voltage:

• 5-15VDC via 2.5mm barrel (0.5A @ 5VDC)
