• Microchip Adaptec 12Gb/s SAS Expander Card

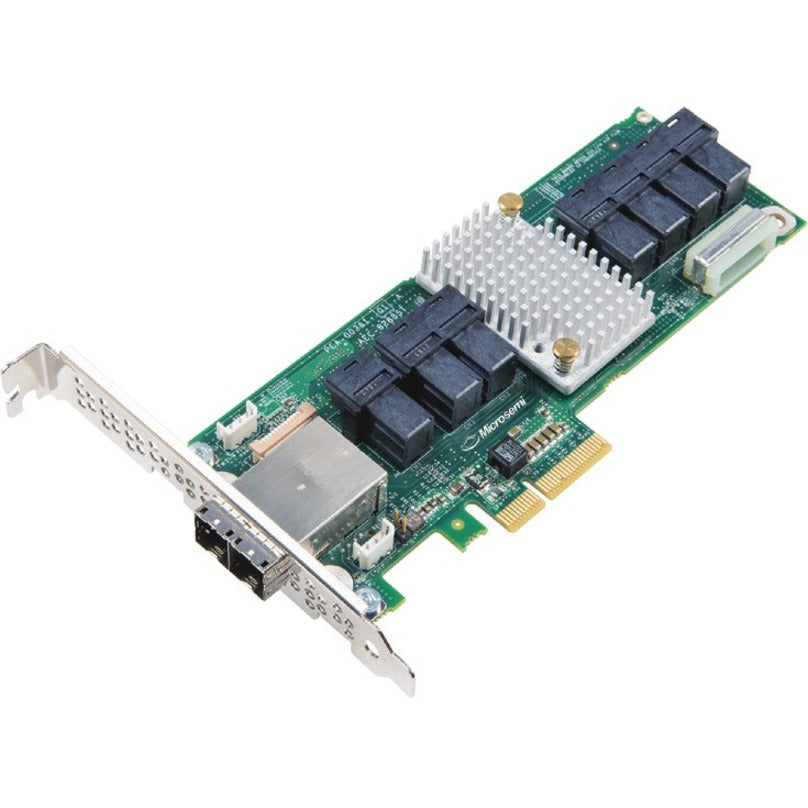

    Microchip Adaptec 12Gb/s SAS Expander Card
1 1

Microchip Adaptec 12Gb/s SAS Expander Card

Microchip Adaptec 12Gb/s SAS Expander Card

SKU: 1028786566      MFR: Microchip Technology Inc.

GTIN: 760884157350

Product Description

Microchip Adaptec 12Gb/s SAS Expander Card - 12Gb/s SAS - PCI Express x4 - Plug-in Card - 36 Total SAS Port(s) - 28 SAS Port(s) Internal - 8 SAS Port(s) External

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : 2283400-R

Features

  • 36 ports (28 internal 8 external) in low-profile MD2 form factor
  • Enables both internal and external connectivity
  • Complete portfolio of mini-SAS HD cables available
  • 12 Gbps SAS and 6 Gbps SATA data transfer rates
  • Backwards compatible to 6 Gbps for legacy 6G SAS or SATA devices
  • Proven compatibility with existing Microsemi Adaptec solutions multiple operating systems servers enclosures SSDs HDDs and LTO Tape drives

Product Details

Product TypeSAS Controller Expander
Environmentally FriendlyYes
Environmental CertificationRoHS
Total Number of SAS Ports36
Number of SAS Ports (Internal)28
Number of SAS Ports (External)8
SAS Connector Details7 x SFF-8643
Height2.5"
Brand NameMicrochip Adaptec
Form FactorPlug-in Card
Length6.6"
ManufacturerMicrochip Technology Inc.
Product Model82885T
Product NameExpander Card 82885T Single
Controller Type12Gb/s SAS
Manufacturer Part Number2283400-R
Manufacturer Website Addresshttp://www.microchip.com
Marketing InformationThe 12Gb/s Microsemi Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with up to 20 internal ports for direct attach drive connectivity 4 or 8 internal ports for connectivity to a RAID adapter or HBA and 8 external ports for external storage expansion.

Flexibility of Configuration
The 82885T mounts internally to any available PCIe slot away from the backplane and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes) but there is no data transfer to the slot. Alternatively power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.

Enclosure Management Support
The 82885T supports SGPIO and SES2 enclosure management allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.

Universal Compatibility with Existing Storage Infrastructure
The 82885T is fully compatible with Microsemi Adaptec Series 8 Series 7 and Series 6 12Gb/s and 6Gb/s RAID adapters and HBAs allowing for a seamless integration and management within an end-to-end Microsemi Adaptec solution. The 82885T is also compatible with 3rd party adapters and HBAs and has also been tested for interoperability with a wide variety of SAS and SATA HDDs and SSDs.
Packaged Quantity1
Limited Warranty3 Year
Host InterfacePCI Express 3.0 x4
Weight (Approximate)1.52 lb
View full details
$480.99 USD
$480.99
Sale Sold out

Back Order

Get it by Thu, Dec 03 - Tue, Dec 08


Update


Shipping calculated at checkout.

Microchip Adaptec 12Gb/s SAS Expander Card - 12Gb/s SAS - PCI Express x4 - Plug-in Card - 36 Total SAS Port(s) - 28 SAS Port(s) Internal - 8 SAS Port(s) External

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : 2283400-R

Features

  • 36 ports (28 internal 8 external) in low-profile MD2 form factor
  • Enables both internal and external connectivity
  • Complete portfolio of mini-SAS HD cables available
  • 12 Gbps SAS and 6 Gbps SATA data transfer rates
  • Backwards compatible to 6 Gbps for legacy 6G SAS or SATA devices
  • Proven compatibility with existing Microsemi Adaptec solutions multiple operating systems servers enclosures SSDs HDDs and LTO Tape drives

Product Details

Product TypeSAS Controller Expander
Environmentally FriendlyYes
Environmental CertificationRoHS
Total Number of SAS Ports36
Number of SAS Ports (Internal)28
Number of SAS Ports (External)8
SAS Connector Details7 x SFF-8643
Height2.5"
Brand NameMicrochip Adaptec
Form FactorPlug-in Card
Length6.6"
ManufacturerMicrochip Technology Inc.
Product Model82885T
Product NameExpander Card 82885T Single
Controller Type12Gb/s SAS
Manufacturer Part Number2283400-R
Manufacturer Website Addresshttp://www.microchip.com
Marketing InformationThe 12Gb/s Microsemi Adaptec 82885T SAS expander card offers a scalable connectivity / fan-out option for additional drives when used in conjunction with a SAS RAID adapter or SAS HBA. The 82885T SAS Expander Card offers 36 ports in a low-profile MD2 form factor with up to 20 internal ports for direct attach drive connectivity 4 or 8 internal ports for connectivity to a RAID adapter or HBA and 8 external ports for external storage expansion.

Flexibility of Configuration
The 82885T mounts internally to any available PCIe slot away from the backplane and features mini-SAS HD connectors out the top for added cabling flexibility in dense server environments. The 82885T enables a low cost drive expansion solution when mated with a RAID adapter or HBA. The expander draws power from the PCIe slot (requires 4 or more lanes) but there is no data transfer to the slot. Alternatively power can also be supplied to the expander card through a standard 4-pin auxiliary power connector.

Enclosure Management Support
The 82885T supports SGPIO and SES2 enclosure management allowing enclosure information to be routed from all daisy-chained 82885T cards to the HBA or RAID adapter. All device and slot mapping information is provided to the HBA or RAID adapter by the last 82885T card in the chain.

Universal Compatibility with Existing Storage Infrastructure
The 82885T is fully compatible with Microsemi Adaptec Series 8 Series 7 and Series 6 12Gb/s and 6Gb/s RAID adapters and HBAs allowing for a seamless integration and management within an end-to-end Microsemi Adaptec solution. The 82885T is also compatible with 3rd party adapters and HBAs and has also been tested for interoperability with a wide variety of SAS and SATA HDDs and SSDs.
Packaged Quantity1
Limited Warranty3 Year
Host InterfacePCI Express 3.0 x4
Weight (Approximate)1.52 lb
