• Microchip Adaptec RAID 6805E Single

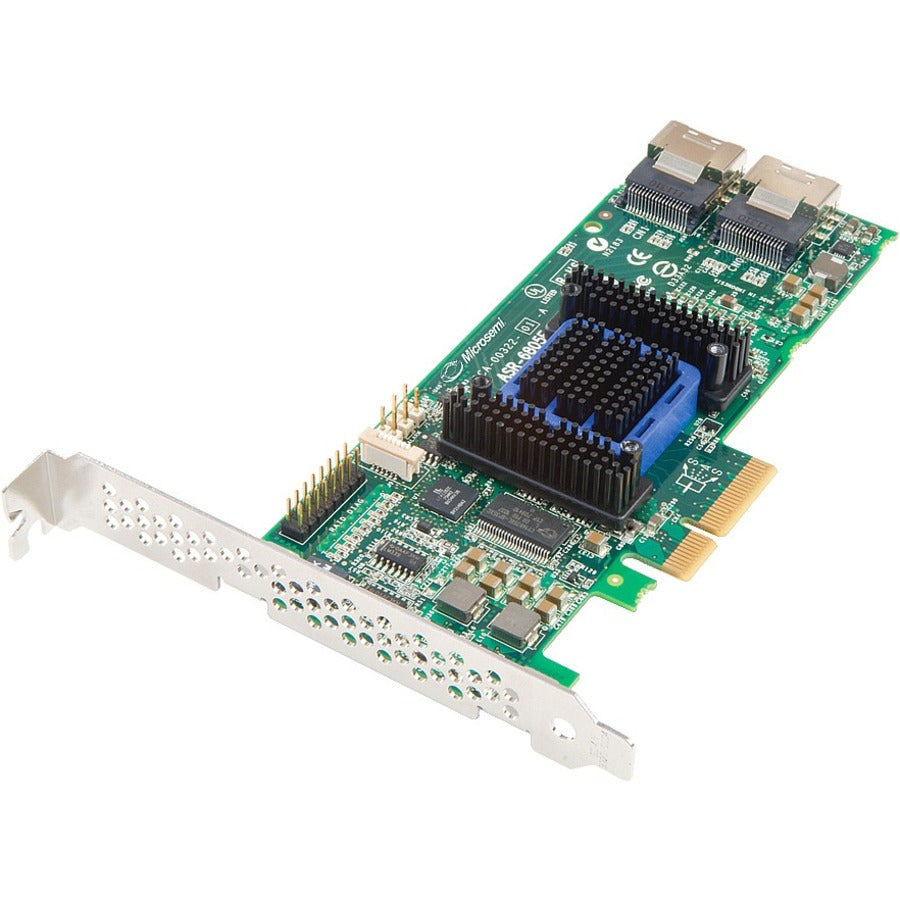

    Microchip Adaptec RAID 6805E Single
1 1

Microchip Adaptec RAID 6805E Single

Microchip Adaptec RAID 6805E Single

SKU: 1020420100      MFR: Microchip Technology Inc.

GTIN: 760884156575

Product Description

Microchip Adaptec RAID 6805E Single - 6Gb/s SAS - PCI Express 2.0 x4 - Plug-in Card - RAID Supported - 0 1 10 1E JBOD RAID Level - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - 128 MB

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : 2270900-R

Product Details

Product TypeSAS Controller
Maximum Data Transfer Rate600
RAID SupportedYes
Total Number of SAS Ports8
Brand NameMicrochip Adaptec
Form FactorPlug-in Card
RAID Levels0
Controller Type6Gb/s SAS
Host InterfacePCI Express 2.0 x4
Environmentally FriendlyYes
Environmental CertificationWEEE
Number of SAS Ports (Internal)8
SAS Connector Details2 x SFF-8087
Cache Memory128 MB
Height2.5"
Width6.1"
ManufacturerMicrochip Technology Inc.
Product NameRAID 6805E Single
Manufacturer Part Number2270900-R
Manufacturer Website Addresshttp://www.microchip.com
Marketing InformationMicrosemi Adaptec® Series 6E RAID: 6405E 6805E True Hardware RAID Adapters with On-Board DRAM for Entry-Level Applications

Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters but are optimized for platforms where a Series 6 adapter would not fit due to price form factor or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC workstation class or entry server class motherboard while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices respectively as neither supports expanders.
Packaged Quantity1
Limited Warranty3 Year
View full details
$354.99 USD
$354.99
Sale Sold out

Back Order

Get it by Fri, Dec 04 - Wed, Dec 09


Update


Shipping calculated at checkout.

Microchip Adaptec RAID 6805E Single - 6Gb/s SAS - PCI Express 2.0 x4 - Plug-in Card - RAID Supported - 0 1 10 1E JBOD RAID Level - 8 Total SAS Port(s) - 8 SAS Port(s) Internal - 128 MB

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : 2270900-R

Product Details

Product TypeSAS Controller
Maximum Data Transfer Rate600
RAID SupportedYes
Total Number of SAS Ports8
Brand NameMicrochip Adaptec
Form FactorPlug-in Card
RAID Levels0
Controller Type6Gb/s SAS
Host InterfacePCI Express 2.0 x4
Environmentally FriendlyYes
Environmental CertificationWEEE
Number of SAS Ports (Internal)8
SAS Connector Details2 x SFF-8087
Cache Memory128 MB
Height2.5"
Width6.1"
ManufacturerMicrochip Technology Inc.
Product NameRAID 6805E Single
Manufacturer Part Number2270900-R
Manufacturer Website Addresshttp://www.microchip.com
Marketing InformationMicrosemi Adaptec® Series 6E RAID: 6405E 6805E True Hardware RAID Adapters with On-Board DRAM for Entry-Level Applications

Affordable True Hardware RAID that Outperforms Software-Based HBAs and SATA Controllers
The Series 6E adapters deliver the robustness of hardware RAID in an entrylevel solution. They offer the same 6 Gbps performance of our Series 6 adapters but are optimized for platforms where a Series 6 adapter would not fit due to price form factor or host connectivity. The 6405E offers maximum connectivity through a 1-lane PCI Express 2.0 interface that fits into any industrial PC workstation class or entry server class motherboard while the 6805E has a 4-lane PCI Express 2.0 interface for application that require more bandwidth. The 6405E and the 6805E support a maximum of four and eight devices respectively as neither supports expanders.
Packaged Quantity1
Limited Warranty3 Year
