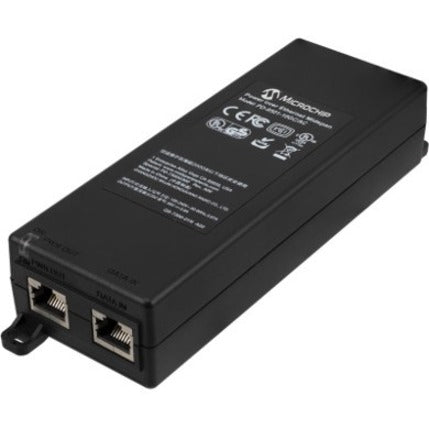

• Microchip PD-9001-10GC PoE Injector
    Microchip PD-9001-10GC PoE Injector
1 1

Microchip PD-9001-10GC PoE Injector

Microchip PD-9001-10GC PoE Injector

SKU: 1065664755      MFR: Microchip Technology Inc.

Product Description

Microchip PD-9001-10GC PoE Injector - 120 V AC 230 V AC Input - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9001-10GC/AC-US

Features

  • IEEE 802.3at compliant
  • IEEE 802.3af backward compatible
  • Guaranteed output power - 30W
  • Supports 10/100/1000Base-T & 10 Gbps
  • Safe: low power devices receive only the power they need
  • Automatic detection and protection of non-standard Ethernet terminals
  • Compact design fits easily in WLAN access point and IP cameras installation

Product Details

Product TypePoE Injector
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Output Power30 W
Height1.4"
Width2.2"
Depth6.6"
Certifications & Standards
  • IEEE 802.3at
  • IEEE 802.11ac
  • IEEE 802.3af

EMI:

  • FCC Part 15 Class B
  • EN 55032 Class B (emissions)
  • EN 55024 (immunity)
  • VCCI

Safety:

  • UL/EN/IEC 60950-1 (Ed.2)
Brand NameMicrochip
Input Ports1 x 10/100/1000Base-T
Output Ports1 x PoE
Form FactorInternal
ManufacturerMicrochip Technology Inc.
Product ModelPD-9001-10GC
Product NamePD-9001-10GC PoE Injector
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberPD-9001-10GC/AC-US
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.

Additional Features

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps & 10G
  • Power input: AC
  • Power cord options: US EU (Europe) UK BR (Brazil) AU (Australia) JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE) RoHS compliant WEEE compliant CE
  • EMI: FCC Part 15 Class B EN 55032 Class B (emissions) EN 55024 (immunity) VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
  • Compact design
Limited Warranty1 Year
Weight (Approximate)8.16 oz
Input Ports1 10/100/1000Base-T
Output Ports1 PoE
View full details
$151.99 USD
$151.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Microchip PD-9001-10GC PoE Injector - 120 V AC 230 V AC Input - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9001-10GC/AC-US

Features

  • IEEE 802.3at compliant
  • IEEE 802.3af backward compatible
  • Guaranteed output power - 30W
  • Supports 10/100/1000Base-T & 10 Gbps
  • Safe: low power devices receive only the power they need
  • Automatic detection and protection of non-standard Ethernet terminals
  • Compact design fits easily in WLAN access point and IP cameras installation

Product Details

Product TypePoE Injector
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Output Power30 W
Height1.4"
Width2.2"
Depth6.6"
Certifications & Standards
  • IEEE 802.3at
  • IEEE 802.11ac
  • IEEE 802.3af

EMI:

  • FCC Part 15 Class B
  • EN 55032 Class B (emissions)
  • EN 55024 (immunity)
  • VCCI

Safety:

  • UL/EN/IEC 60950-1 (Ed.2)
Brand NameMicrochip
Input Ports1 x 10/100/1000Base-T
Output Ports1 x PoE
Form FactorInternal
ManufacturerMicrochip Technology Inc.
Product ModelPD-9001-10GC
Product NamePD-9001-10GC PoE Injector
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberPD-9001-10GC/AC-US
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.

Additional Features

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps & 10G
  • Power input: AC
  • Power cord options: US EU (Europe) UK BR (Brazil) AU (Australia) JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE) RoHS compliant WEEE compliant CE
  • EMI: FCC Part 15 Class B EN 55032 Class B (emissions) EN 55024 (immunity) VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
  • Compact design
Limited Warranty1 Year
Weight (Approximate)8.16 oz
Input Ports1 10/100/1000Base-T
Output Ports1 PoE
