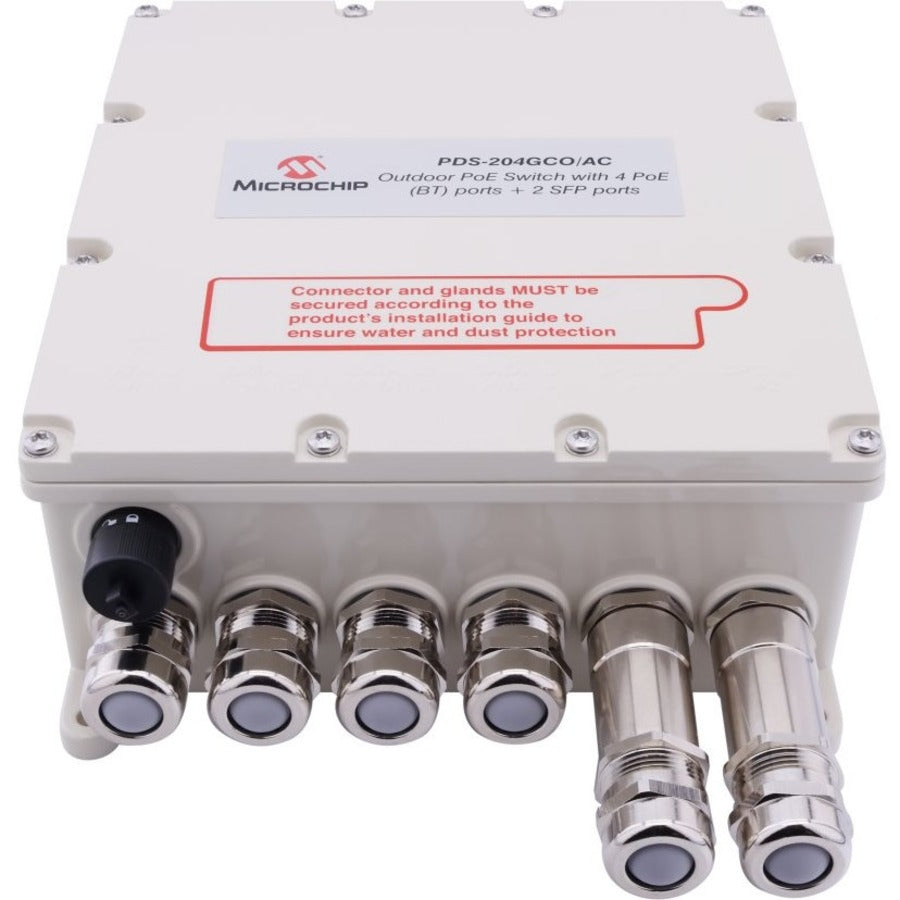

• Microchip PDS-204GCO Outdoor PoE Switch
    Microchip PDS-204GCO Outdoor PoE Switch
1 1

Microchip PDS-204GCO Outdoor PoE Switch

Microchip PDS-204GCO Outdoor PoE Switch

SKU: 1077099156      MFR: Microchip Technology Inc.

GTIN: 844117004557

Product Description

Microchip PDS-204GCO Outdoor PoE Switch - Outdoor PoE-Managed Switch With Four-Port 802.3bt PoE Two-Port SFP 90W Per Port and AC Inp

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PDS-204GCO/AC

Features

  • Four-port Gigabit 802.3bt PoE and two-port 1G/2.5G SFP
  • Supports IEEE 802.3bt Type 4 standard PDs with an output power of up to 90W per port and a total power of 150W
  • Supports robust L2 features include advanced VLAN management and translation Quality of Service (QoS)-rich features multiple and rapid spanning tree protocol (IEEE 802.1w and IEEE 802.1s) and link aggregation (IEEE 802.1ad)
  • Supports advanced network features for network redundancy and high availability including 1:1 port protection (G.8031) and ring protection (G.8032)
  • Supports robust security features in all security levels: user access level device management level and network data frames reception and transmission level
  • Easy remote network management by a web browser CLIs and SNMPv3
  • Extended temperature range: ?40?C to 50?C
  • Integral surge protection
  • Outdoor rated: IP67
  • Plug-and-play installation (installer does not have to open unit)
  • Includes the pole mounting kit

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Media Type SupportedOptical Fiber
Total Number of Network Ports4
PoE (RJ-45) PortYes
Expansion Slot TypeSFP (mini-GBIC)
Brand NameMicrochip
Form FactorPole Mount
Power SourceAC
Layer Supported2
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE
PoE Budget150 W
Networking StandardsIEEE 802.3bt
ManufacturerMicrochip Technology Inc.
Product ModelPDS-204GCO
Product NamePDS-204GCO Ethernet Switch
Network Technology10/100/1000Base-T
Application/UsageWireless Access Point
Manufacturer Part NumberPDS-204GCO/AC
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

PDS-204GCO is a next-generation outdoor Power over Ethernet (PoE) switch for smart cities. It allows Wi-Fi® access points security network cameras and many other IoT devices to receive power and data over standard Ethernet cables leaving network infrastructure completely unaltered.

With an IP67 rating PDS-204GCO complies with the highest outdoor environment standards and enables easy installation without the need to open the unit.

The PDS-204GCO includes four PoE Giga ports with a total output power of 150W. It supports the IEEE® 802.3bt Type 4 standard and contains two fiber links that support 1G or 2.5G speeds each. It supports advanced network features to meet the highest cyber security threats at all network levels and enables multiple network topologies such as network daisy chain or ring for easy installation and network redundancy.

It also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Weight (Approximate)6.18 lb
View full details
$1,289.99 USD
$1,289.99
Sale Sold out

Back Order

Get it by Fri, May 01 - Wed, May 06


Update


Shipping calculated at checkout.

Microchip PDS-204GCO Outdoor PoE Switch - Outdoor PoE-Managed Switch With Four-Port 802.3bt PoE Two-Port SFP 90W Per Port and AC Inp

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PDS-204GCO/AC

Features

  • Four-port Gigabit 802.3bt PoE and two-port 1G/2.5G SFP
  • Supports IEEE 802.3bt Type 4 standard PDs with an output power of up to 90W per port and a total power of 150W
  • Supports robust L2 features include advanced VLAN management and translation Quality of Service (QoS)-rich features multiple and rapid spanning tree protocol (IEEE 802.1w and IEEE 802.1s) and link aggregation (IEEE 802.1ad)
  • Supports advanced network features for network redundancy and high availability including 1:1 port protection (G.8031) and ring protection (G.8032)
  • Supports robust security features in all security levels: user access level device management level and network data frames reception and transmission level
  • Easy remote network management by a web browser CLIs and SNMPv3
  • Extended temperature range: ?40?C to 50?C
  • Integral surge protection
  • Outdoor rated: IP67
  • Plug-and-play installation (installer does not have to open unit)
  • Includes the pole mounting kit

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Slots2
Media Type SupportedOptical Fiber
Total Number of Network Ports4
PoE (RJ-45) PortYes
Expansion Slot TypeSFP (mini-GBIC)
Brand NameMicrochip
Form FactorPole Mount
Power SourceAC
Layer Supported2
Network (RJ-45)Yes
Number of SFP Slots2
ModularYes
Port/Expansion Slot Details4 x Gigabit Ethernet PoE
PoE Budget150 W
Networking StandardsIEEE 802.3bt
ManufacturerMicrochip Technology Inc.
Product ModelPDS-204GCO
Product NamePDS-204GCO Ethernet Switch
Network Technology10/100/1000Base-T
Application/UsageWireless Access Point
Manufacturer Part NumberPDS-204GCO/AC
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

PDS-204GCO is a next-generation outdoor Power over Ethernet (PoE) switch for smart cities. It allows Wi-Fi® access points security network cameras and many other IoT devices to receive power and data over standard Ethernet cables leaving network infrastructure completely unaltered.

With an IP67 rating PDS-204GCO complies with the highest outdoor environment standards and enables easy installation without the need to open the unit.

The PDS-204GCO includes four PoE Giga ports with a total output power of 150W. It supports the IEEE® 802.3bt Type 4 standard and contains two fiber links that support 1G or 2.5G speeds each. It supports advanced network features to meet the highest cyber security threats at all network levels and enables multiple network topologies such as network daisy chain or ring for easy installation and network redundancy.

It also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Weight (Approximate)6.18 lb
