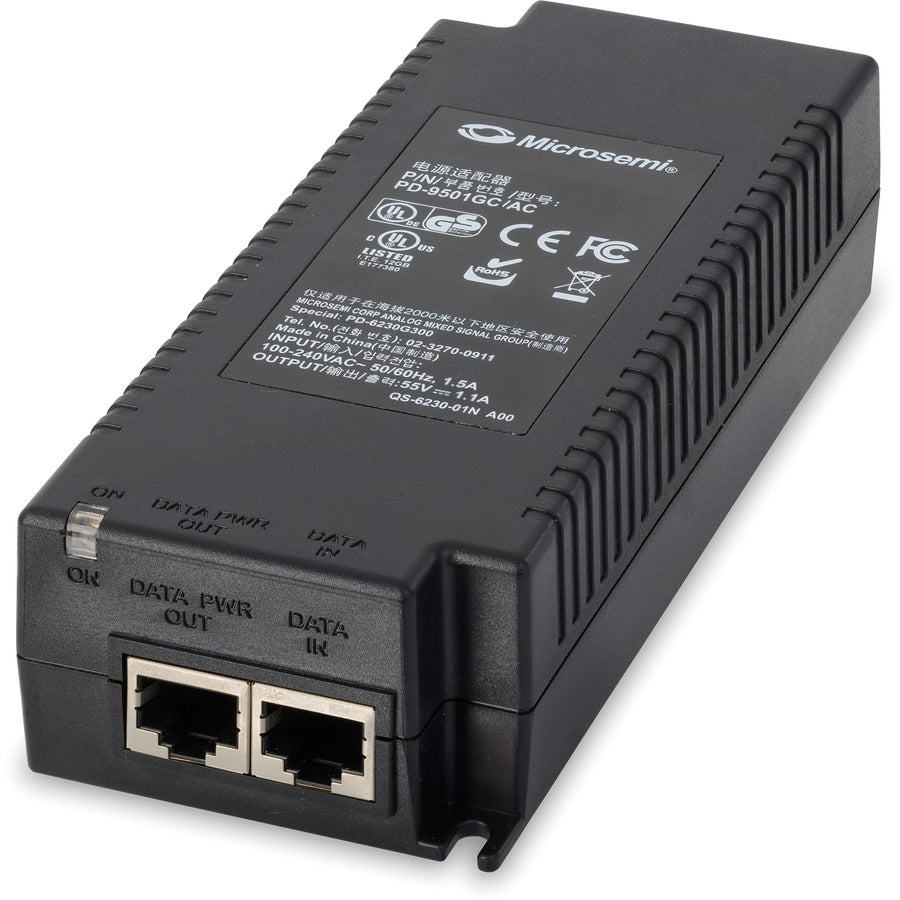

Microsemi 1 port 60W IEEE 802.3bt-compliant indoor PoE midspan

Microsemi 1 port 60W IEEE 802.3bt-compliant indoor PoE midspan

SKU: 1062603459      MFR: Microchip Technology Inc.

GTIN: 844117002898

Product Description

Microsemi 1 port 60W IEEE 802.3bt-compliant indoor PoE midspan - The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points pan-tilt-zoom (PTZ) and dome cameras IP videophones thin clients and other high power Ethernet end terminals.

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9501GC/AC-US

Features

  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US EU (Europe) UK BR (Brazil) AU (Australia) JP (Japan)
  • Regulatory compliance: IEEE 802.3bt (PoE) RoHS Compliant WEEE Compliant CE
  • EMI: FCC Part 15 Class B EN 55032 Class B (emissions) EN 55024 (immunity) VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
  • Compact design

Product Details

Product TypePoE Injector
Brand NameMicrochip
Output Ports1 x 10/100/1000Base-T
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Output Power60 W
Maximum Output Voltage55 V DC
Height1.5"
Width2.4"
Certifications & Standards
  • CE
  • IEEE 802.3bt (PoE)
Product SeriesPD-9500GC
Input Ports1 10/100/1000Base-T
Output Ports1 10/100/1000Base-T
Length5.9"
ManufacturerMicrochip Technology Inc.
Product ModelPD-9501GC
Product Name1-Port IEEE 802.3bt 60W PoE Midspan
Input Voltage120 V AC
Input Voltage230 V AC
Manufacturer Part NumberPD-9501GC/AC-US
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points pan-tilt-zoom (PTZ) and dome cameras IP videophones thin clients and other high power Ethernet end terminals.

Package Contents
  • 1-Port IEEE 802.3bt 60W PoE Midspan
  • Power Cord
Limited Warranty1 Year
Weight (Approximate)11.29 oz
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Maximum Input Current1.50 A
Country of OriginChina
Input Ports1 x 10/100/1000Base-T
Additional InformationPower over Ethernet Output:
  • Pin Assignment and Polarity:
  • Data Pairs 1/2 (-) and 3/6 (+)
  • Spare Pairs 7/8 (-) and 4/5 (+)
  • User Port Power: 60W over 4-pairs (Guaranteed)
  • Connectors: Shielded RJ-45 EIA 568A and 568B

Reliability: MTBF: 240000 hrs. @ 25ºC
Thermal Rating: 34.2 BTU/Hr (@100Vac)

Environmental Conditions:

  • Operating Ambient Temperature: 32ºF to 104ºF (0ºC to 40ºC)
  • Operating Humidity: Maximum 95% Non-condensing
  • Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC)
  • Storage Humidity: Maximum 95% Non-condensing
View full details
$130.99 USD
$130.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.
