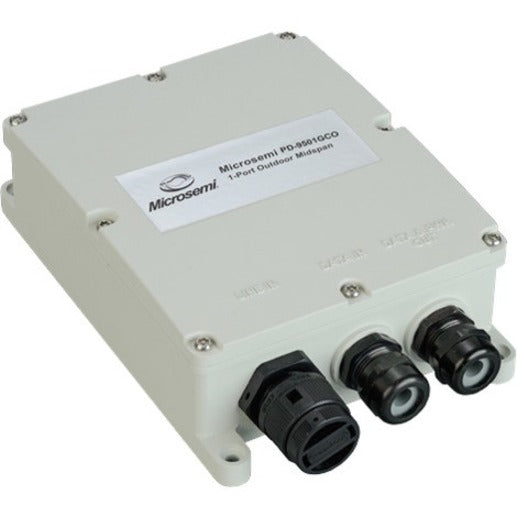

• Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan
    Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan
1 1

Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan

Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan

SKU: 1064818750      MFR: Microchip Technology Inc.

GTIN: 844117002492

Product Description

Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan - 60W Midspan Outdoor with Extended Temperature Range 10/100/1000 Mbps IP67 AC Input Power 3 Year Warranty

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9501GCO/AC

Features

  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP67
  • Regulatory compliance: IEEE 802.3bt type 3 IEEE 802.3af/at (PoE) RoHS Compliant WEEE Compliant CE
  • EMI: FCC Part 15 Class B EN 55032 Class B (Emissions) EN 55024 EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI
  • Surge Protection: Design to meets Surge Protection as specified in: GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on Data and AC lines)
  • Safety: UL/IEC/EN 60950-1 (ed.2) UL 60950-22
  • Other standards: Dust proof and water resistance: EN60529 Approvals Level IP67; NEMA 250 Level 4X ASTM B-117 Corrosion Resistance

Product Details

Product TypePoE Injector
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Maximum Output Power60 W
Maximum Output Voltage54 V DC
Height6.7"
Width5.5"
Depth2.4"
Brand NameMicrochip
Output Ports1 x Gigabit PoE
CompatibilityCompatible Devices:
  • LAN Access Points
  • Security Network Cameras
  • IP Terminals
Form FactorExternal
ManufacturerMicrochip Technology Inc.
Product ModelPD-9501GCO
Product NamePD-9501GCO PoE Injector
Protection TypeSurge Protection
Manufacturer Part NumberPD-9501GCO/AC
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

The single-port midspan offers a cost effective IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Limited Warranty3 Year
Additional Information
  • Product Type | 60W PoE
  • PoE Systems Type | Midspan
  • PoE Standard | IEEE 802.3bt
  • Power Per Port | 60W
  • Operating Environment | Outdoor
  • Data Rate | 1 Gbps
  • Input Power | AC
  • Operating Humidity (%) | 95
  • Operating Temperature (°C) | -40 to 65
Weight (Approximate)3.09 lb
Output Ports1 Gigabit PoE
View full details
$354.99 USD
$354.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

Microsemi 1 port 60W IEEE 802.3bt outdoor PoE midspan - 60W Midspan Outdoor with Extended Temperature Range 10/100/1000 Mbps IP67 AC Input Power 3 Year Warranty

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9501GCO/AC

Features

  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP67
  • Regulatory compliance: IEEE 802.3bt type 3 IEEE 802.3af/at (PoE) RoHS Compliant WEEE Compliant CE
  • EMI: FCC Part 15 Class B EN 55032 Class B (Emissions) EN 55024 EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI
  • Surge Protection: Design to meets Surge Protection as specified in: GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on Data and AC lines)
  • Safety: UL/IEC/EN 60950-1 (ed.2) UL 60950-22
  • Other standards: Dust proof and water resistance: EN60529 Approvals Level IP67; NEMA 250 Level 4X ASTM B-117 Corrosion Resistance

Product Details

Product TypePoE Injector
Maximum Frequency60 Hz
Minimum Frequency50 Hz
Maximum Output Power60 W
Maximum Output Voltage54 V DC
Height6.7"
Width5.5"
Depth2.4"
Brand NameMicrochip
Output Ports1 x Gigabit PoE
CompatibilityCompatible Devices:
  • LAN Access Points
  • Security Network Cameras
  • IP Terminals
Form FactorExternal
ManufacturerMicrochip Technology Inc.
Product ModelPD-9501GCO
Product NamePD-9501GCO PoE Injector
Protection TypeSurge Protection
Manufacturer Part NumberPD-9501GCO/AC
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

The single-port midspan offers a cost effective IEEE 802.3bt Type3 compliant solution and Pre-bt support for outdoor installations guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.
Limited Warranty3 Year
Additional Information
  • Product Type | 60W PoE
  • PoE Systems Type | Midspan
  • PoE Standard | IEEE 802.3bt
  • Power Per Port | 60W
  • Operating Environment | Outdoor
  • Data Rate | 1 Gbps
  • Input Power | AC
  • Operating Humidity (%) | 95
  • Operating Temperature (°C) | -40 to 65
Weight (Approximate)3.09 lb
Output Ports1 Gigabit PoE
