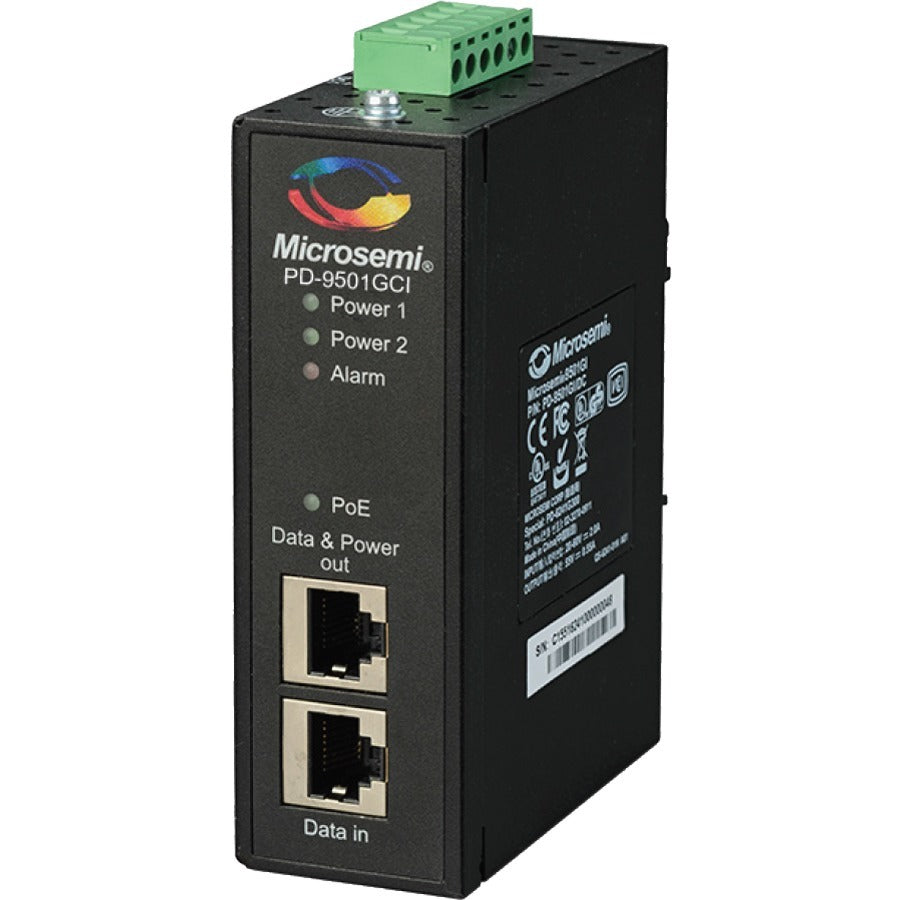

• Microsemi 1-port IEEE 802.3bt Type3 60W 20-60 VDC Industrial PoE Midspan
    Microsemi 1-port IEEE 802.3bt Type3 60W 20-60 VDC Industrial PoE Midspan
1 1

Microsemi 1-port IEEE 802.3bt Type3 60W 20-60 VDC Industrial PoE Midspan

Microsemi 1-port IEEE 802.3bt Type3 60W 20-60 VDC Industrial PoE Midspan

SKU: 1064818751      MFR: Microchip Technology Inc.

Product Description

Microsemi 1-port IEEE 802.3bt Type3 60W 20-60 VDC Industrial PoE Midspan - 60W Midspan Industrial 10/100/1000 Mbps DC Input Power 3 Year Warranty

Manufacturer : Microchip Technology Inc.

Manufacturer Part No : PD-9501GCI/DC

Features

  • IEEE 802.3BT type 3 compliant
  • IEEE 802.3af/at backward
  • compatible
  • Dual DC inputs 20-60 VDC range
  • Industrial rated IP30
  • Extended temp range: -40ºC to +75ºC
  • Plug and play installation
  • Supports 10/100/1000 Mbps

Product Details

Product TypePoE Injector
Maximum Input Current4 A
Maximum Output Power60 W
Maximum Output Voltage55 V DC
Height4.4"
Width1.4"
Brand NameMicrochip
Input Ports1 x Gigabit Ethernet
Output Ports1 x PoE
Compatibility
  • Wireless Access Points
  • Pan-Tilt Zoom (PTZ) Cameras
  • IP Terminals
  • Network Devices
Length3.1"
ManufacturerMicrochip Technology Inc.
Product ModelPD-9501GCI/DC
Product NamePD-9501GCI/DC PoE Injector
Manufacturer Part NumberPD-9501GCI/DC
Manufacturer Website Addresshttp://www.microchip.com
Marketing Information

The Microchip PD-9501GCI is a single-port high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W the 9501GCI enables remote power for a new range of applications including wireless access points Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.

Limited Warranty3 Year
Additional Information
  • No. of Ports 1
  • Data Rates 10/100/1000 Mbps
  • Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-) 3/6 (+) 4/5 (+) 7/8 (-)
  • Input Power Requirements DC Input Voltage: 20 to 60 Vdc
  • Connectors Shielded RJ-45 EIA 568 A and 568 B
  • Environmental Conditions Operating Ambient Temperature: -40ºF to +167ºF (-40ºC to +75ºC)
  • Storage Temperature: -40ºF to +185ºF (-40ºC to +85ºC)
  • Reliability MTBF: 170000 hrs. @25ºC
  • Thermal Rating 32BTU/Hr @60 Vdc

Indicators:

  • Power 1 - Power 1 Source is connected
  • Power 2 - Power 2 Source is connected
  • Alarm - One of Power 1 or Power 2 sources is faulty
  • PoE - PoE is active and delivering power
Weight (Approximate)13.12 oz
Input Ports1 Gigabit Ethernet
Output Ports1 PoE
View full details
