Structural Features

• Breakthrough design provides more useable rack height - for example the 45 space version is shorter than 44 space alternative models

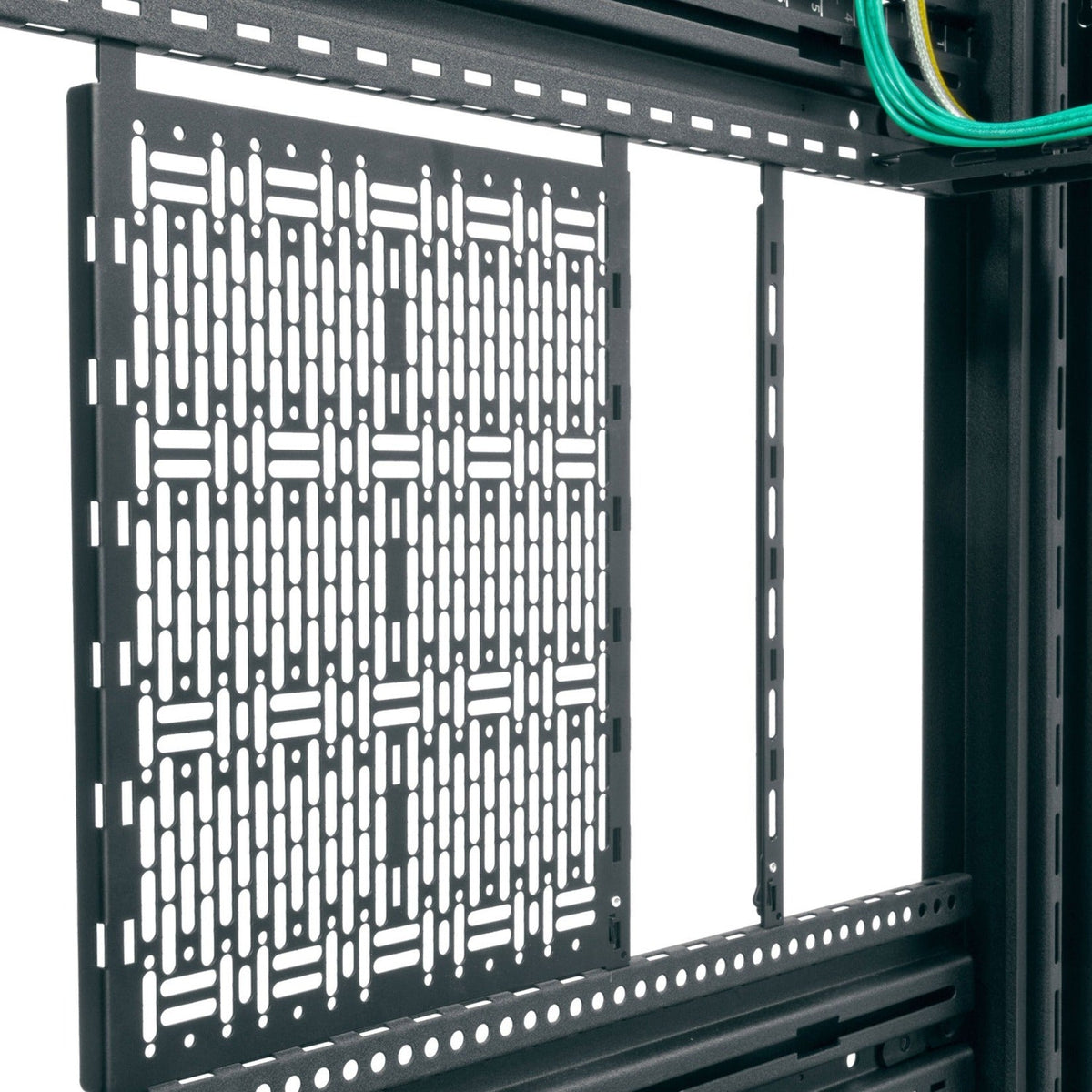

• Accepts patent-pending LeverLock™ system accessories for fast flexible cable management and mounting of small devices such as interface boxes power supplies and relay modules
• Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depth

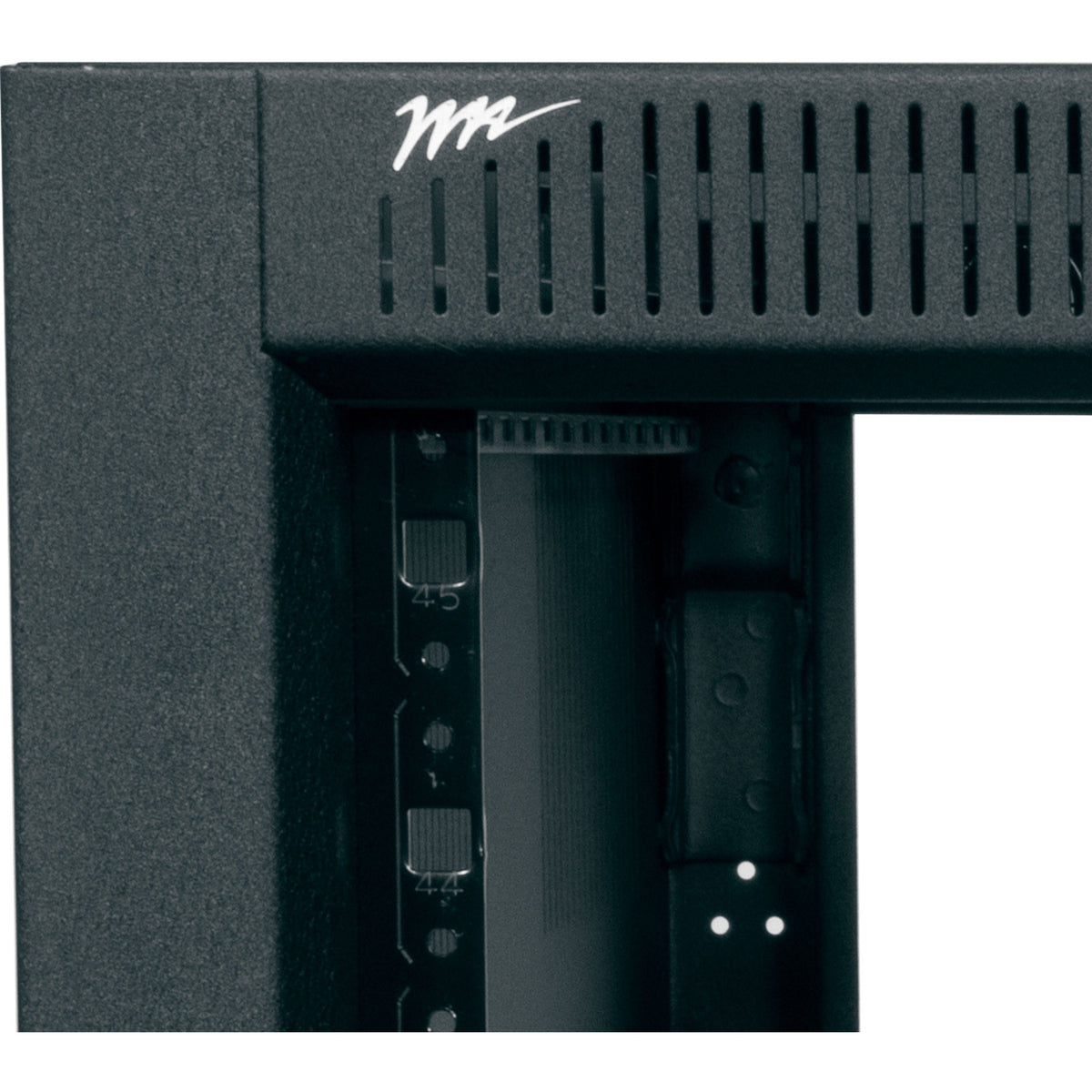

• Standard front and rear adjustable wide heavy-gauge 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
• Wide open bottom accepts multiple base options
• Finished in a durable black textured powder coat

Thermal Management

• Top options include solid vented and thermostatically controlled fan tops
• Standard vented door accepts optional doors

Cable Management

• Accepts LeverLock™ system tool free cable management accessories

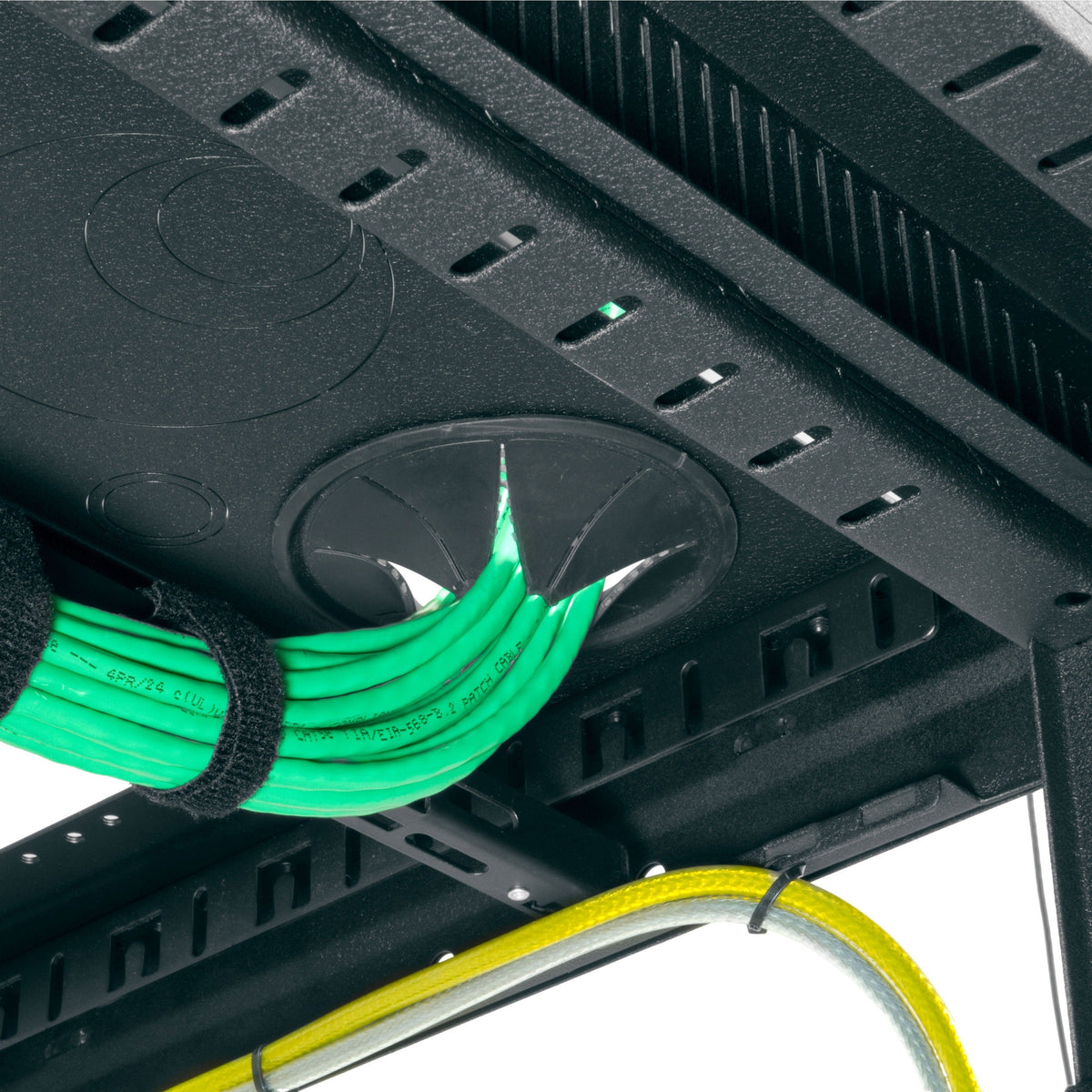

• Cable entry choices include generous laser knockouts and choice of trade openings and/or grommetted pass-throughs

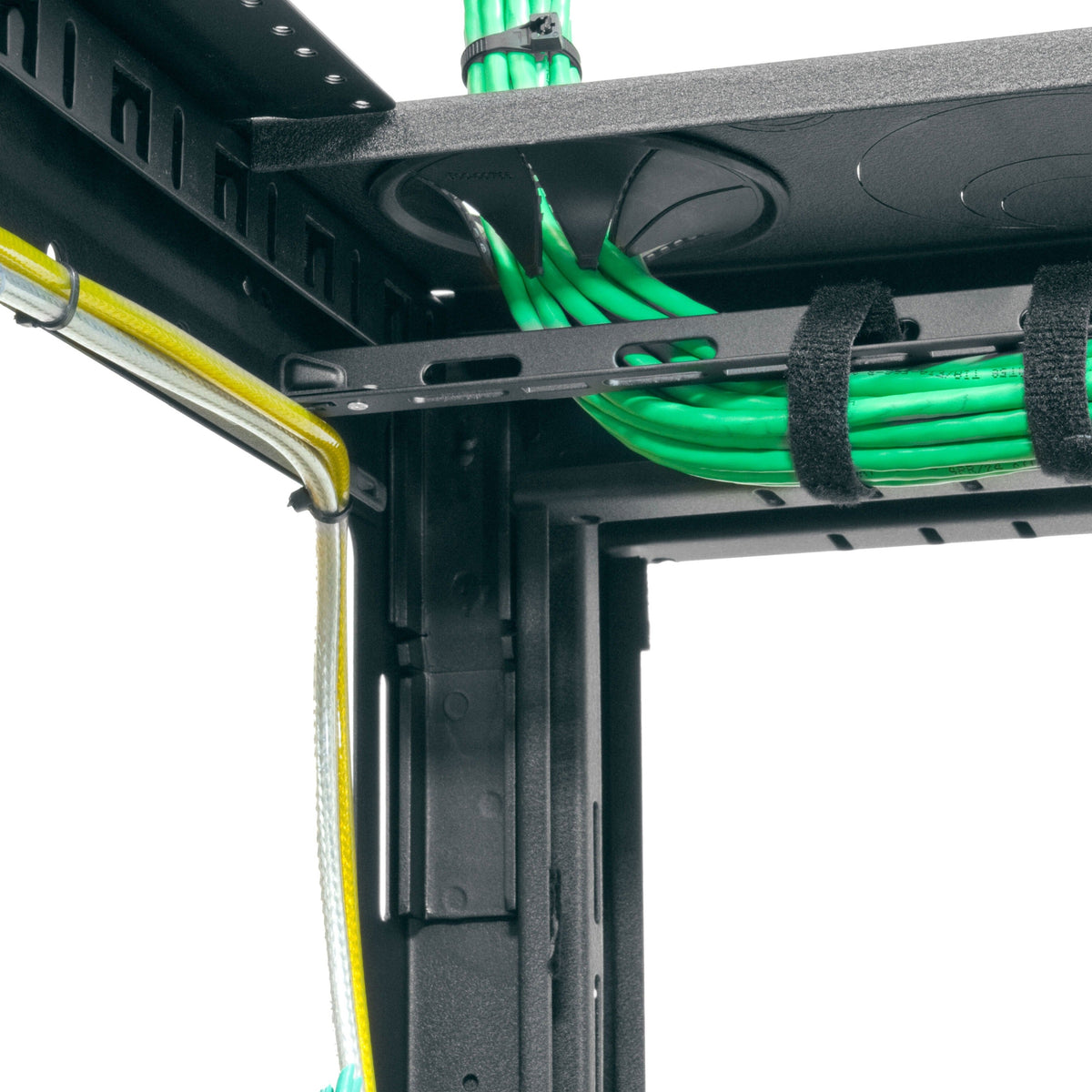

• The generous 21" wide top opening provides for full-width cable and conduit entry and includes vertical cable entry tie points on both sides
• Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing

• cUL
• EIA/TIA Compliant
• UL Listed

• 2007 & 2010 CBC
• 2006 2009 & 2012 IBC
• ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000
