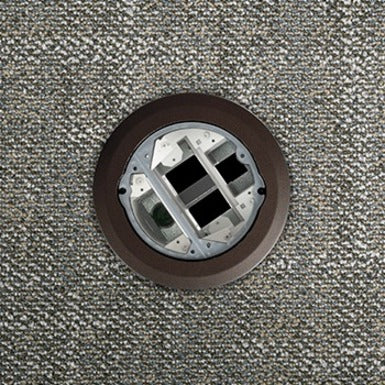

• Middle Atlantic Evolution 6ATCFF Poke Thru Device
    Middle Atlantic Evolution 6ATCFF Poke Thru Device
  • Middle Atlantic Evolution 6ATCFF Poke Thru Device
  • Middle Atlantic Evolution 6ATCFF Poke Thru Device
1 3

Middle Atlantic Evolution 6ATCFF Poke Thru Device

Middle Atlantic Evolution 6ATCFF Poke Thru Device

SKU: 1059640567      MFR: Legrand Group

GTIN: 786564060260

Product Description

Middle Atlantic Evolution 6ATCFF Poke Thru Device - Bronze Powder Coat - Aluminum

Manufacturer : Legrand Group

Manufacturer Part No : 6ATCFFBZ

Product Details

Product TypePoke Thru Device
Environmentally FriendlyYes
Environmental CertificationRoHS
ColorBronze Powder Coat
Product Series6AT
Brand NameMiddle Atlantic
ManufacturerLegrand Group
Product NameEvolution 6ATCFF Poke Thru Device
Product LineEvolution
Manufacturer Part Number6ATCFFBZ
Manufacturer Website Addresshttp://www.legrand.us
Marketing InformationFor carpet tile wood and laminate concrete floor coverings. For use in 6" (152mm) diameter opening. Devices are recessed 3 1/4" (83mm) below floor surface. Die-cast aluminum cover assembly provides one (1) 3/4" trade size screw plug opening and one (1) concentric 2"-1 1/4" trade size screw plug opening and is available in the following powder coated finishes: (BK) black (GY) gray (NK) nickel (BS) brass and (BZ) bronze. INCLUDED: For Side Compartments: No Device Plates are provided. For Center Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5PTHA 1/2-Gang Pass-Through Housing Assembly One (1) 5FFHA 1 1/2-Gang Pass-Through Housing Assembly One (1) 575CHA 1/2-Gang 3/4" Conduit Housing Assembly (also includes junction box attached to the 3/4" conduit). NOTE: UL Fire Classified for up to 2-hour rated floors.
  • Aluminium cover assemblies: The Evolution Series poke-thru design includes all metal die-cast aluminium cover assemblies with two unique spring-loaded slide egress doors. Available in surface style and flush style in standard finishes of brass gray black nickel bronze and aluminium offering a wider range of aesthetic options.
  • Added furniture feed capacity: The 6ATCFF Series Poke-Thru Device offers the largest dual service furniture feed capability on the market.
  • TopGuard Protection: All Evolution Series Poke-Thru Devices like every Wiremold/Legrand Poke-Thru Device meets and exceeds UL scrub water exclusion requirements for tile carpet and wood covered floors.
  • Meets ADA Accessibility Guidelines: Wide trim flange is designed to meet the ADA Accessibility Guidelines as it pertains to ADA Standard 4.5 which addresses changes in floor and ground surface levels. The poke-thru trim flanges are beveled so the slope is no greater than 1:2 ratio.
  • Suitable for use in air handling spaces: In accordance with Sec 300-22(C) of the National Electrical Code.
  • "Step-on-it" installation: Quick and easy installation without the need for additional fasteners or a second installer.
  • UL Listed and UL Fire Classified to U.S. and Canadian safety standards: UL Fire rated for up to 2-hour rated floors maintains the fire classification of the floor.
Package Contents
  • 1 x 3/4" Trade Size Screw Plug Opening
  • 1 x Concentric 2"-1 1/4" Trade Size Screw Plug Opening
  • 1 x 5PTHA 1/2-Gang Pass-Through Housing Assembly
  • 1 x 5FFHA 1 1/2-Gang Pass-Through Housing Assembly
  • 1 x 575CHA 1/2-Gang 3/4" Conduit Housing Assembly
  • Junction Box Attached to the 3/4" Conduit
MaterialAluminum
