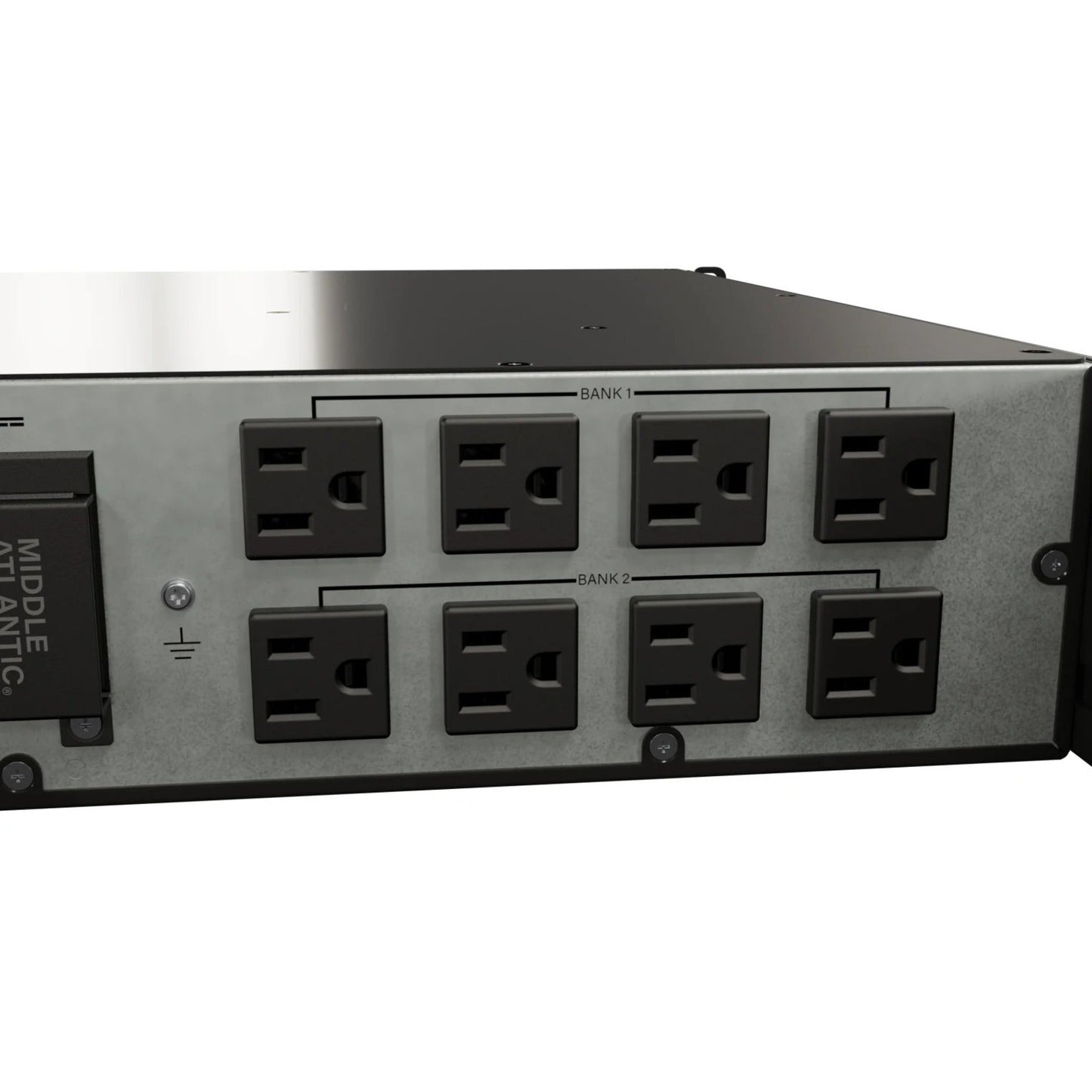

Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS

Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS

SKU: 1077015666      MFR: Legrand Group

GTIN: 656747395611

Product Description

Middle Atlantic NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS - Rack-mountable - AVR - 8 Hour Recharge - 3 Minute Stand-by - 120 V AC Input - 110 V AC 120 V AC 127 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display - 8 x NEMA 5-15R

Manufacturer : Legrand Group

Manufacturer Part No : UPX-RLNK-1500R-2

Features

  • 8 outlets
  • Bank Controlled option with (2) 4 outlet banks
  • Individually Controlled options for all 8 outlets via RackLink™
  • All NEXSYS UPSs have a Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment especially the most sensitive equipment
  • Everything is assembled and connected right from the factory saving you time during your installations
  • Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
  • The battery is already connected so just plug it in
  • The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications
  • The NEXSYS UPSs are RackLink compatible for remote monitoring and management and some are compatible right out of the box! Look for RLNK in the part number. Use the RackLink Discovery Tool on your on PC Apple or Android devices and connect directly to the UPS
  • Set reminders or notifications for things like battery replacement etc. via email or on the UPS

Product Details

Product TypeLine-interactive UPS
Receptacle TypeNEMA 5-15R
Product FamilyNEXSYS
Backup/Run Time (Half Load)10 Minute
Backup/Run Time (Full Load)3 Minute
Load Capacity (VA)1500 VA
Energy StarYes
AVRYes
Product ColorBlack
Load Capacity (W)1350 W
Brand NameMiddle Atlantic
Plug/Connector TypeNEMA 5-15P
Input Voltage Range80 V AC - 158 V AC
Form FactorRack-mountable
Waveform TypePure Sine Wave
Application/UsageBank
Hot SwappableYes
Input Voltage120 V AC
Battery ChemistryLead Acid
Additional Warranty Information2 Years Battery
Input Frequency60 Hz
Battery Size12V
Environmentally FriendlyYes
Environmental CertificationREACH
Battery Capacity9000 mAh
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries3
Battery CharacteristicsMaintenance-free Sealed
DC System Voltage36 V DC
EPO PortYes
Operating Humidity0% - 95%
Storage Temperature5°F (-15°C) - 113°F (45°C)
Transfer Time10 ms
Typical Battery Recharge Time8 Hour
Receptacle Detail8 x NEMA 5-15R
Height3.4"
Width17.3"
Depth17.3"
Output Frequency60 Hz
AlarmOn Battery
Status IndicatorsLED Indicators:
  • Normal Mode
  • AVR Mode
  • Battery Mode
  • Internal Fault
  • Battery Fault
Load Capacity1500 VA/1350 W
ManufacturerLegrand Group
Product ModelUPX-RLNK-1500R-2
Product NameNEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS
Product LineNEXSYS
DisplayLCD
Surge Energy Rating1000 J
Manufacturer Part NumberUPX-RLNK-1500R-2
Manufacturer Website Addresshttp://www.legrand.us
Sound Emission45 dB
Package Contents
  • NEXSYS UPX-RLNK-1500R-2 1500VA Rack-mountable UPS
  • 6' (1.8m) IEC Power Cord
Limited Warranty3 Year
Output Voltage110 V AC
Weight (Approximate)44.09 lb
