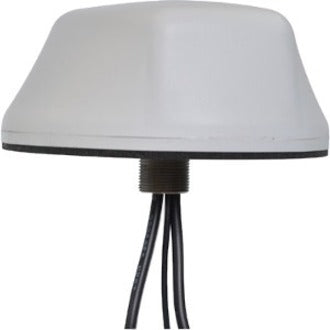

Mobile Mark's LTM302 Series Multiband Diversity/MIMO antenna
contains three separate antennas all in one compact antenna housing:
two identical LTE/Cellular antennas and one GPS antenna. The
LTE/Cellular element is broadbanded enough to cover all LTE frequencies
worldwide through 3700 MHz.

LTE MIMO (multiple-input-multiple-output) modems offer greater
speed and capacity than earlier generations of modems. In order to
ensure optimum performance the LTE MIMO system needs multiple
antennas on both the transmission and receive ends. The LTM302
acheives this with two identical Cellular/LTE elements.

This 3-element LTM antenna is designed for fleet management
systems that combine a GPS receiver with a 2-element LTE MIMO
modem. For fleet management systems that add in a WiFi MIMO
modem the LTM502 isrecommended.

Measuring 5.5" (140mm) in diameter with a low profile of 2.38"
(60.4mm) LTM series antennas take up significantly less space than
multiple antennas. The radome is available in either black or white.
The antennas are available in either surface mount or mag-mount
models. The antennas can also be configured for combined GPS &
Glonass use.
