• MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX

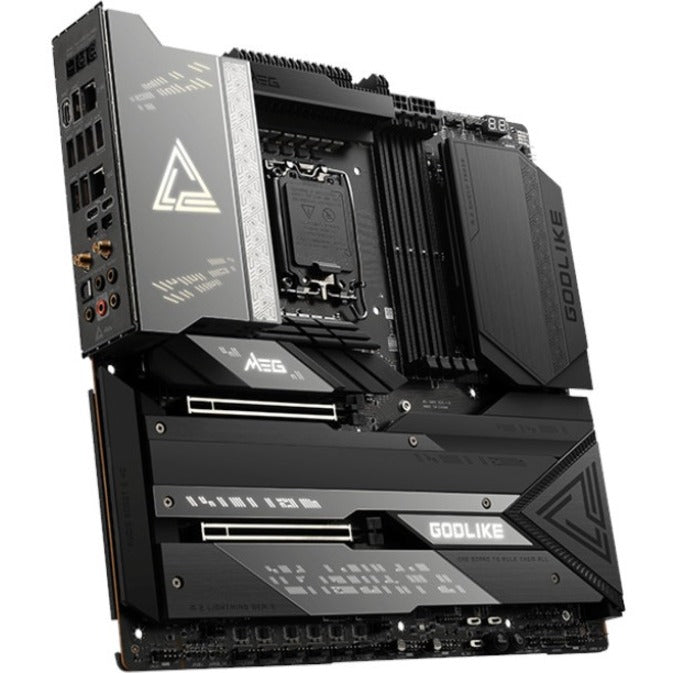

    MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
  • MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
  • MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
  • MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
  • MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX
1 5

MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX

MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX

SKU: 1076078815      MFR: MSI

GTIN: 824142305737

Product Description

MSI MEG Z790 GODLIKE Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - Extended ATX - Pentium Gold Celeron Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM DIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 6 x SATA Interfaces

Manufacturer : MSI

Manufacturer Part No : Z790GODLIKE

Features

  • Supports 12th/ 13th Gen Intel® Core™ Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory Dual Channel DDR5 7800+MHz (OC)
  • M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function but also allows system operation and customization with touch control.
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds 8K display support Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
  • Premium Thermal Module: Wavy fin design Direct Touch Cross Heat-pipe Aluminum Cover 7W/mK thermal pads Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
  • Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling making them run faster.
  • Latest Network Solution: Onboard 10G Super LAN Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
  • Lightning Fast Game experience: PCIe 5.0 slots Lightning Gen 5 x4 M.2 Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
  • DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr EZ M.2 Clips Smart Button Pre-installed I/O Shield Steel Armor Metal Backplate

Product Details

Product TypeGaming Desktop Motherboard
Bluetooth StandardBluetooth 5.3
Onboard VideoCPU Dependent Video
RAID SupportedYes
Number of Total Expansion Slots2
Number of PCI Express x16 Slots2
Number of Network (RJ-45) Ports2
DisplayPortYes
Total Number of USB Ports8
Total Number of Onboard USB Ports10
Number of Onboard USB 2.0 Ports4
PCI Express StandardPCI Express 5.0
Chipset ManufacturerIntel
Chipset ModelZ790
Number of Memory Slots4
Graphics Controller ManufacturerAMD
Audio Channels7.1
BluetoothYes
Gigabit EthernetYes
Wireless LANYes
Number of SATA Interfaces6
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
Total Number of PCI Express Slots2
Memory Speed Supported6600 MHz
Memory Speed Supported6400 MHz
Memory Speed Supported6200 MHz
Memory Speed Supported6000 MHz
Memory Speed Supported5800 MHz
Memory Speed Supported5600 MHz
Memory Speed Supported5400 MHz
Memory Speed Supported5200 MHz
Memory Speed Supported5000 MHz
Memory Speed Supported4800 MHz
Memory Speed Supported7800 MHz
Number of USB 3.2 Gen 2 Type-C Ports1
Number of USB 3.2 Gen 2 Type-A Ports7
2.5Gigabit EthernetYes
Number of Thunderbolt 4 Ports2
Processor Generation Supported13th Gen
Width12.2"
Depth12"
Memory TechnologyDDR5 SDRAM
Processor SocketSocket LGA-1700
Brand NameMSI
Form FactorExtended ATX
ManufacturerMSI
Product ModelZ790 GODLIKE
Product NameMEG Z790 GODLIKE Gaming Desktop Motherboard
Processor SupportedPentium Gold
Product LineMEG
RAID Levels10
ThunderboltYes
Memory Form FactorUDIMM
Number of M.2 Interfaces7
Brand CompatibilityIntel
Memory Speed Supported7600 MHz
Memory Speed Supported7400 MHz
Memory Speed Supported7200 MHz
Memory Speed Supported7000 MHz
Memory Speed Supported6800 MHz
RAID Levels1
Total Processor Supported1
Controller TypeSerial ATA/600
Manufacturer Part NumberZ790GODLIKE
Manufacturer Website Addresshttp://www.msi.com
Marketing Information

Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.

Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling making them run faster.

The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws provides the easiest way for M.2 installation

The patented magnetic M.2 Shield Frozr design enables true "wire-less" RGB function enhances the installation process and maximizes the storage performance.

Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.

Thunderbolt 4 brings USB-C at true 40 Gb/s speeds 8K display support Daisy-Chaining Multi-Port Accessory Architecture and USB 4.0 Compliant.

The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function but also allows system operation and customization with touch control.

ILLUSION LIGHTING

MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE but also reinforce the DIY and MEG spiri
Maximum Memory Supported128 GB
Package Contents
  • MEG Z790 GODLIKE Gaming Desktop Motherboard
  • M-Vision Dashboard
  • Wi-Fi Antenna
  • USB Drive
  • M-Vision Cable
  • 3 x Sata Cables
  • 2 x Thermistor Cables
  • 1 to 2 RGB LED Extension Y Cable
  • ARGB LED Extension Cable
  • 1 to 3 ARGB gen 2 Extension Cable
  • 2 x dp to Mini dp Cable
  • Ez Front Panel Cable
  • Metal Dragon Badge
  • M.2 Screw/Standoff Set/Ez m.2 Clips
  • Cable Stickers
  • Quick Installation Guide
  • European Union Regulatory Notice
S/PDIFYes
